Mod.
1092
DS1092-533A

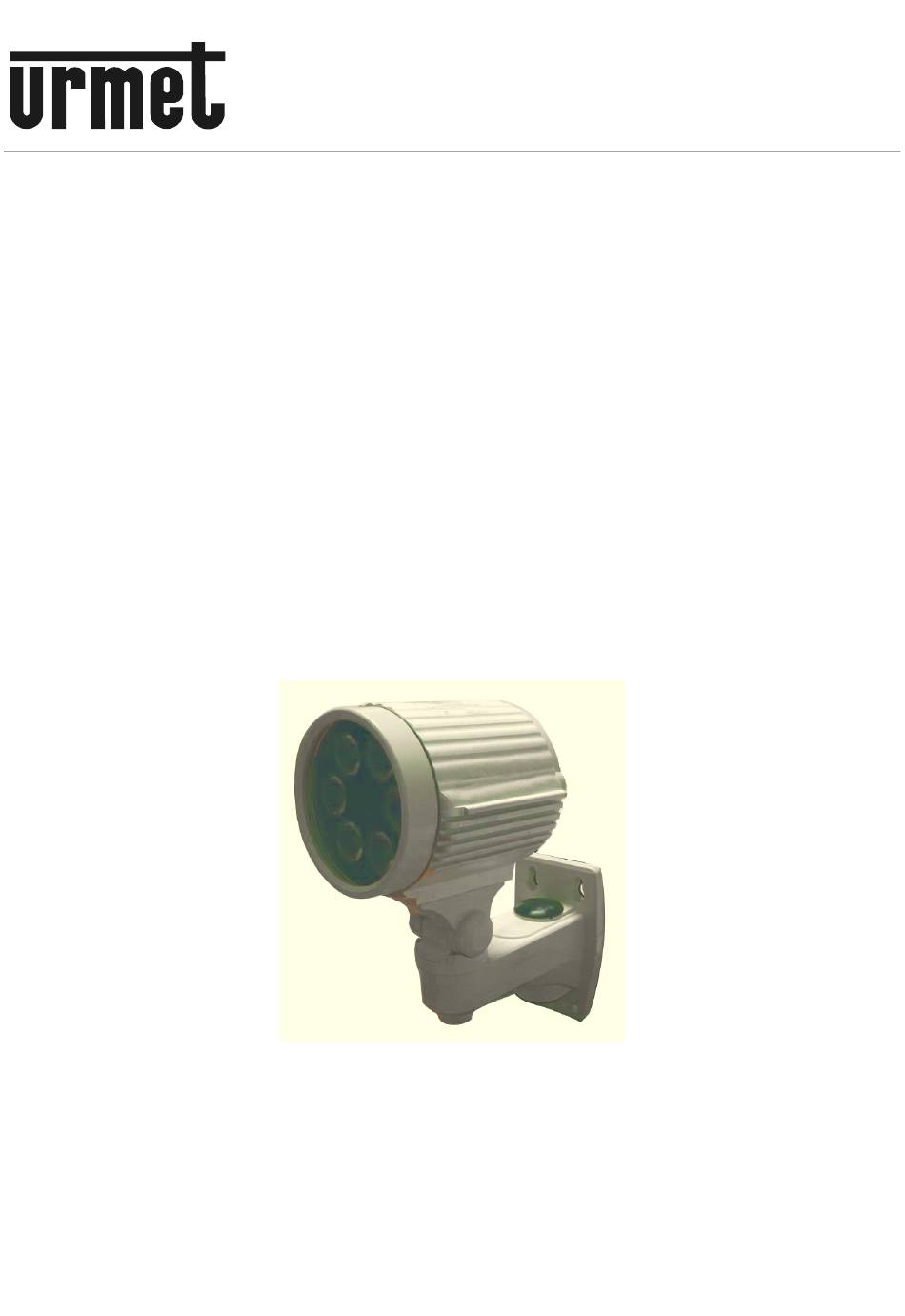

ILLUMINATORE IR DA ESTERNO
6 LED IR ALTA EFFICIENZA, 50m 45° - 70m 30°
IR LIGHT, OUTDOOR INSTALLATION,
6 HIGH-EFFICIENCY IR LEDs, 50m 45° - 70m 30°
PROJECTEUR INFRAROUGE EXTÉRIEUR,
50m 45° - 70m 30°
IR LED SCHEINWERFER, AUSSENINSTALLATION
6 HOCHEFFIZIENTE IR LED`S, 50m 45° - 70m 30°
FOCO INFRARROJO PARA EXTERIOR,
6 LED INFRARROJOS DE ALTA EFICACIA, 50m 45° - 70m 30°
Sch./Ref. 1092/895 - 1092/896
MANUALE D'USO
USER MANUAL
MODE D'EMPLOI
GEBRAUCHSANLEITUNG
MANUAL DE USUARIO

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1092/895 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for urmet domus 1092/895

  • Page 1 50m 45° - 70m 30° IR LED SCHEINWERFER, AUSSENINSTALLATION 6 HOCHEFFIZIENTE IR LED`S, 50m 45° - 70m 30° FOCO INFRARROJO PARA EXTERIOR, 6 LED INFRARROJOS DE ALTA EFICACIA, 50m 45° - 70m 30° Sch./Ref. 1092/895 - 1092/896 MANUALE D’USO USER MANUAL MODE D’EMPLOI GEBRAUCHSANLEITUNG...
  • Page 2: Caratteristiche Tecniche

    Infrarosso: ..........................IR LED 850um Angolo di apertura: ......................... 45° - 1092/895 ............................... 30° - 1092/896 Portata: ....................tipica = 35m, MAX = 50m - 1092/895 ......................tipica = 60m, MAX = 70m - 1092/896 Temperatura di utilizzo: .........................-10÷+50°c Temperatura d’immagazzinamento: ....................-30÷+60°c CDS (sensore crepuscolare): ......
  • Page 3: Installazione

    NORME D’INSTALLAZIONE • E' opportuno prevedere a monte degli apparecchi un idoneo interruttore di sezionamento e di protezione. • Prima di collegare l'apparecchio alla rete di alimentazione accertarsi che i dati di targa siano rispondenti a quelli della rete di distribuzione. INSTALLAZIONE •...
  • Page 4: Technical Specifications

    Product specifications may be subject to change without prior notice. ACCESSORIES • N°1 box with allen wrench. • Instruction manual. Important note: Accessories may be changed without prior notice. It is suggested to use Urmet Domus Ref.1092/801 power supply (not provided). DS1092-533A...
  • Page 5: Installation Instructions

    INSTALLATION INSTRUCTIONS • Arrange a suitable circuit breaker and fuse upstream of the devices. • Make sure that the rating plate data corresponds to the power specifications before connecting the device to the mains. INSTALLATION • Make sure that no units are powered before starting the installation procedure.. •...
  • Page 6: Application Type

    Infrarouge: ..........................LEDs 850um Angle de couverture: ......................45° - 1092/895 ............................... 30° - 1092/896 Portée maximum: ................typique = 35m, MAX = 50m - 1092/895 ......................typique = 60m, MAX = 70m - 1092/896 Plage de températures de fonctionnement:..................-10÷+50°c Plage de températures de stockage: .....................-30÷+60°c...
  • Page 7: Modes De Fonctionnement

    SPECIFICATIONS D’INSTALLATION • Installez une protection par fusibles en amont de l’appareil. • Vérifiez que l’alimentation installée est du bon type : tension, puissance MODES DE FONCTIONNEMENT Eclairage par LEDs infrarouge La camera est équipée d’un capteur de luminosité qui déclenchera l’allumage des LEDs infrarouge. Le seuil d’allumage est fixé...
  • Page 8: Technische Eigenschaften

    TECHNISCHE EIGENSCHAFTEN Infrarot: ..........................IR LED 850um Öffnungswinkel: ........................45° - 1092/895 ............................... 30° - 1092/896 Reichweite: ..................typisch = 35m, MAX = 50m - 1092/895 ......................typisch = 60m, MAX = 70m - 1092/896 Betriebstemperatur: ........................-10÷+50°c Lagertemperatur: ...........................-30÷+60°c CDS (Helligkeitssensor): ... Interner Dämmerungsschalter, automatische Aktivierung unter 10 Lux Anzahl LED´s: ................
  • Page 9: Inhalt Der Verpackung

    Nr. 1 Innensechskantschlüssel. • Gebrauchsanleitung. Beachten Das Zubehör kann ohne Vorankündigung geändert werden. Zur Spannungsversorung wird das Netzgerät Urmet Domus TYP1092/801 empfohlen (nicht im Lieferumfang enthalten). INSTALLATIONSBESTIMMUNGEN • Es ist von Vorteil dem Gerät einen geeigneten Trenn- und Schutzschalter vorzuschalten.
  • Page 10: Especificaciones Técnicas

    Infrarrojo: ........................LED IR (infrarrojo) Ángulo de cobertura: ......................45° - 1092/895 ............................... 30° - 1092/896 Alcance ....................tipica = 35m, MAX = 50m - 1092/895 ......................tipica = 60m, MAX = 70m - 1092/896 Temperatura de funcionamiento: ....................-10 a +50 °C Temperatura de almacenamiento: .....................
  • Page 11: Instrucciones De Instalación

    • Manual de usuario. Nota: Los accesorios están sujetos a modificaciones sin previo aviso. Se recomienda el alimentador Ref.1092/801 de Urmet Domus (no suministrado). INSTRUCCIONES DE INSTALACIÓN • Coloque un interruptor automático y un fusible adecuados antes de los equipos.
  • Page 12 DS1092-533A URMET S.p.A. Area tecnica 10154 TORINO (ITALY) servizio clienti +39. 011.23.39.810 VIA BOLOGNA 188/C http://www.urmet.com Telef. +39. 011.24.00.000 (RIC.AUT.) e-mail: info@urmet.com DS1092-533A MADE IN CHINA +39. 011.24.00.300 - 323 Prodotto in Cina su specifica URMET Made in China to URMET specification...
