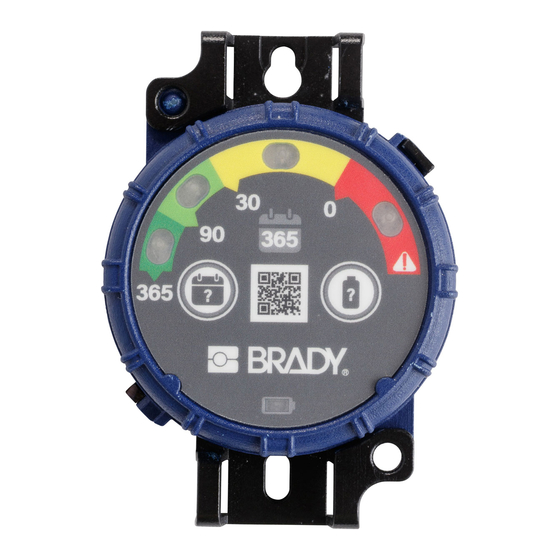

Brady 150744 Instruction Sheet

D
E
C
F
1
0
B
2
7
7
?
?
G
A I
H
3
1
0
2
7
?
?
1
0
2
7
?
?
1
0
2
7
?
?
1
0
2
7
7
?
?
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
operation.
CAN ICES-3(A) / NMB-3(A). Patent Pending. Made in China.
A
Calendar button
B
Dark green LED light
C
Light green LED light
Before Use
When first removing out of the box,
press and hold until all LEDs
?
?
flash. Now start / reset the timer.
Inspection Status
During the inspection period, the LED lights periodically flash to indicate the time remaining before an inspection
is due.
day left
1
• Dark green LED – beginning of inspection period, LED flashes every 2 minutes
• Light green LED – early in inspection period, LED flashes every 2 minutes
• Yellow (amber) LED – nearing end of inspection period, LED flashes every 10 seconds
• Red LED – inspection period has passed, LED flashes every 2 seconds
To manually check the time remaining before your next inspection:
1. Press and hold
2. LED for remaining time flashes for 5 seconds.
When the Red LED flashes, carry out your inspection and reset the timer (see Activation / Reset Timer). The red
LED flashes for 7 days. After 7 days, the device enters sleep mode to conserve battery life.
Battery Status
When the battery power is critically low,
To manually check the battery status:
1. Press and hold
2. LED light turns on to indicate the remaining battery life.
a. Dark green battery full
b. Light green battery good
Replace Batteries
The device is powered by (3) AAA Batteries. To replace the batteries:
1. Turn front face counter-clockwise to remove it from
back plate.
2. Remove old batteries.
3. To maintain the countdown time, install new batteries
within 45 seconds of removing the old batteries.
Attaching Timer to Item
Attach Timer by using:
• Cable tie (up to .30" width)
• #6 screw (3.5 mm)
• Adhesive backing
• Hook and loop
• Magnet
Brady Inspection Timer Instruction Sheet
D
Yellow (amber) LED light
E
Inspection interval (7, 30, 90, 180, 365 days)
F
Red LED light
3
2
1
0
2
1
7
?
?
for 2 seconds.
?
?
flashes red.
for 2 seconds.
?
c. Yellow (amber) replace batteries soon
d. Red replace batteries now
Lockout devices:
• Padlock
• Security seal
© 2019 Brady Worldwide Inc. ALL RIGHTS RESERVED
ENGLISH
G
Battery button
H
Replace battery indicator
I
Lockout device hole
Activate / Reset Timer
1. Press and hold and
?
on in sequence, release when red light
4
flashes. Countdown begins at dark
green light.
2. New countdown has started.
1
4. Place the front face on the back plate and turn
clockwise to complete battery replacement.
5. Press to re-enable power to the device. Check
?
calendar to ensure power has been restored.
6. If no light flashes, press and hold
7. Timer resumes the current time countdown.
www.BradyCorp.com/global
, lights turn
? ?
until all LEDs flash.
?
?
