- Page 1 OPERATING MANUAL SMP-1 PORTABLE SURFACE RESISTANCE PROBE Model SMP-1: Portable SR Probe Page 1...
-
Page 2: Table Of Contents
UNPACKING AND INSPECTION KIT CONTENTS WARRANTY INFORMATION SHIPPING OF WARRANTY RETURNS SHIPPING OF NON-WARRANTY RETURNS PRODUCT SPECIFICATION Model SMP-1: Portable Surface Resistance Probe INTRODUCTION CAUTIONS -- WARNINGS MODEL SMP-1: PORTABLE SURFACE RESISTANCE PROBE Pre-test Procedure: Test Procedures: CALIBRATION MAINTENANCE Page 2... -
Page 3: Unpacking And Inspection
UNPACKING AND INSPECTION Examine the shipping container for obvious signs of damage. If damage is suspected, open the container and inspect the instrument for possible damage. If damage is noted, notify the carrier and supplier (your local rep.) immediately. If instruments appear to be in good condition: Read the Operator’s Manual in its entirety. -
Page 4: Kit Contents
KIT CONTENTS Model SMP-1 Kit Consists of: • 1 Each SMP Probe Body • 2 Each Pogo Pins Installed • 1 Each Button Protective Sleeve • 1 Each Probe Cap Page 4... -
Page 5: Warranty Information
STATICO instruments will be free of defects in material (parts) and workmanship (labor). If STATICO receives notice of such defect during the warranty period, STATICO will replace at its expense such parts which it determines to be defective. -
Page 6: Shipping Of Warranty Returns
Name and phone number of contact individual who can provide more information. Complete return address SHIPPING OF NON-WARRANTY RETURNS Any product returned for non-warranty repair should be packaged as described previously. Obtain a Return Authorization Number and shipped to the address provided by STATICO Customer Service. Page 6... -
Page 7: Product Specification
PRODUCT SPECIFICATION METER Meter Colors Black Body Material Black ABS Power Supply PP3 - 9 volt Alkaline Test Voltage 9 volts nominal Operating Temperature to 110 Storage to 120 Operating %RH 0% to 75% (non condensing) Measurement Range ohms to 10 ohms Resolution 1 order of magnitude... -
Page 8: Model Smp-1

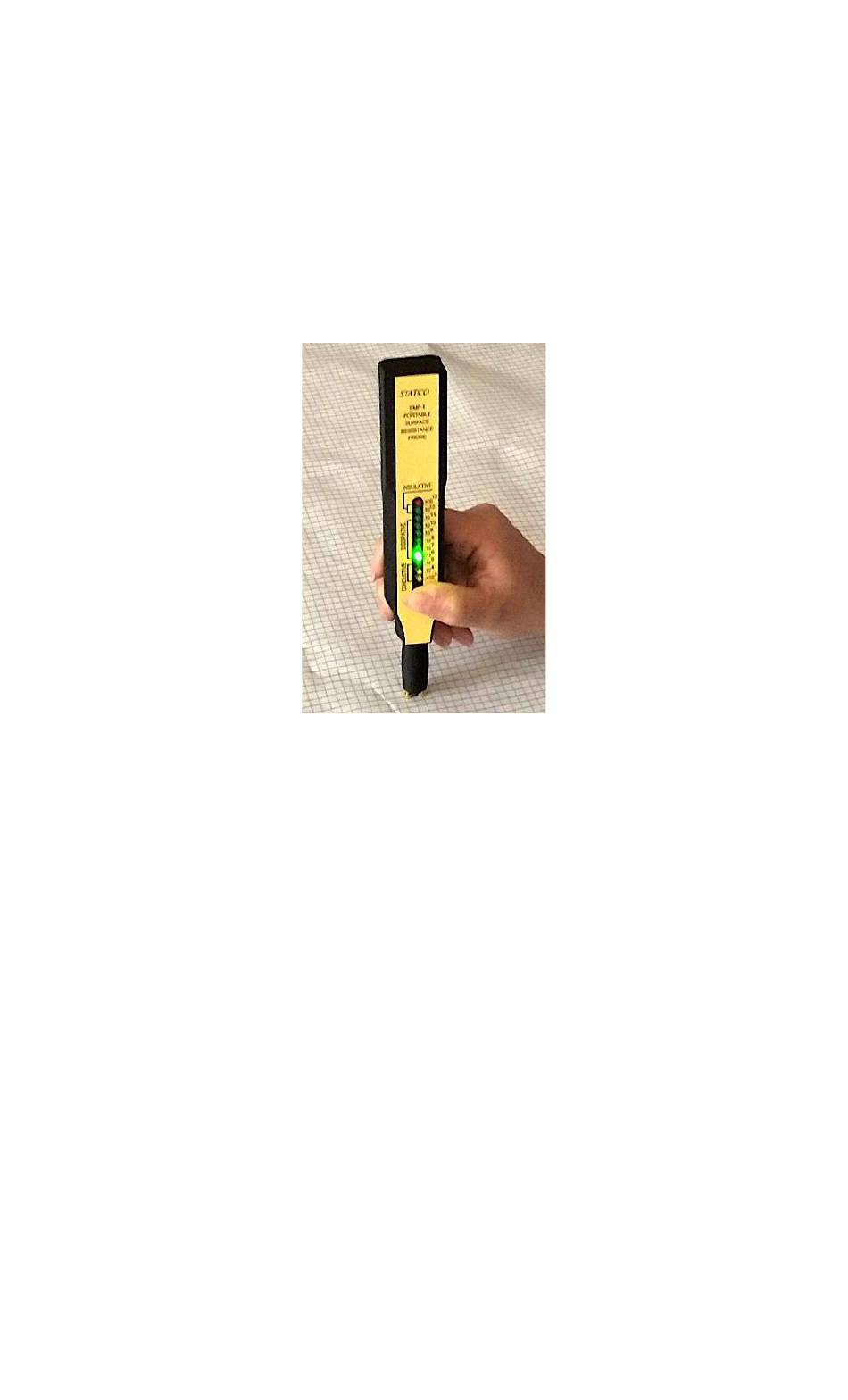

Model SMP-1: Portable Surface Resistance Probe INTRODUCTION The Model SMP-1 Portable Surface Resistance Probe works like other two-point Pen Probes without the need for a megohm meters, electrometers and other high potential resistance meters for measuring Surface Resistance of materials with physical dimensions too small for regular probes. -
Page 9: Cautions -- Warnings
Although the current capability is limited, a distinct HAZARD EXISTS in the person's reaction to the shock. To avoid personnel shock, do not touch the contact pins on the SMP-1, when the “TEST” button is depressed. Page 9... -
Page 10: Model Smp-1: Portable Surface Resistance Probe
MODEL SMP-1: PORTABLE SURFACE RESISTANCE PROBE Surface Resistance Measurement for Materials Introduction: Surface resistance measurements for planar material characterizes the ability of a planar (flat) sample to conduct electricity and electrostatic charge from one point to another along the top-most layer of the material. -
Page 11: Pre-Test Procedure
Pre-test Procedure: This procedure is designed to ensure that the probe has sufficient battery to perform the test correctly. Also, the Open-Short Test is done to make sure that the probe is in working order. 1. Remove the protective Cap from the probe. -
Page 12: Test Procedures
Test Procedures: Place sample to be tested on an insulative platform such as plastic or Teflon. 1. Remove the protective Cap from the probe. Slide the Button Guard toward the probe’s end to remove it. 2. Point the two Pogo Pin Probe onto the surface of the material to be tested. - Page 13 5. Read the Surface Resistance Range on the body of the probe. Page 13...
-
Page 14: Calibration
Keep probe in a dry and cool place when not used. Do not submerge probe in any liquid. Copyright © 2020 by STATICO. All rights reserved. Printed in the United States of America. No part of this manual may be used or reproduced in any manner whatsoever without written permission.
