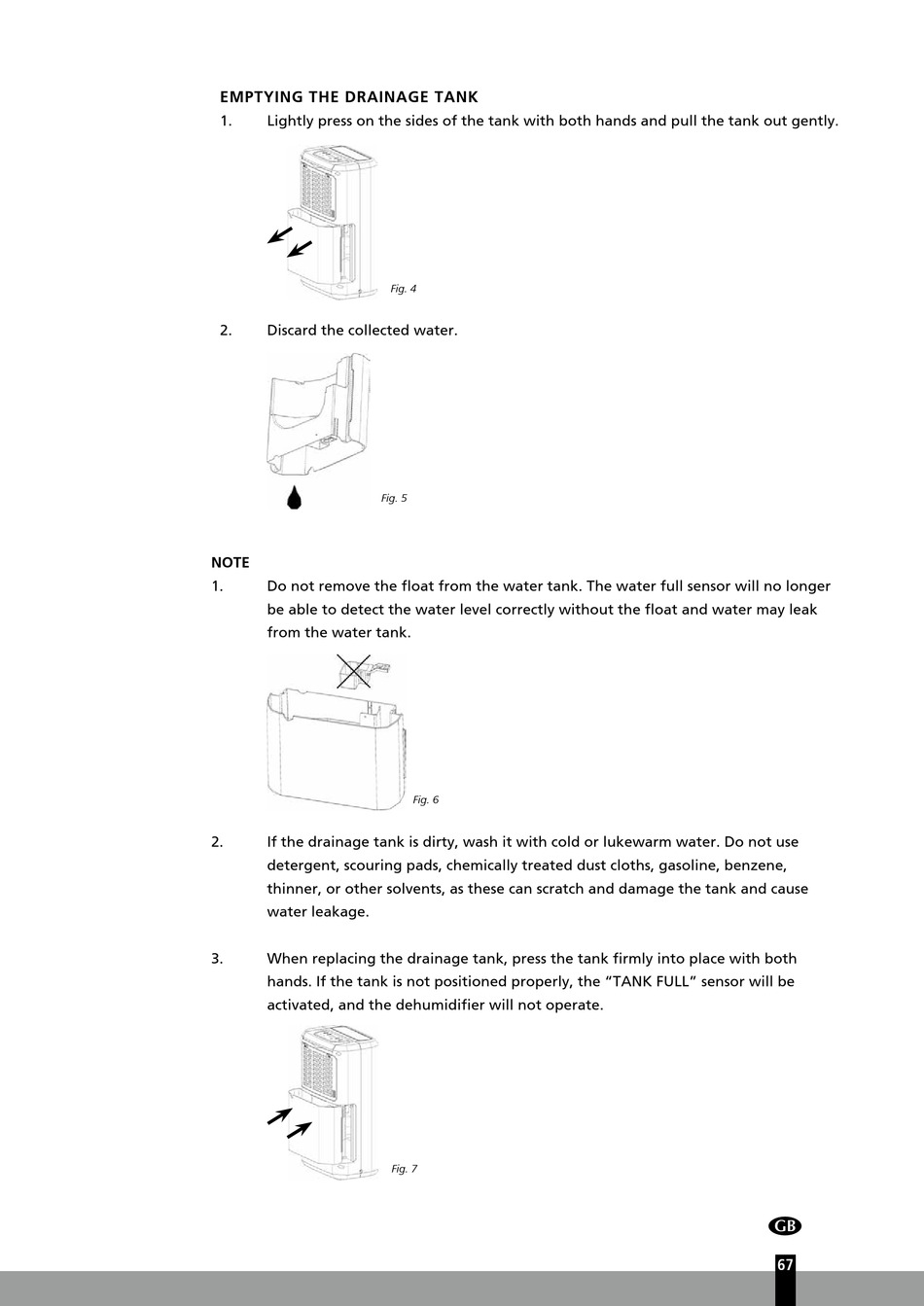

EMPTYING THE DRAINAGE TANK
1. Lightly press on the sides of the tank with both hands and pull the tank out gently.
2. Discard the collected water.
Fig. 5
NOTE
1. Do not remove the float from the water tank. The water full sensor will no longer
be able to detect the water level correctly without the float and water may leak
from the water tank.
2. If the drainage tank is dirty, wash it with cold or lukewarm water. Do not use
detergent, scouring pads, chemically treated dust cloths, gasoline, benzene,
thinner, or other solvents, as these can scratch and damage the tank and cause
water leakage.
3. When replacing the drainage tank, press the tank firmly into place with both
hands. If the tank is not positioned properly, the "TANK FULL" sensor will be
activated, and the dehumidifier will not operate.
Fig. 4
Fig. 6
Fig. 7
