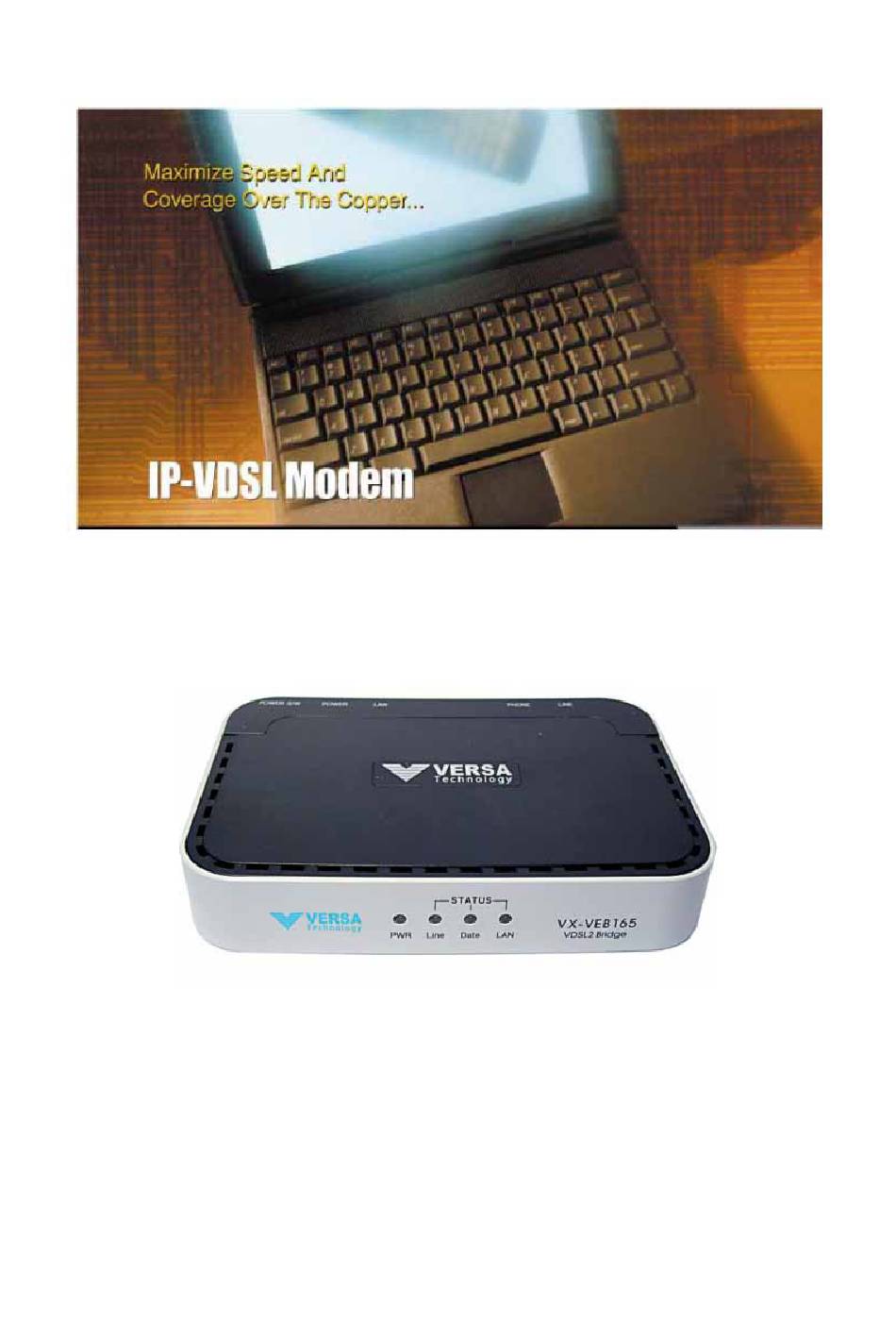

- Page 1 Manual Of IP-VDSL VX-VEB165...
- Page 2 This Modem made for Home application is registered on EMI/EMC, can be used for residential as well as out of residential Area This Manual on IP-VDSL VX-VEB165 MODEM describes how to install and operate it, your understanding and using for it is highly...
- Page 3 User manual of Modem Contents 1. Product Introduce 2. Packing contents confirmation of IP-VDSL VX-VEB165 3. Connect cables 4. System composition 5. Specification of IP-VDSL VX-VEB165...
- Page 4 User manual of Modem 1. Introductions IP-VDSL VX-VEB165 is MODEM providing very high speed Data Service and common Telephone Service to user through residential Telephone line. IP-VDSL VX-VEB165 is MODEM providing various Multi-media service such as high speed internet connection Internet Broad Casting, Remote Diagnosis, Monitoring conference, VOD etc..
- Page 5 User manual of Modem 3. Connect Cables Caution : Confirmation of power switch off VX-VEB165 MODEM, Before connecting the cables VDSL Line Connection (VDSL Port) Connecting the residential Telephone wire of using Telephone to Telephone socket of wall and IP-VDSL Port...
- Page 6 User manual of Modem 4. System Composition Front Name LED color Ability Green Lighting on connecting to correct power LINE Green Lighting on connecting VDSL LINK, Blinking on sending and receiving data DATA Green Lighting on connecting to VDSL Link, Blinking on sending and receiving data Green Lighting on connecting to Ethernet Link,...
- Page 7 User manual of Modem Back NAME Descriptions LINE VDSL Line Port Sending and receiving the VDSL data and connecting Telephone socket on the wall PHONE Telephone Connecting to Telephone through the micro connection port filters Ethernet port Connecting to LAN card of the PC using the straight type LAN cable DC 5V/2A Power input JACK...
- Page 8 User manual of Modem 5. Specifications of IP-VDSL VX-VEB165 Items Specifications Standard VDSL standards ETSI VDSL standard ITU ITU-T G.993.1 IEEE IEEE 802.3 10BASE-TX IEEE 802.3u 100BASE-TX Interface Ethernet Interface 10/100BASE-TX(IEEE 802.3 Auto-negotiation) Connector : RJ-45 VDSL interface Connector : RJ-11...
- Page 9 User manual of Modem VDSL Automatic setting of line speed Automatic setting(10/100BASE-TX Auto-negotiation) of port parameter Connector Two RJ-11 connector (LINE, PHONE) ONE RJ-45 connector(LAN) Power Input JACK (DC 5V 2A) POWER, LINK, DATA, LAN Environment Temperature : 0~50℃(in work), -40~70℃(in Keeping) Humidity : 5~90% Dimension Dimension :...
- Page 10 User manual of Modem Certification of Guarantee Name of Product IP-VDSL MODEM Name of Model IP-VDSL VX-VEB165 Serial Number Purchase Date Insurance Period 1 year Customer Name Address E-Mail Regulations of compensation for user Damaged MODEM shall be compensated under regulations of compensation...
- Page 11 CAUTION: Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user’s authority to operate the equipment WARNING This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
