- Page 1 PERM Set >2s OFF OPTICAL LASER SOURCE Fiber Testers OPTICAL LIGHT SOURCE Quick Start Guide V1.0...
- Page 2 fiber network testing. When combine with a power meter, it offers a quick and accurate testing solution on both single mode and multimode fibers. The figures below display the product images of the four optical light sources. PERM Set >2s OFF >2s PERM λ DUAL LASER SOURCE OPTICAL LASER SOURCE FOLS-201/FOLS-202 FOLS-203/FOLS-204...
- Page 3 Accessories FOLS-201/FOLS-202 SC Adapter x1 FC Adapter x1 FOLS-203/FOLS-204 SC Adapter x1 ST Adapter x1 FC Adapter x1 CD x1...
- Page 4 Installing Inserting FC Cables 1. Remove dust cap. 2. Install FC fiber cable.
- Page 5 Inserting ST Cables 1. Install ST connector. 2. Install ST fiber cable.
- Page 6 Inserting SC Cables 1. Install SC connector. 2. Install SC fiber cable.
-
Page 7: Function Introductions

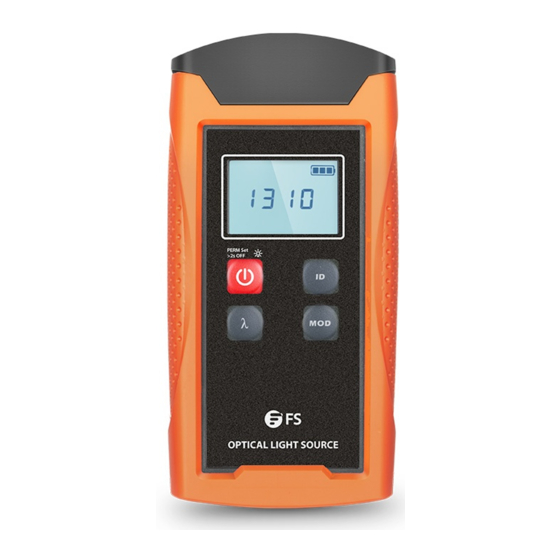

FOLS-201/FOLS-202 Function Introductions PERM Set >2s OFF OPTICAL LASER SOURCE Description Button Description PERM Set >2s OFF Power/Backlight Button Output Wavelength Shift Button Wavelength ID Button Load Modulation Button... - Page 8 Operation Instructions 1. Power On/Off and Auto-off Function Press button to turn on the instrument. Press it again for 2 seconds or more to turn off the instrument. This light source has a power-saving function. If 10 minutes without any operation, the instrument will automatically shut down.
- Page 9 FOLS-203/FOLS-204 Function Introductions >2s PERM λ DUAL LASER SOURCE Button Description >2s PERM Power Button Modulated Wavelength Shift Button Backlight Control Button λ Wavelength Shift Button...
- Page 10 Operation Instructions 1. Power On/Off and Auto-off Function Press button briefly. The instrument powers on. Press button briefly again. The instrument powers off. NOTE: Auto-off function (1) The instrument will power off automatically if 10 minutes without any operation. (2) While in the power-on state, press button for about 2 seconds to turn off...
-
Page 11: Maintenance
Contact Us Product Warranty FS ensures our customers that any damage or faulty items due to our workmanship, we will offer a free return within 30 Days from the day you receive your goods. Warranty: All Optical Light Sources enjoy 1 year limited warranty against defect in materials or workmanship. - Page 12 Q.C. PASSED Copyright © 2020 FS.COM All Rights Reserved.
