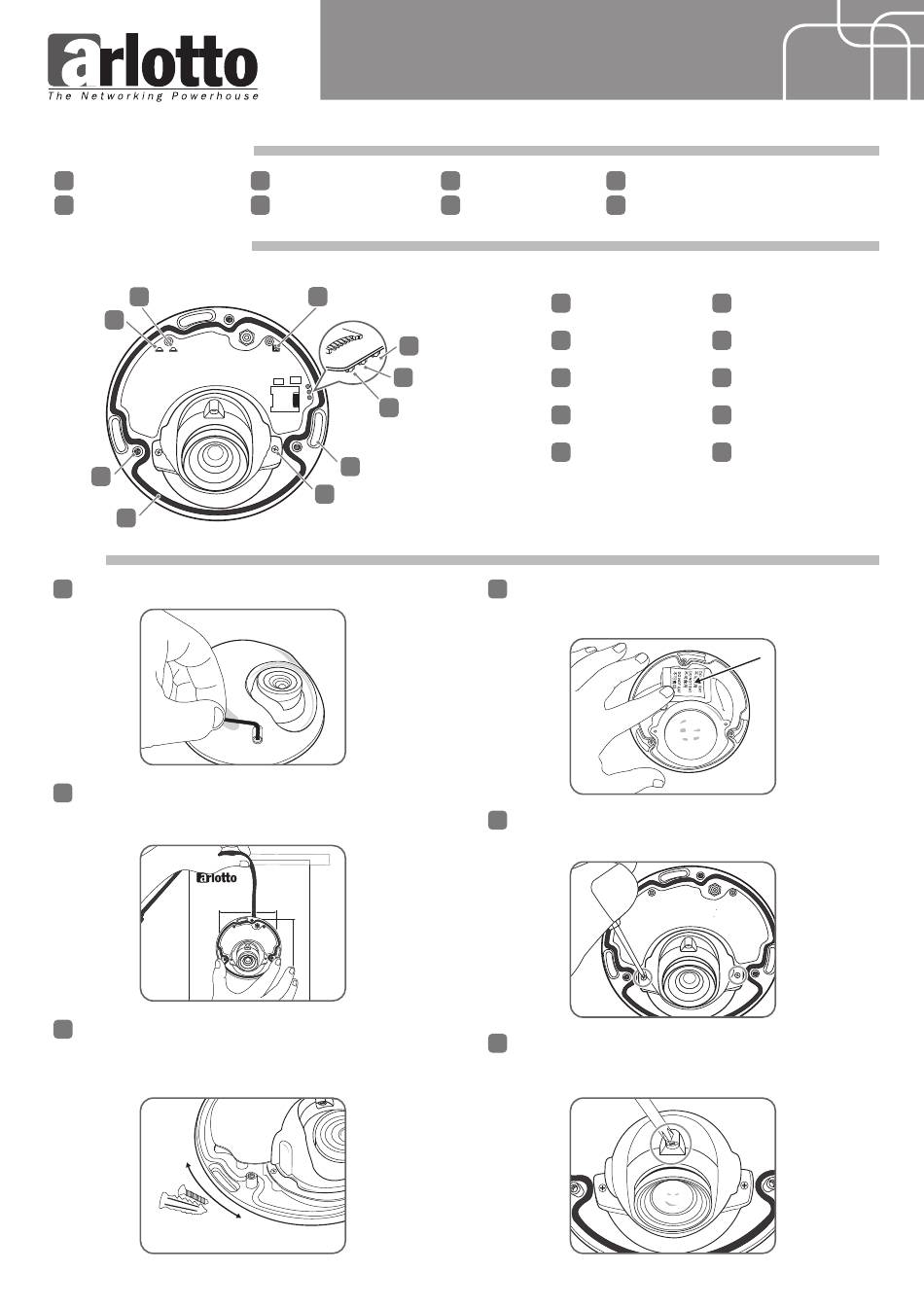

Arlotto AR3210P Quick Installation Manual

PACKAGING CONTAINS

1
Network camera
2
Desiccant sachet and sticker

CAMERA DESCRIPTION

Top View
10
9
8
7

SETUP

1
Remove carefully network camera cover screws with the Allen key.
2 Once the screws are removed take the camera, take the drill
pattern and locate it correctly in the desired area, please align
correctly the lens to the area you would like to monitor.
3 You would find the fixation anchors and screws, please fix
correctly the screws at 3 fixation areas. Once the camera is fixed
to the wall or ceiling there is still the chance to adjust better the
camera vision angle.
AR3210P/3510P Quick Installation Guide
3
Fixing anchors and screws
4
Allen key
1
2
3
4
5
6
5 7
Warranty document
6 8
Quick installation guide
1
Reset button
2
System status
3
Power on
4
Micro SD storage
5
Wall fix mount
4 Take the network camera cover and put it upside down, stick at
the cover back the double face tape and then open and stick the
desiccant pouch to it.
5 If you would need to change the position of the lens please
release the screws in each side of the lens holder as shown in the
picture.
6 You would be able to focus the lens by releasing the cross screw
in the top of the lens, once it is released please turn the lens until
get a sharp image.
Drill pattern
Plastic baseLens
6
Lens release mount
7
Silicone gasket
8
Cover screw
9
Ethernet activity LED
10
Ethernet link LED
