Summary of Contents for TECHFASS APS mini MDEM 31

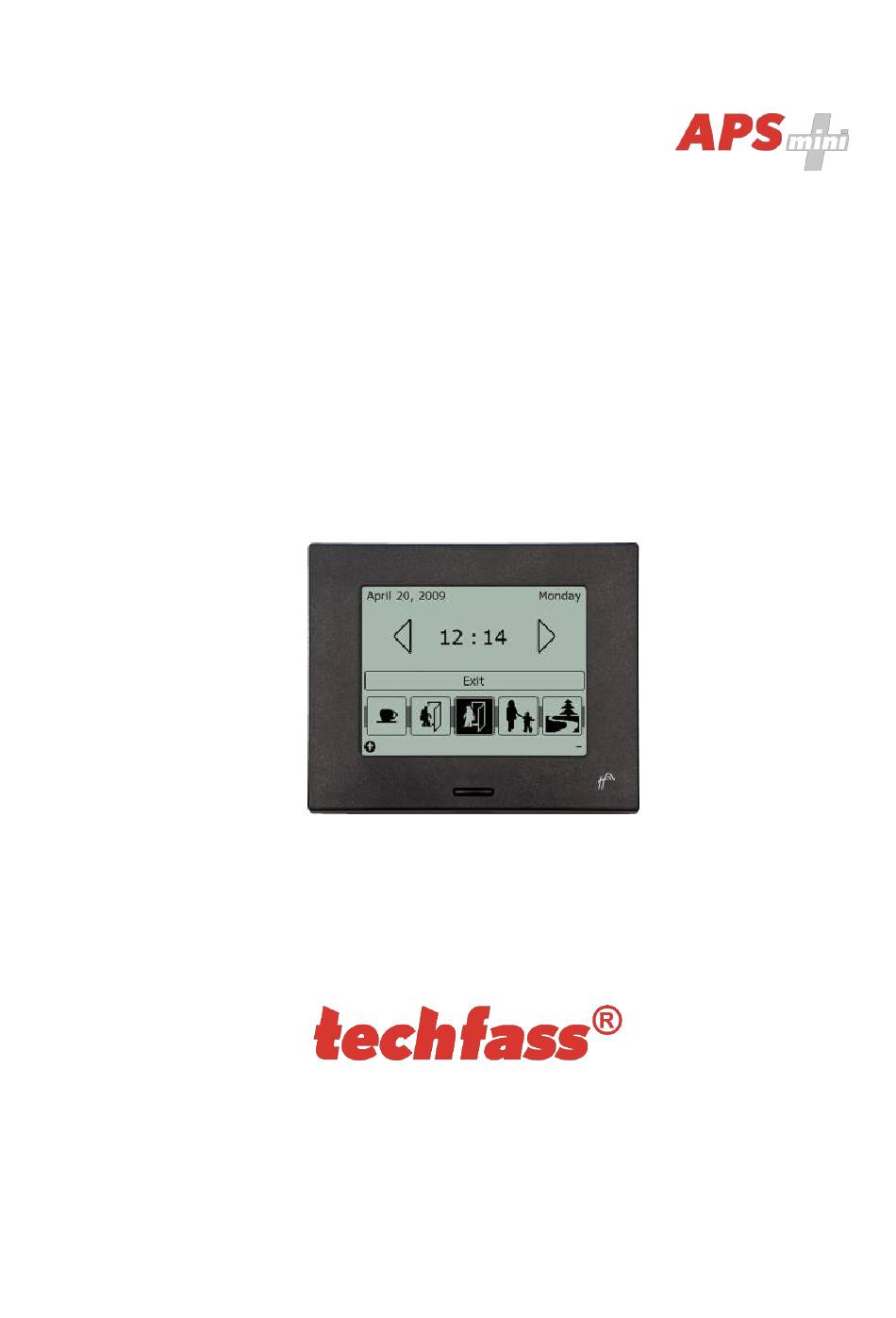

- Page 1 MDEM 31 T&A terminal for APS mini Plus system User’s guide © 2004 – 2019, TECH FASS s.r.o., Věštínská 1611/19, 153 00 Prague, Czech Republic, www.techfass.cz, techfass@techfass.cz (Date of release: 2019/06/03, valid for FW version 5.10)
-
Page 2: Table Of Contents
1 Content 1 Content ........................2 2 Product description ..................... 3 3 Technical parameters ....................3 Product version ....................3 Technical features....................4 Special accessories ..................... 4 Using WIO 22 module for remote output control ..........5 Mechanical design ....................5 4 Installation ........................ -
Page 3: Product Description
MDEM 31.IP – TF 53431100 ✓ ✓ ✓ MDEM 31.IP – EM 53431101 Table 1: Product version – IP version of the terminal with an Ethernet interface; –TECHFASS factory 125 – 125 kHz ID media reading; kHz ID media reading; Page 3... -
Page 4: Technical Features
3.2 Technical features 8 ÷ 18 VDC Supply voltage Typical 200 mA Current demand Maximal 350 mA 4’’ LCD touch screen, Display 320x240 pixels, black & white ID technology, EM Marin 8 cm (with an ISO card) typical reading range Real-time clock Yes, with a min. -
Page 5: Using Wio 22 Module For Remote Output Control
3.4 Using WIO 22 module for remote output control WIO 22 remote control WIEGAND relay module is designated for secure output control of APS system reader modules. The door open or other functions can be controlled from the module located inside the secure area, while the reader module can be located in the non- secure area. -
Page 6: Standard Connection
4.1.1 Wiring and jumpers description Grey Line terminator +8 ÷ +18 VDC power s. Idle state definition (A) Pink NO relay contact Yellow NC relay contact Idle state definition (B) Brown IN 1 Table 8: RS 485 BUS jumpers Orange IN 2 Blue C relay contact... -
Page 7: Mounting And Removal Of The Terminal
Nearby metal surfaces may cause a decrease in reading distance and speed. This is caused by the combined effects of parasitic capacitance and conductance. 4.4 Mounting and removal of the terminal The mounting suppose using a round or square installation box (Pic. -
Page 8: Terminal Functional Properties And Settings
The dismounting of the terminal is performed similarly. Open the unit using a screwdriver in the slot (1). Continue with an opposite procedure than performed when mounting the terminal. 5 Terminal functional properties and settings 5.1 Terminal control Pic. 4: MDEM 31 terminal control Page 8... - Page 9 5.1.1 Display description Symbol Meaning No ID read Read ID is unknown Read ID is invalid Read ID is valid less than 5 % of events buffer filled 5 ÷ 30 % of events buffer filled 30 ÷ 60 % of events buffer filled 60 ÷...
-
Page 10: Factory Defaults
5.2 Factory defaults Default factory parameters of TCP/IP interface are: • IP address: 192.168.1.253 • IP port: 10001 • Password: 1234 • Subnet mask: 255.255.255.0 • Gateway IP address: 192.168.1.1 These settings are available only when configuring the device via telnet terminal. These parameters can be set by pressing the RESET (tab. -
Page 11: Tcp/Ip Parameters Setting Via Telnet Terminal
5.3.3 Security screen At this tab of the configuration screen you can set up a new configuration password. Use arrows to set the password in the password and confirmation fields. After setting up the password, use the button to save the settings or the Cancel button to cancel all changes. - Page 12 5.4.4 Changing the password A change of the password is available after choosing the option 3 Set password. You can use any alphanumerical string as a password, it can contain up to 9 characters. A blank password is not allowed. The password is saved by pressing the Enter key.
-
Page 13: Setting Parameters Of The Terminal
Detailed instructions for setting terminal operational parameters are described in the configuration program user’s guide available address Reader http://www.techfass.cz/files/m_aps_miniplus_reader_en.pdf. 5.5.3 Display parameters setting Detailed instructions for setting the display parameters are described in the individual user’s guide available at the address configuration program MDEM 31 Configuration Tool http://www.techfass.cz/files/m_aps_miniplus_mdem31cfg_en.pdf. Page 13... -
Page 14: Terminal Functioning
6 Terminal functioning The terminal supports the following functions: • Standard “Door Open” function. • Door status monitoring. • Exit-devices contact monitoring. • Alarm output activated when any alarm condition occurs. • Storing a code of pressed button with the read ID in events memory. The “Door Open”... -
Page 15: Alarm States
6.3 Alarm states The reader module can get in 3 alarm states: • Tamper alarm (against tearing-off the wall and opening a cover) • Forced door alarm • Door ajar alarm Alarm state reporting is performed as follows: • Via communication line. •... -
Page 16: Standard Operating Modes
– in combined systems with WIEGAND output readers with a fixed user’s guide available at WIEGAND data format IDs (more information in APS Reader http://www.techfass.cz/files/m_aps_miniplus_reader_en.pdf). 6.6 Terminal operating modes 6.6.1 Wiegand output The terminal can be configured into a standard reader with a... -
Page 17: Module Advanced Function
(tamper signal = relay switched on) Table 17: Signal function in WIEGAND operating mode Since the FW version 5.09 the reading synchronization of a couple of TECHFASS readers implemented, enabling to cancel the mutual disturbance of the modules. The reader module offers the... -
Page 18: Id With Alarm Flag Function
6.9 ID with Alarm flag function This function is implemented since the FW version 5.0. Alarm – ID flag It is possible so set an for every stored in the module. When the ID is read, relevant alarm is raised (and the alarm output is switched for preset time). 6.10 Antipassback function This function is implemented since the FW version 5.0. -
Page 19: Disabling Function
The disabling status changes and disabled actions are logged in the events archive. 6.12 Reading synchronization Since the FW version 5.09 the reading synchronization of a couple of TECHFASS readers implemented, enabling to cancel the mutual disturbance of the modules. The reader module offers to use the IO synchronization MASTER mode. -
Page 20: Simplified Access Rights Evaluation
HOLIDAY? ACCESS ALWAYS GRANTED ACCESS GRANTED FOR ACTUAL DAY & TIME ACCESS GRANTED FOR HOLIDAY AND ACTUAL TIME INVALID VALID UNKNOWN Pic. 7: Simplified access rights evaluation 8 Useful links • Wiring diagrams: http://techfass.cz/diagrams-aps-mini-plus-en.html • Program equipment: http://techfass.cz/software-and-documentation-en.html Page 20...
