Summary of Contents for Smartek IPC-3600 Series

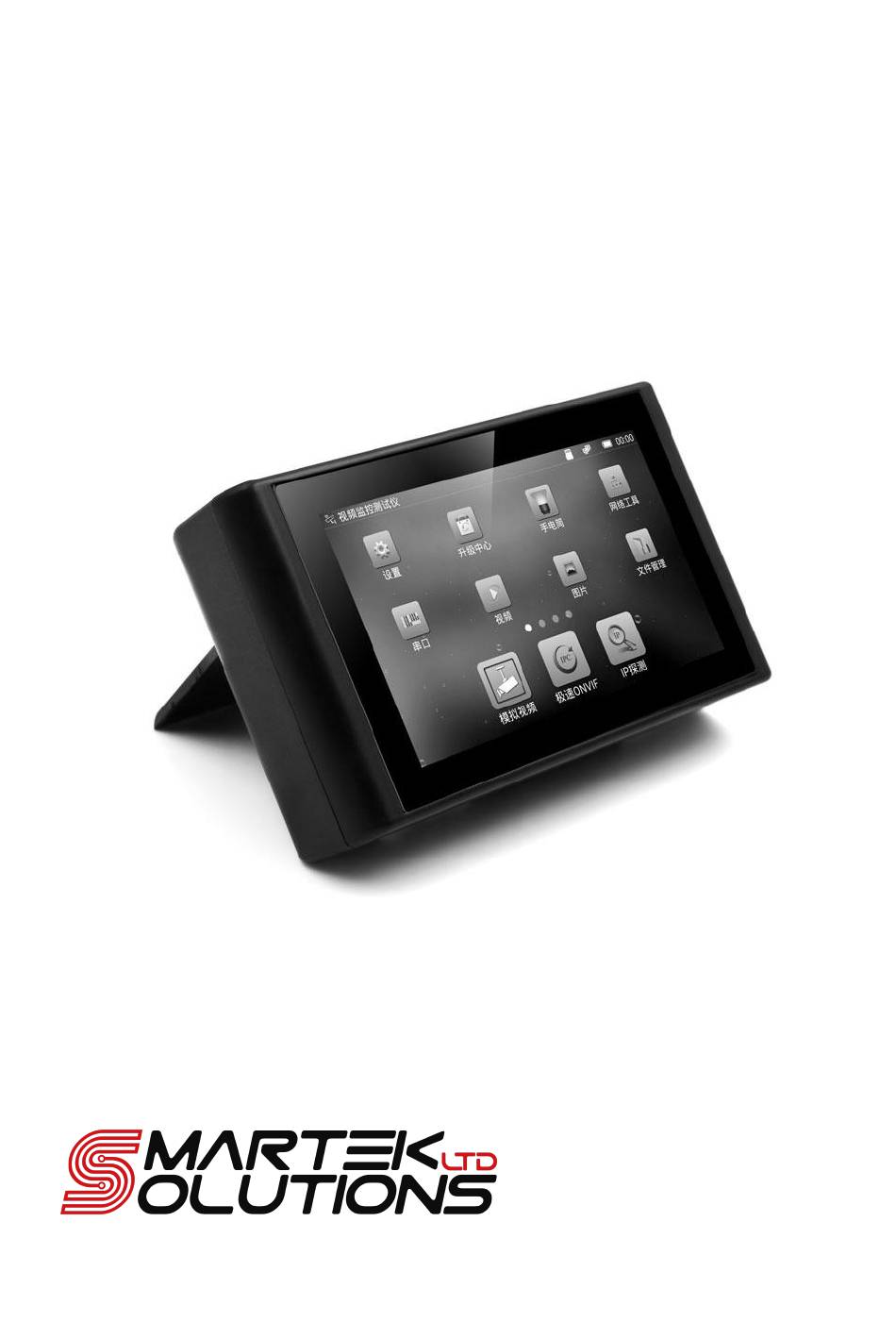

- Page 1 IPC-3600 Series Monitor Tester IPC 3600 Quick Start Manual...
-
Page 2: Symbolic Convention
Preface The purpose of this section is to ensure that users can use the product correctly through this manual in order to avoid danger or property loss in operation. Before using this product, please read the product manual carefully and keep it properly for future reference. Symbolic convention The meanings of symbols in this manual are as below: Symbolic... - Page 3 connected to cables with strong current. UTP Cable tracking port can not connect over DC 60V PoE switch. ● Please do not use the instrument while charging or it may shorten the battery life. ● This instrument is designed for security projects debugging,please do not use for ●...
-
Page 4: Table Of Contents
Table of Contents Preface............................- 1 - Symbolic convention......................- 1 - Cautions for safety use......................- 1 - Chapter 1. Product Description...................... - 4 - 1.1 Parameter table......................... - 4 - 1.2 Port description.........................- 5 - Chapter 2. Operation Guide......................- 6 - 2.1 System desktop.........................- 6 - 2.2 CVBS analog video input test .................. -
Page 5: Chapter 1. Product Description
Chapter 1. Product Description The instrument adopts a smart operation system, mainly used for the installation and maintenance of network monitoring cameras, analog video monitor cameras and other security monitoring devices, the instrument adopts a 4-inch HD IPS full view display screen, can clearly display the IP and analog camera video images. -
Page 6: Port Description
Built-in 3.7V polymer lithium battery, capacity 3000mAh, can work continually Battery for 6-8 hours Chinese Simplified, Chinese Traditional, English, Russian, etc. more than 10 Language languages Internal SD Storage Working Temperature -10℃--+50℃ Working Humidity 30%--90% External Size 137mm×83mm×35mm Weight 0.25kg 1.2 Port description RS485 Charging Indicator... -
Page 7: Chapter 2. Operation Guide
Chapter 2. Operation Guide 2.1 System desktop This instrument uses smart operation system, ensure that the lithium battery is installed correctly and has enough power, press the power button on the right side for 2 seconds to boot, waiting for system boot completion, then you enter the system desktop main menu, as shown in Figure 1 1) The upper right status bar icons represent the SD card status, network connection status, battery level, the upper left icons represent the current time and date, as shown in Figure 1... -
Page 8: Cvbs Analog Video Input Test
2.2 CVBS Analog Video Input Test 1) In the CVBS & HD main menu, touch CVBS icon to enter the application main interface, as shown in Figure 3 Figure 3 2) When connecting analog video signal to CVBS input port, it can display analog video image and format directly, as shown in Figure 4 Operation Instructions: 1. -
Page 9: Ip-Discovery
Operation: 1) Photo taking: touch the Snap icon to take photos, touch Photo icon to view the photos you just took. 2) Video recording: touch the Record icon to start recording, touch it again to end the recording, videos are stored as H264 format file, you can touch Playback icon to watch the video. 3) PTZ operation: select the PTZ button on the bottom center to turn on touch PTZ control, you can also use physical button to control, touch the PTZ icon, PTZ setting menu will pop up, by this menu you can set PTZ protocol, port, baud rate, address, horizontal speed, vertical speed,... -
Page 10: Rapid Onvif
Figure 6 2. You can choose which App to jump to play camera video by long pressing Rapid ONVIF button. Application settings, you can touch the App icon on top left to set. 2.4 Rapid ONVIF 1. Rapid ONVIF function enables you to view IP camera video quickly, as long as the camera IP and the instrument IP are in the same network segment and the camera supports ONVIF protocol, it can locate and play camera video quickly, after scanning for 1-2 seconds, for cameras do not require authentication, you can view the video image by touching the camera directly, for cameras... -
Page 11: Rtsp Player
2.Select the camera to operate, touch to view camera video directly 3.Photo taking, video recording, playback, full screen operation and image zooming functions please refer to CVBS analog video operation part. 4. Channel name setting, Touch ‘info’ button under the ONVIF interface, touch ‘OSD’ button at the bottom of this page to pop up channel name, date time editing dialog, if you cannot edit on this page, please go to corresponding camera client to operate, if there are no corresponding client, please use the browser to login camera configuration page to edit the value. -
Page 12: Rs485 Serial Tool
Figure 9 3. DHCP service enables you to assign IP address automatically for cameras which are in IP address automatic acquisition mode, touch ‘DHCP’ icon to enter the DHCP operation interface. 4. NET-port Blink function: Connect one end of the cable to LAN port, touch ‘Start’ button then you can see the port on network device blink regularly, it’s easy to find the other end of a cable by this function. -
Page 13: Coaxial Hd Function
Figure 10 2.8 Coaxial HD function AHD, TVI, CVI coaxial HD max resolution: HIKVISION TVI coaxial HD max 8MP resolution 3840X2156 15P DAHUA CVI coaxial HD max 8MPresolution 3840X2156 15P AHD coaxial HD max 5MP resolution 2560X1920 15P 2.9 Network Cable TDR Test Network cable TDR test function can display cable length, attenuation, quality, reflectivity, impedance parameters, etc. -
Page 14: File Management
Figure11 2.10 File management 1) File management function enables you to perform copy, move, rename or other operations for internal storage and external SD card files conveniently, when the instrument is connected to LAN, FTP function is also available, you can perform file operations directly on computer instead of pulling out SD card. -
Page 15: Browser
Figure 13 Figure 13 2.11 Browser 1) Browser function enables user to access the IPC camera directly through web page, touch the ‘Browser’ icon to enter browser function, input camera IP address directly in address bar to open the camera web page, as shown in Figure 23 (notice: all IPC testers in the market do not support installing plug-ins for browser). -
Page 16: Upgrade Center
2.12 Upgrade center Upgrade center is used for application management, you can install or uninstall Apps here, it supports to connect remote server to install online or install locally. 1. Management: you can view application version, the number under App name is current version number, touch the App to jump to corresponding manual, as shown in Figure 15 Figure 15 2. -
Page 17: Settings
Figure 17 2.13 Settings System setting function can set instrument parameters such as network parameter, WIFI, time, backlight brightness, volume, sleep time, languages, etc. you can also view the instrument system version information. Touch the ‘Set’ icon to enter system setting function Ethernet Settings: touch ‘Ethernet’... - Page 18 If you need to set instrument IP, touch ‘IP address’ to edit, you can also touch the icon on bottom center to set quickly 3. WLAN Settings Notice: Please pull out the network cable first if you want to use WIFI, or the instrument will use Ethernet by default Notice: WIFI hotspot and WIFI cannot be used at the same time 4.
