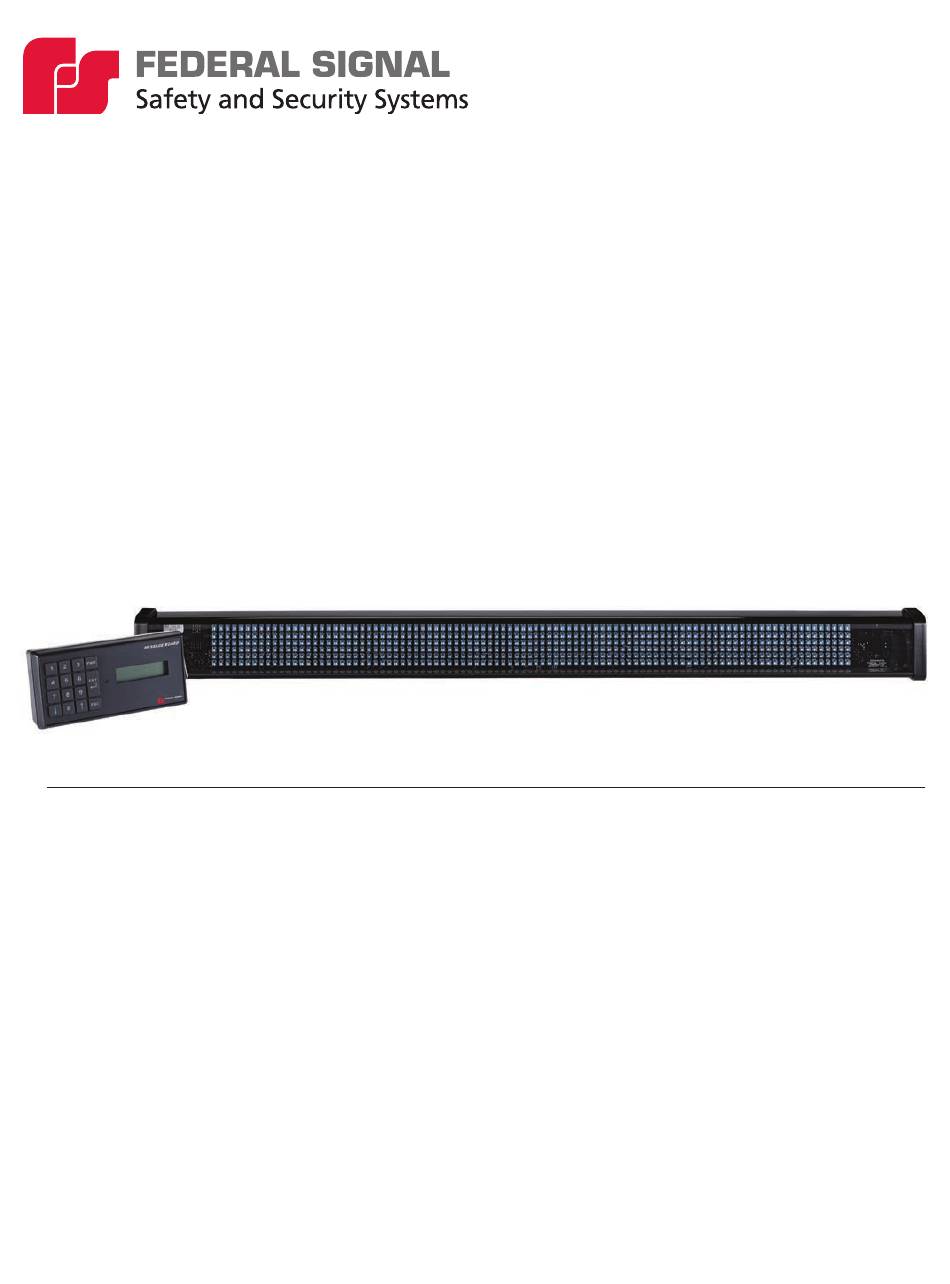

Model MB1

LED Message Board

Installation, Maintenance,

and Service Manual

25500112

REV. A1 0920

Printed in U.S.A.

Table of Contents

Need help?

Do you have a question about the MB1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Federal Signal Corporation MB1

Page 2 A copy of this limited warranty can also be obtained by written request to Federal Signal Corporation, 2645 Federal Signal Drive, University Park, IL 60484, email to info@fedsig.com or call +1 708-534-3400.
Page 3: Table Of Contents
Table of Contents Safety Message to Installers and Service Personnel of Warning Lights .......... 4 Overview of the Model MB1 LED Message Board ................6 Unpacking the LED Message Board ..................... 7 Mounting the LED Message Board ....................... 7 Wiring the LED Message Board System in the Vehicle ..............9 Wiring the Standalone-Mount Message Board .......................9...
Page 4: Safety Message To Installers And Service Personnel Of Warning Lights
• Do not attempt to wash any unsealed electrical device while it is connected to its power source. Model MB1 LED Message Board Federal Signal www.fedsig.com...
Page 5 Safety Message to Installers and Service Personnel of Warning Lights During Installation and Service • DO NOT get metal shavings inside the product. Metal shavings in the product can cause the system to fail. If drilling must be done near the unit, place an ESD-approved cover over the unit.
Page 6: Overview Of The Model Mb1 Led Message Board

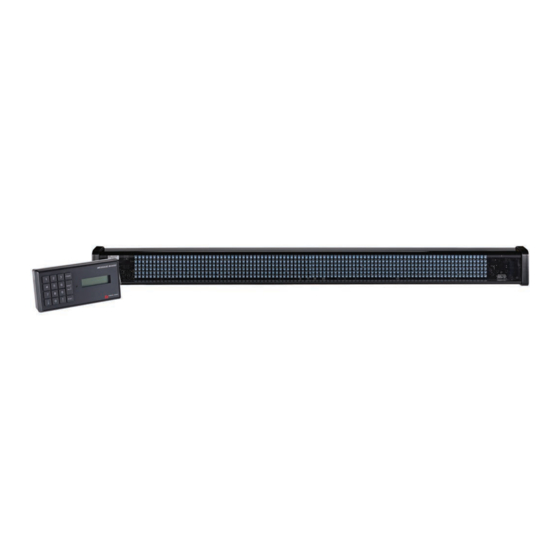

Overview of the Model MB1 LED Message Board Overview of the Model MB1 LED Message Board The Federal Signal LED Model MB1 Message Board is a supplemental messaging device. The 1.9 inch by 28.6 inch display is created by 772 blue, high brightness, wide angle LEDs.
Page 7: Unpacking The Led Message Board
Unpacking the LED Message Board Unpacking the LED Message Board After unpacking the LED Message Board, inspect it for damage that may have occurred in transit. If it has been damaged, do not install it. File a claim immediately with the carrier, stating the extent of damage.
Page 8 9. Level the Message Board and tighten the nuts. 10. Tighten the 8-32 thread-forming screws just enough to keep the Message Board from sliding on the mounts. Do not pierce the polycarbonate housing with the screws. Model MB1 LED Message Board Federal Signal www.fedsig.com...
Page 9: Wiring The Led Message Board System In The Vehicle
Wiring the LED Message Board System in the Vehicle Wiring the LED Message Board System in the Vehicle The LED Message Board is completely wired at the factory and does not require any additional internal wiring. It has two 14 AWG power conductors (red and black) and a connection for a Convergence Network communication cable.
Page 10: Wiring The Message Board Control Head
Federal Signal Convergence Network siren, insert the Convergence Network connector from the Message Board into one of the two modular connectors in the back of the control head. See Figure 2 on page 10. Model MB1 LED Message Board Federal Signal www.fedsig.com...
Page 11: Figure 3 Convergence Network Connections With Siren
Wiring the LED Message Board System in the Vehicle WITH A FEDERAL SIGNAL SIREN: See Figure 3. If you are installing the system in a vehicle with a Federal Signal Convergence Network siren, plug the Convergence Network connector from the Message Board into one of the available modular connectors in the back of the siren Carefully route the included 25-foot CAT5 cable from another open connection on the siren through the vehicle to where the control head will...
Page 12: Safety Message To Operators Of Warning Light Equipment
• Do not use a magnet mounting system on vehicles with vinyl tops. • To prevent sliding of light assembly on mounting surface, avoid quick acceleration and hard stops. Failure to follow these precautions may result in property damage, serious injury, or death. Model MB1 LED Message Board Federal Signal www.fedsig.com...
Page 13: Operating The Led Message Board Controls
Operating the LED Message Board Controls Operating the LED Message Board Controls The Message Board is controlled entirely with the control head either through the numeric keypad or by activating wires in the back of the control head. To activate a message, use the numeric keypad to enter a message or use the arrow keys to scroll up or down to select a message, then press ENT(ER).
Page 14: Setting Configuration Options
7. Exit Standard Menu The Security Menu has these menu items: 0. Change Date 1. Change Time 2. Adjust Message Board Intensity 3. Reset Fleet Password 4. Update Control Head Firmware 5. Exit Security Menu Model MB1 LED Message Board Federal Signal www.fedsig.com...
Page 15: Entering The Standard Menu
Setting Configuration Options Entering the Standard Menu To enter the Standard Menu: 1. Make sure that the control head is powered up and running. 2. Press and hold the ESC(APE) key for at least three seconds to enter the menu. The control head beeps once you enter the Standard Menu and display the first menu entry.
Page 16 1. Disconnect and apply +12 V (+BAT) on the yellow, blue, and orange wires. 2. Apply ground (-NEG) on the brown and black wires. Finally apply 12 V to the red wire. 3. After a few seconds press ENT to confirm resetting the Fleet Password. Model MB1 LED Message Board Federal Signal www.fedsig.com...
Page 17: Maintaining The Message Board
Maintaining the Message Board Maintaining the Message Board Establishing a regular maintenance schedule for the LED Message Board extends its life and ensures safety. Periodically verify that the Message Board operates properly and that all mounting hardware is securely fastened to the vehicle. Inspect the reflectors for cracks, crazing (hairline cracks), discoloration, and other defects.
Page 18: Getting Technical Support And Service
Provide a brief explanation of the service requested, or the nature of the malfunction. Address all communications and shipments to the following: Federal Signal Corporation Service Department 2645 Federal Signal Drive University Park, IL 60484-3167 Model MB1 LED Message Board Federal Signal www.fedsig.com...
Page 19: Ordering Replacement Parts
Ordering Replacement Parts Ordering Replacement Parts To order replacement parts, please contact your local dealer/distributor or: Customer Support Federal Signal Corporation Phone: 1-800-264-3578, 1-708-534-3400 Installation, Maintenance, and Service Manual Federal Signal www.fedsig.com...
Page 20 2645 Federal Signal Drive University Park, Illinois 60484-3167 www.fedsig.com Customer Support Police/Fire-EMS: 800-264-3578 • +1 708 534-3400 Work Truck: 800-824-0254 • +1 708 534-3400 Technical Support 800-433-9132 • +1 708 534-3400...
