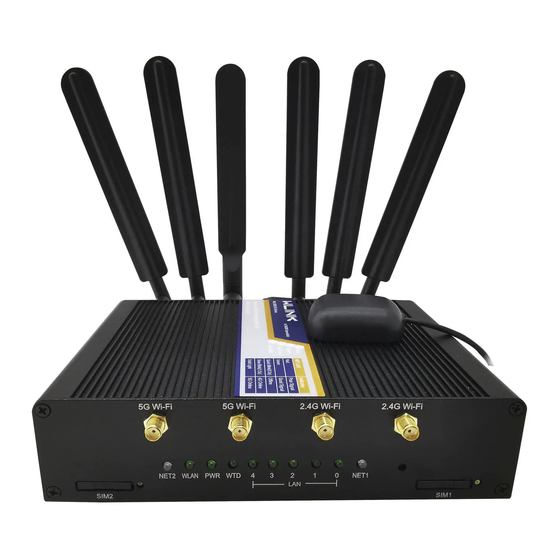

Industrial 5g router
Hide thumbs Also See for WL-G930 Series:

Advertisement

Quick Links

WL-G930 Series Router User Manual
User Manual
---Apply to WL-G930 Series Industrial 5G Router
V1.0
http://www.wlink-tech.com
March, 2018
V1.0
http://www.wlink-tech.com
June, 2020
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WL-G930 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for WLINK WL-G930 Series

  • Page 1 WL-G930 Series Router User Manual User Manual ---Apply to WL-G930 Series Industrial 5G Router V1.0 http://www.wlink-tech.com March, 2018 V1.0 http://www.wlink-tech.com June, 2020...
  • Page 2: Table Of Contents

    WL-G930 Series Router User Manual Contents 1.1 ..................................1 1 Hardware Installation..............................4 1.1 Panel................................4 1.2 LED Status..............................5 1.3 Dimension..............................6 1.4 How to Install..............................6 2 Router Configuration.............................. 8 2.1 Local Configure............................8 2.2 Status................................9 2.3 Tool Column..............................11 2.4 Basic Network............................13 2.5 WLAN Setting.............................22 2.6 Advanced Network Setting........................
  • Page 3 WL-G930 Series Router User Manual 3.3 Captive Portal.............................65 3.4 GPS Settings..............................68...
  • Page 4: Hardware Installation

    WL-G930 Series Router User Manual Hardware Installation This chapter is mainly for installation introduction, there would be some difference between the scheme and real object. But the difference won’t have any influence to products performance. Panel Table 1-1 WL-G930 Structure WLINK Tech.
  • Page 5: Led Status

    WL-G930 Series Router User Manual Instruction Remark Port Wi-Fi 2.4G Wi-Fi, 5G Wi-Fi. dual-band antennas, RP-SMA connector LAN0~LAN4 10/100/1000Base-TX,MDI/MDIX self-adaption. Reset Reset button, (press on button at least 5 seconds) Power connector 7.5~32VDC Power Interface 1xDC, 1x 4Pins Terminal Block...
  • Page 6: Dimension

    WL-G930 Series Router User Manual Dimension Figure 1-2 G930 Series Router Dimension How to Install 1.4.1 SIM/UIM card install Please insert the dual SIM cards before configure the router. Before connecting, please disconnect any power resource of router...
  • Page 7 WL-G930 Series Router User Manual 1.4.2 Ethernet Cable Connection Connect the router with a computer by an Ethernet cable for GUI configuration, or transit by a switch. 1.4.3 5G and Wi-Fi Antenna Plug Connect the two magnetic 5G antennas to 5G-1 to 5G-6 interfaces, and the four paddle shape Wi-Fi antennas to Wi-Fi interfaces.
  • Page 8: Router Configuration

    WL-G930 Series Router User Manual Router Configuration WL-G930 Series routers support GUI and CLI configuration. This chapter introduce GUI configuration via Ethernet port, if need CLI configuration guide, please contact our technical support department by email: support@wlink-tech.com. Local Configure The router supports to be configured by local Ethernet port, you could specify a static IP or set as DHCP.
  • Page 9: Status

    WL-G930 Series Router User Manual User should use the default user name and password when log in for the first time Figure 2-2 User Identify Interface ----END Status Check routers information such as status, traffic Stats and device list after login router.
  • Page 10 WL-G930 Series Router User Manual Figure 2-3 Router Status GUI 2.2.2 Traffic Stats. Click Status->Traffic Stats. to enter the traffic stats.GUI.to check Cellular/WAN traffic in real-time. Figure 2-4 Traffic Stats. GUI 2.2.3 Device List Click Status->Device List to enter the device list GUI.to check the connected devices...
  • Page 11: Tool Column

    WL-G930 Series Router User Manual Figure 2-5 Device List GUI Tool Column Figure 2-6 Tool Column GUI 2.3.2 Tools 2.3.2.1 Ping Click Tools->Ping to enter ping test GUI. Used to test the reachability of a host on an Internet IP network and to measure the round-trip time for messages sent from the originating host to a destination server.
  • Page 12 WL-G930 Series Router User Manual Click Tools-> WOL to enter WOL(Wake On Lan) GUI. Used to wake up those connected devices via WOL protocol. Clock left mouse button to wake up the device. 2.3.2.4 Log Click Tools-> Log to enter Log GUI. Use to check logs in GUI, download GUI and send logs to server.
  • Page 13: Basic Network

    WL-G930 Series Router User Manual 2.3.4 System Click system to choose software reboot, hardware reboot and logout GUI. Basic Network 2.4.1 WAN Setting Step 1 Basic Network>WAN to enter below interface.
  • Page 14 WL-G930 Series Router User Manual Table 2-1 WAN Setting Instruction Parameter Instruction Type Support DHCP, PPPoE, Static IP address Step 2 After setting, please click “save” to finish, the device will reboot. ----End 2.4.2 Cellular Setting Step 1 Basic Network-> Cellular, you can modify relevant parameter according to the...
  • Page 15 WL-G930 Series Router User Manual Table 2-2 WAN Setting Instruction Parameter Instruction Enable Modem Enable/Disable 5G mode. Use PPP ECM dialup as default. PPP optional. ICMP check If enable ICMP check and setup a reachable IP address as destination IP, the router will reconnect/reboot once ICMP check failed.
  • Page 16 WL-G930 Series Router User Manual 【ICMP Check】 Enable ICMP, Router will automatically check whether the defined IP address is reachable per 60s. If the IP address is unreachable and ICMP check is timeout at the first time, it will check 2 times every 3 seconds. If the third time is still failed, the router will redial.
  • Page 17 WL-G930 Series Router User Manual Table 2-3 LAN Setting Instruction Parameter Instruction Bridge Supports 4 LAN IP address for br0 to br3 interface. If need to support VLAN, please go to VLAN GUI. Router IP Address Router IP address, default IP is 192.168.1.1 Subnet Mask Router subnet mask, default mask is 255.255.255.0...
  • Page 18 WL-G930 Series Router User Manual Table 2-4 LAN Setting Instruction Parameter Instruction VLAN ID number. The VID range is from 1 to 15. LAN1~LAN4, Defined LAN ports as different Bridge. Tagged Enable to make router can encapsulate and de-encapsulate the VLAN tag.
  • Page 19 WL-G930 Series Router User Manual The router dial-up to network via WAN (DHCP, PPPOE, Static IP) port. ICMP Check When the ICMP Check fails, the switching action between Link1 and Link2 will be triggered. Link1 The Primary link Link2 The Secondary link BACKUP Link1 and Link2 mutual backup.
  • Page 20 WL-G930 Series Router User Manual Step 2 Please Click “Save“ to finish. ----End 2.4.6 Dynamic DNS Setting Step 1 Basic Network->DDNS to enter the DDNS setting page.
  • Page 21 Table 2-5 DDNS Setting Instruction parameter Instruction Default is standard DDNS protocol, for customized protocol, please IP address contact Wlink engineer. Usually, use default IP 0.0.0.0 Auto refresh Set the interval of the DDNS client obtains new IP, suggest 240s or time above Service Select the DDNS service provider that listed.
  • Page 22: Wlan Setting

    WL-G930 Series Router User Manual Table 2-6 Routing Setting Instruction Parameter Instruction Destination Router can reach the destination IP address. Gateway Next hop IP address which the router will reach Subnet Mask Subnet mask for destination IP address Metrics are used to determine whether one particular route should Metric be chosen over another.
  • Page 23 WL-G930 Series Router User Manual...
  • Page 24 WL-G930 Series Router User Manual Table 2-7 Basic of WLAN Setting Instruction Parameter Instruction Radio Mode 2.4G+5G mode as default. Support 2.4G, 5G modes optional. 2.4G+5G model, Wi-Fi bandwidth for 683Mbps 2.4G model, Wi-Fi bandwidth for 300Mbps 5G model, Wi-Fi bandwidth for 866Mbps...
  • Page 25: Advanced Network Setting

    WL-G930 Series Router User Manual Step 2 Please click “Save” to finish. ----End 2.5.2 Wireless Survey Step 1 WLAN> Wireless Survey to check survey. Advanced Network Setting 2.6.1 Port Forwarding Step 1 Advanced Network > Port Forwarding to enter the GUI, you may modify the router name, Host name and Domain name according to the application requirement.
  • Page 26 WL-G930 Series Router User Manual Parameter Instruction Ext. Ports External ports. The ports to be forwarded, as seen from the WAN. Int. Port Internal port. The destination port inside the LAN. If blank, the destination port is the same as Ext Ports. Only one port per entry is supported when forwarding to a different internal port.
  • Page 27 WL-G930 Series Router User Manual 2.6.3 DMZ Setting Step 1 Advanced Network> DMZ to check or modify the relevant parameter. Table 2-10 DMZ Instruction parameter Instruction Destination The destination address inside the LAN. Address Source If no IP address inside, it will allow all IP address to access.
  • Page 28 WL-G930 Series Router User Manual Table 2-11 IP Passthrough Instruction parameter Instruction Enable Enable IP Passthrough MAC Address Enable DHCP of device. Configure device Mac. Device will be assigned SIM IP. Gateway If WL-G930 connect to multiple device, input other device gateway.
  • Page 29 WL-G930 Series Router User Manual Table 2-12 Triggered Instruction parameter Instruction Protocol Support UDP, TCP, both UDP and TCP Triggered Ports Trigger Ports are the initial LAN to WAN "trigger". Transferred Forwarded Ports are the WAN to LAN ports that are Ports opened if the "trigger"...
  • Page 30 WL-G930 Series Router User Manual Parameter Instruction Web Host Configure domain name for the captive portal access. For example, Configure as wlink.tech.com, we might directly access to captive portal page in the website as wlink.tech.com Portal Host Reserved. Logged Timeout Maximum time user has connectivity.
  • Page 31 WL-G930 Series Router User Manual Table 2-14 Serial App Instruction Parameter Instruction Serial to TC/IP Support Disable, Server and Client mode. Such as Client. mode Server IP/Port IP address and domain name are acceptable for Server IP Socket Type Support TCP/UDP protocol...
  • Page 32 WL-G930 Series Router User Manual Parameter Instruction Baud Rate 115200 as default Parity Bit None as default Data Bit 8bit as default Stop Bit 1bit as default Serial port connection PINs DB9(male) ---- ---- ---- DI-1 DI-2 Step 2 Please click ”save” to finish.
  • Page 33 WL-G930 Series Router User Manual 2.6.9 Bandwidth Control Setting Step 1 Advanced Network> Bandwidth Control to check or modify the relevant parameter. Table 2-15 Bandwidth Control Instruction Max Available Download Speed limit for router. Max Available Upload Speed limit for router.
  • Page 34: Firewall

    WL-G930 Series Router User Manual Step 2 Please click ”save” to finish. ----End 2.6.11 Static DHCP Setting Step 1 Advanced Network> Static DHCP to check or modify the relevant parameter. Step 2 Please click ”save” to finish. ----End Firewall 2.7.1 IP/URL Filtering Step 1 Firewall>...
  • Page 35 WL-G930 Series Router User Manual Table 2-16 IP/URL Filtering Instruction Parameter Instruction IP/MAC/Port Support IP address, MAC address and port filter. Filtering Accept/Drop options for filter policy. Key Word Support key word filter. Filtering URL Filtering Support URL filter. Access Filtering...
  • Page 36: Vpn Tunnel

    WL-G930 Series Router User Manual Step 2 Please click ”save” to finish. ---End 2.7.2 Domain Filtering Step 1 Firewall> Domain Filtering to check or modify the relevant parameter. Table 2-17 Domain Filtering Instruction Parameter Instruction Default Policy Support black list and white list Local IP Local IP address for LAN.
  • Page 37 WL-G930 Series Router User Manual Table 2-18 GRE Instruction Parameter Instruction GRE tunnel number Tunnel Address GRE Tunnel local IP address which is a virtual IP address. Tunnel Source Router’s 3G/WAN IP address. Tunnel Destination GRE Remote IP address. Usually a public IP address Keep alive GRE tunnel keep alive to keep GRE tunnel connection.
  • Page 38 WL-G930 Series Router User Manual Table 2-19 Basic of OpenVPN Instruction Parameter Instruction Start with WAN Enable the Openvpn feature for 5G/3G/WAN port. Interface Type Tap and Tun type are optional. Tap is for bridge mode and Tunnel is for routing mode.
  • Page 39 WL-G930 Series Router User Manual Parameter Instruction Authentication HMAC authorization As the configuration requested. Create NAT on Configure NAT in Openvpn tunnel. tunnel Table 2-20 Advanced of OpenVPN Instruction Parameter Instruction Poll Interval Openvpn client check router’s status as interval time.
  • Page 40 WL-G930 Series Router User Manual Table 2-21 Keys of OpenVPN Instruction Parameter Instruction Keep certificate as the same as server Certificate Authority Client Certificate Keep client certificate as the same as server Client Key Keep client key as the same as server...
  • Page 41 WL-G930 Series Router User Manual Table 2-23 PPTP/L2TP Basic Instruction parameter Instruction VPN enable Protocol VPN Mode for PPTP and L2TP Name VPN Tunnel name Server Address VPN Server IP address. User name As the configuration requested. Password As the configuration requested.
  • Page 42 WL-G930 Series Router User Manual Custom As the configuration requested. Options Table 2-25 PPTP Advanced Instruction PPTP Advanced enable Name PPTP Tunnel name Accept DNS As the configuration requested. MTU is 1450bytes as default MRU is 1450bytes as default MPPE...
  • Page 43 WL-G930 Series Router User Manual 2.8.4 IPSec Setting 2.8.4.1 IPSec Group Setup Step 1 IPSec> Group Setup to check or modify the relevant parameter. Table 2-27 IPSec Group Setup Instruction parameter Instruction IPSec Support Standard IPSec, GRE over IPSec, L2TP over...
  • Page 44 WL-G930 Series Router User Manual parameter Instruction Remote IPsec peer IP address/domain name. IP/Domain Remote IPSec remote subnet and mask. Subnet/Mask Remote Forwarding-firewalling for Remote subnet Firewall Step 2 Please click ”save” to finish. 2.8.4.2 IPSec Basic Setup Step 1 IPSec >Basic Setup to check or modify the relevant parameter.
  • Page 45 WL-G930 Series Router User Manual parameter Instruction Phase 1 Support HASH MD5 and SHA Authentication Phase 1 SA IPSec Phase 1 SA lifetime Life Time Phase 2 DH Select Group1, Group2, Group5 from list. It must be Group matched to remote IPSec setting.
  • Page 46: Administration

    WL-G930 Series Router User Manual Table 2-29 IPSec Advanced Setup Instruction parameter Instruction Aggressive Default for main mode Mode ID Payload Enable ID Payload compress Compress To enable DPD service ICMP ICMP Check for IPSec tunnel IPSec Custom IPSec advanced setting such as left/right ID.
  • Page 47 WL-G930 Series Router User Manual Parameter Instruction Domain name Default is empty, support maximum up to 32 character, it is the domain of WAN, no need to configure for most application. Step 2 Please click ”save” to finish ----End...
  • Page 48 WL-G930 Series Router User Manual 2.9.2 Time Setting Step 1 Please click “Administrator> time” to check or modify the relevant parameter. If the device is online but time update is fail, please try other NTP Time Server. Step 2 Please click “save to finish.
  • Page 49 WL-G930 Series Router User Manual 2.9.3 Admin Access Setting Step 1 Please click “Administrator>Admin” to check and modify relevant parameter. In this page, you can configure the basic web parameter, make it more convenient for usage. Please note the “password” is the router system account password.
  • Page 50 WL-G930 Series Router User Manual Step 2 Please click save iron to finish the setting ----End 2.9.6 Storage Setting Step 1 Please click “Administrator>Storage Setting” to check and modify relevant parameter. Step 2 Please click save iron to finish the setting ----End 2.9.7...
  • Page 51 WL-G930 Series Router User Manual Step 2 Please click save iron to finish the setting ----End 2.9.8 TR-069 Setting Step 3 Please click “Administrator>TR-069 Setting” to check and modify relevant parameter. Step 4 Please click save iron to finish the setting...
  • Page 52 WL-G930 Series Router User Manual 2.9.9 DI/DO Setting Step 1 Please click “Administrator>DI/DO Setting” to check and modify relevant parameter. 2.9.7.1 DI Configure...
  • Page 53 WL-G930 Series Router User Manual Table 2-31 DI Instruction Parameter Instruction Enable Enable DI. Port1 is for I/O1 and Port2 is I/O2. Both I/O1 and I/O2 are DI ports Mode Selected from OFF, ON and EVENT_COUNTER modes. OFF Mode: DI from high level(3.3v~5V) to low level(0V), it will trigger alarm.
  • Page 54 WL-G930 Series Router User Manual Parameter Instruction Under EVENT_COUNTER mode, if first pulse shape and last pulse shape are not the same level, WL-G930 will trigger alarm according to Counter Action setting. Counter Trigger Available when DI under Event Counter mode Input from 0 to 100.
  • Page 55 WL-G930 Series Router User Manual EVENT_COUNTER Model The counted number of pulses will be triggered. 2.9.7.2 DO Configure Table 2-32 DO Instruction Parameter Instruction Enable 1 DO as selected Alarm Source Digital output initiates according to different alarm source. Select from DI Alarm, SMS Control and M2M Control. Selections can be one or more.
  • Page 56 WL-G930 Series Router User Manual Parameter Instruction receiving SMS from the number in phone book. M2M Control: it’s not ready. Alarm Action Digital Output initiates when there is an alarm. Selected from “OFF”, “ON”, “Pulse”. OFF: Open from GND when triggered.
  • Page 57 WL-G930 Series Router User Manual DO might be customized pulse width ratio: T1, T2 duration and n value. 2.9.10 Configuration Setting Step 1 Please click “ Administrator> Configuration ” to do the backup setting Figure 3-1 Backup and Restore Configuration GUI Restore Default would lose all configuration information, please be careful.
  • Page 58 WL-G930 Series Router User Manual 2.9.11 System Log Setting Step 1 Please click “Administrator> Logging” to start the configuration, you can set the file path to save the log (Local or remote sever). Figure 3-1 System log Setting GUI Step 2 After configure, please click “Save” to finish.
  • Page 59 WL-G930 Series Router User Manual 2.9.12 Firmware upgrade Step 1 Please click “Administrator>firmware upgrade” to open upgrade firmware tab. Figure 3-1 Firmware Upgrade GUI When upgrading, please don’t cut off the power. 2.9.13 Firmware upgrade Step 1 Please click “Administrator>firmware upgrade” to open upgrade firmware tab.
  • Page 60: Reset" Button For Restore Factory Setting

    WL-G930 Series Router User Manual Figure 3-1 Firmware Upgrade GUI When upgrading, please don’t cut off the power. 2.10 “Reset” Button for Restore Factory Setting If you couldn’t enter web interface for other reasons, you can also use this way.
  • Page 61 WL-G930 Series Router User Manual After reboot, the previous configuration would be deleted and restore to factory settings.
  • Page 62: Configuration Instance

    WL-G930 Series Router User Manual Configuration Instance This chapter is mainly for configured test case, there would be some difference between the scheme and real object. But the difference doesn’t have any influence to products performance. Port Forwarding 1) The router online and got a public IP address 14.31.134.94 Note: It’s based on SIM card carrier...
  • Page 63: Ip Passthrough

    WL-G930 Series Router User Manual 4) The PC can be accessed via 14.31.134.94:443 over Internet IP Passthrough 1) The router online 2) Configure IP passthrough destination MAC address (PC Ethernet MAC) 3) Set the PC to DHCP...
  • Page 64 WL-G930 Series Router User Manual 4) Check the Ethernet status and ping test 5) Set the PC Ethernet as DHCP to release the IP and access to router GUI again...
  • Page 65 WL-G930 Series Router User Manual Captive Portal Step 1 Please click “Advanced Network> Captive Portal” to check or modify the relevant parameter. 1)Upload Portal file and Splash.html by local Upload portal images and splash.html in router for the Slider (0001_portal.png, 0002_portal.png, and 0003_portal.png) to the Router under the “...
  • Page 66 WL-G930 Series Router User Manual Each Ad file just supports 3 Ad portal images. Picture format is acceptable for png/jpg and image size is less than 100Kbytes and resolution is 800*600. Picture name is 0001_portal.png, 0002_portal.png and 0003_portal.png. Furthermore, please keep image...
  • Page 67 WL-G930 Series Router User Manual Finally, we can see the results by connect to router WIFI 2)Modify portal file storage path Modify portal file storage for In-storage as below.
  • Page 68 WL-G930 Series Router User Manual GPS Settings Step 1 Please click “Advanced Network> GPS” to view or modify the relevant parameter. Figure 4-5 GPS GUI Table 4-5 “GPS” Instruction parameter Instruction GPS Mode Enable/Disable GPS Format NMEA and M2M_FMT(WLINK) Server IP/Port...
  • Page 69 WL-G930 Series Router User Manual parameter Instruction Interval GPS data transmit as the interval time. Step 2 Please click “save” to finis Step 3 Connect the GPS antenna to router GPS interface Step 4 Check GPS Status M2M_FMT Format as below.
  • Page 70 WL-G930 Series Router User Manual 081850ac Last 8digits of routers MAC address. gps_date yymmdd 150904 Date in year,month,day gps_time 043215.0 hhmmss.ss UTC Time, Time of position fix. gps_use numeric Satellites Used, Range 0 to 12. gps_latitude 2234.248130 ddmm.mm Latitude, Degrees + minutes.
