Operating/assembly instructions
Ceiling mount with half ring
Prod. code: 177 3806
Assembly instructions for ceiling mount with half ring
Thank you very much for choosing a
assemble the equipment so you can enjoy the product and safety is guaranteed.

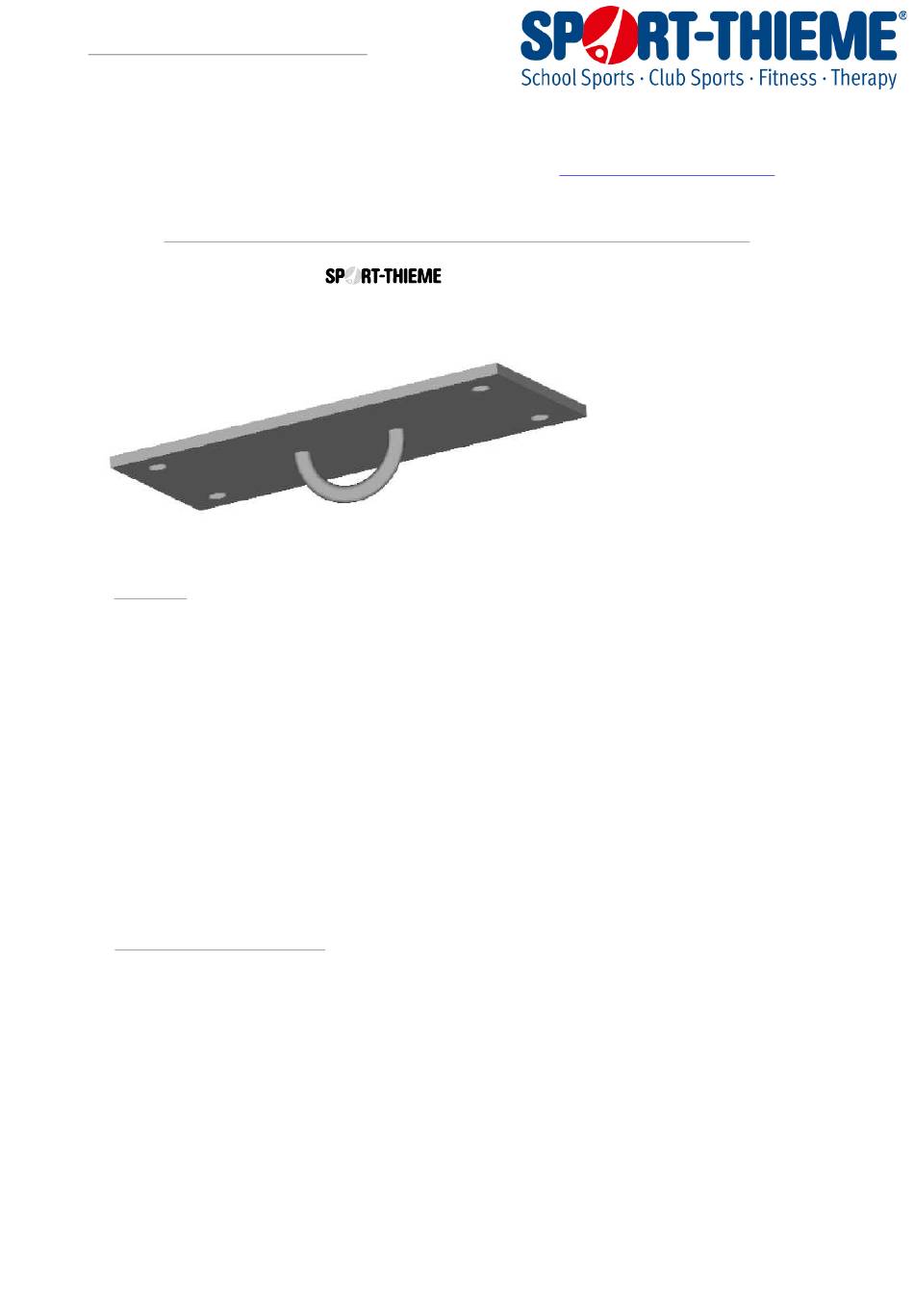

Ill. 1: Sport-Thieme ceiling mount with half ring
1. General
The ceiling mount has been designed for the retroactive installation of sport or
therapy equipment.
The maximum permissible vertical load is 2.00 kN.
This bracket allows quick and easy attachment of swings, therapy equipment etc. to
ceilings, wooden beams and steel beams.
Attach the equipment using snap hooks or a steel chain link and if necessary, a
rotating swivel. These parts are not included.
The ceiling mount with half ring is only suitable for its intended use. Improper use
voids the warranty.
For use in a public domain, use only under supervision!
2. Assembly instructions
Before you begin assembly, please ensure that you install the ceiling mount to a solid
and stable ceiling (no suspended ceilings, plasterboard, hollow bricks or similar)!
For your safety, the ceiling's maximum load should be checked by a structural
engineer, who can also advise on suitable wall plugs.
The wall plugs should have a minimum load capacity each of 2.50 KN, e.g. Fischer
high-performance anchors FH 12 for cracked concrete B25.
