luceco Ceres Standard LHBC11S Series Installation & Operating Instructions

EMERGENCY LIGHTING TESTING
Months 1 to 11 inclusive – Function Test, interrupt the permanent/UnSwitched supply and check the luminaire operates in Emergency
mode at reduced output
Month 12 (Annual) – As months 1 to 11 but for a full 3hr duration
Luminaire Ref / Location: ........................................ In Case of difficulty, contact the Installation Engineers:-
LHBCx11Exx/LHBCx22EXX Duration 3hr
INITIAL USE AND ROUTINE TESTING
From initial install the downlight will require up to 24hr for the batteries to be fully charged and provide the rated 3hr duration
in Emergency mode. Then following subsequent Emergency use, from full discharge will take approx. 14hr to fully recharge batteries.
It is important that the luminaire is routinely tested to ensure the batteries are conditioned and also to fully comply with BS5266.
A function test should be conducted every month with an annual test of the full 3hr duration. Records can be kept on the adjacent table.
It is recommended that batteries are replaced every 4 years to ensure the optimum charging cycle is maintained.
First Year Second Year
Month Test Signed Date Signed
1 Function
2 Function
3 Function
4 Function
5 Function
6 Function
7 Function
8 Function
9 Function
10 Function
11 Function
Annual Full Test
Tech Help Line
0330 0249 279
UK -
+44 (0)1952 238 100 Shropshire, England, TF3 3BD
Non UK -
LHB.JH.04.2017
Installation & Operating Instructions
Tel: .........................................................
Lamp Type - LED
Third Year Fourth Year
Date Signed Date Signed Date
Supplied by LUCECO Visit our website at
Stafford Park 1, Telford,
www.luceco.com
LED INDUSTRIAL

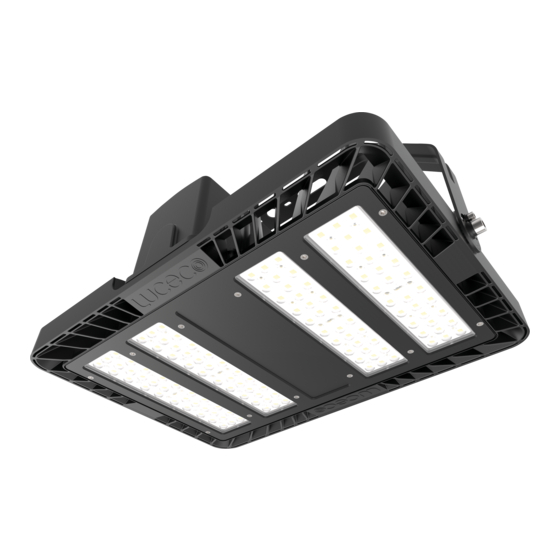

CERES HIGHBAY
NOTE – To comply with regulations, installation must be carried out by suitably
qualified competent person and in accordance with the current IEE Wiring
Regulations (BS7671) and Building Regulations. A copy of the instructions must
be left for the user/maintenance engineer for future reference.
For non-UK, please refer/consult local requirements
ENSURE ELECTRICAL SUPPLY IS DISCONNECTED/
ISOLATED BEFORE COMMENCING INSTALLATION
ASSEMBLY AND INSTALLATION
• Suitable for use with mains voltage 110-240V AC
Fifth Year

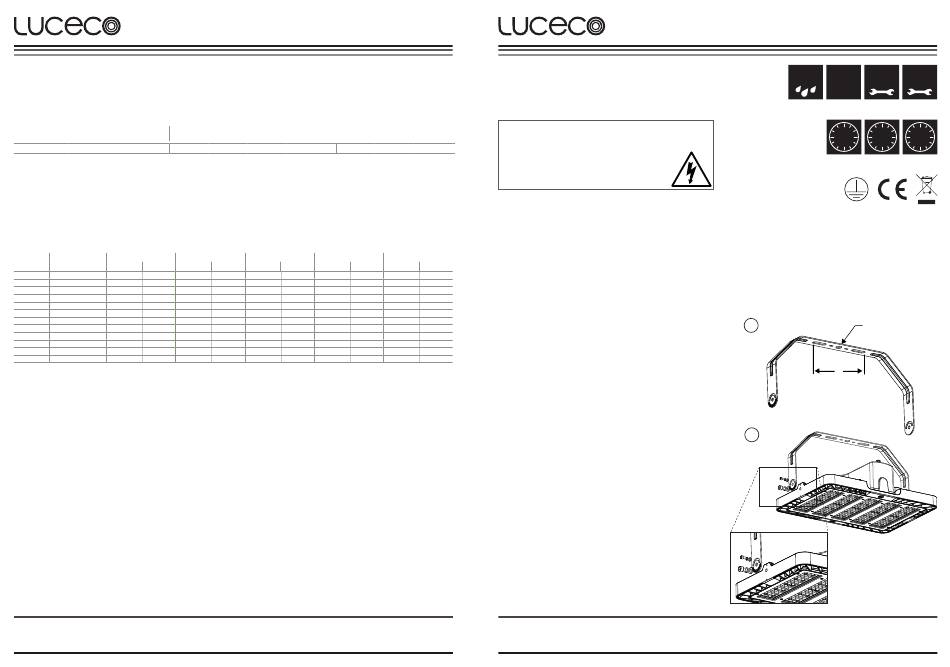

SUGGESTED METHOD OF INSTALLATION
Signed Date
1. Identify a suitable location for installation.
2. Trunking:– This can be mounted using the central 20mm hole
(a)
For surface installation:– Use suitable fixing through fixing
points (b)
3. The main housing is assembled to the bracket as shown.
Larger bolt and washers are used for main fixings.
Smaller bolt and washers are used for tilt adjustment slot
Page 4
Tech Help Line
0330 0249 279
UK -
+44 (0)1952 238 100
Non UK -
LHB.JH.04.2017
Installation & Operating Instructions
IP65
CRI
>
RATED
80
50,000
HOURS
STANDARD
• This product is pre-wired, with no user serviceable components.
Opening the luminaire may void the IP65 rating and warranty
2
b
3
