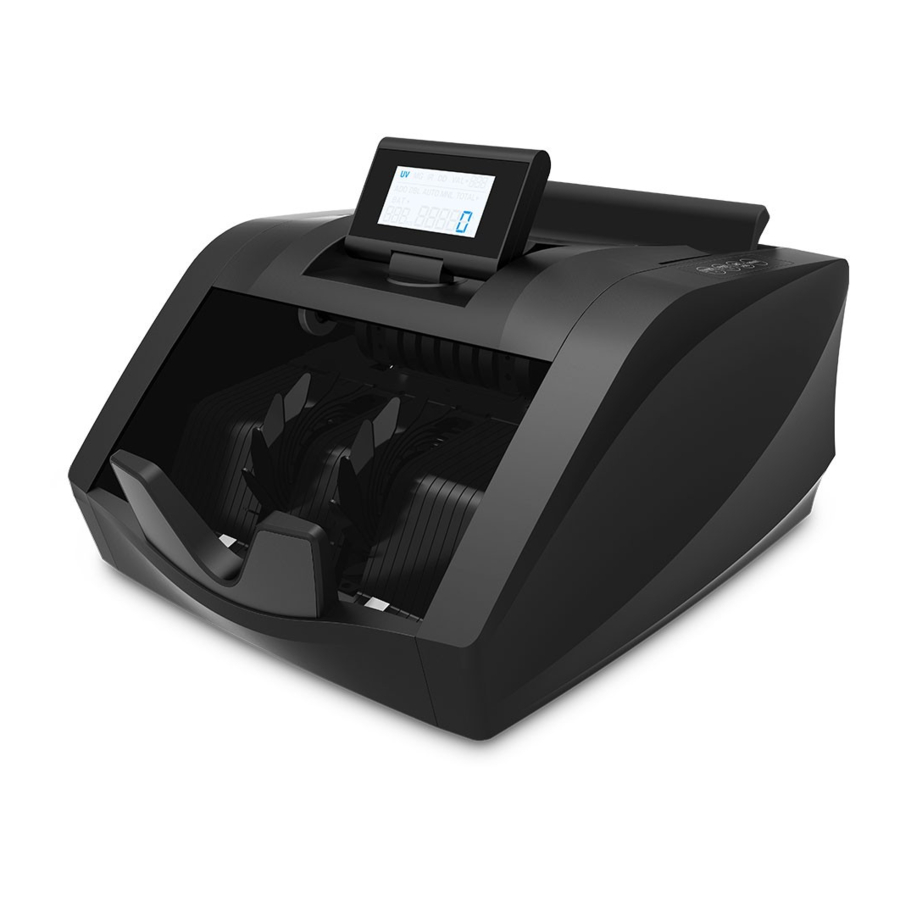

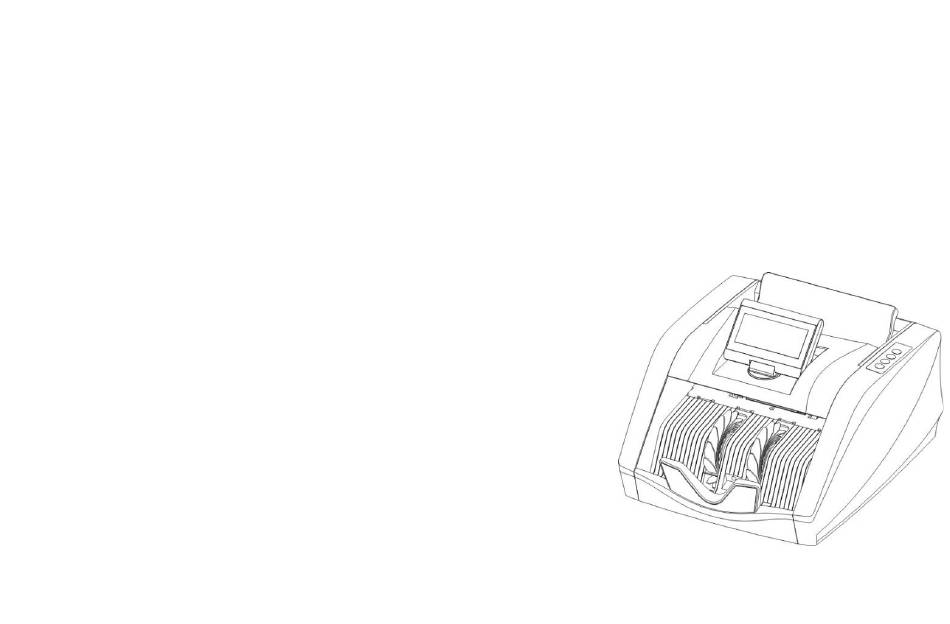

- Page 1 BILL COUNTER OPERATION MANUAL...
-
Page 2: Table Of Contents
浙江商通电子有限公司 2500 型 说明书 Content 1. Specification ................................. 2 2. Self- check and fault diagnoses ..........................3 3. Error codes and solutions ............................4 4. The introduction of the main parts ..........................6 5. The introduction of the main display and keys ......................7 6. -
Page 3: Specification
浙江商通电子有限公司 2500 型 说明书 1. Specification Rated voltage AC（200-230）V±10% 50Hz±5% /AC120V±10% 60Hz±5% /Frequency Power 75W(Max) consumption Counting range 5 digit LCD Batch range 1-100pcs ≥1000pcs/min Counting speed Feeding system Roller Friction Type Banknote size Width:50-900mmLength:110-180mm Banknote 0.075～0.15mm thickness Hopper capacity 150PCS Stacker capacity 150PCS... -
Page 4: Self- Check And Fault Diagnoses
浙江商通电子有限公司 2500 型 说明书 Self- check and fault diagnoses When turn on the machine, it will start self-check by itself. This function can check whether all the sensors and relative circuit are in good working condition or not. When detecting a fault, the fault code will be showed in the counting display：... -
Page 5: Error Codes And Solutions
浙江商通电子有限公司 2500 型 说明书 There is something covering the Clean the feeding sensor. feeding sensor; Error codes and solutions The display may shows some error codes when counting, which means there are some problems with the notes. Refer to the following diagram to find a way to solve it. Error code Reasons Solutions... - Page 6 浙江商通电子有限公司 2500 型 说明书 DD detection Problem with the DD sensitivity Lower the DD sensitivity level Remove the suspicious bill from the Half note stacker; press “RESET”to continue; Remove the suspicious bill from the Chain note stacker; press “RESET”to continue;...
-
Page 7: The Introduction Of The Main Parts
浙江商通电子有限公司 2500 型 说明书 The introduction of the main parts 1.Main display 1.Reset sendor 2.Transporting 2.Hopper wheel 3.Feeding 3.Keys wheel 4.Receiving 4.Feeding wheels sensor 5.Transportation 5.UV light frame platform 6.Counting tube 6.Stacker frame 1. Left cover 2. Top cover 3. Left cover External display (optional) 4. -
Page 8: The Introduction Of The Main Display And Keys
浙江商通电子有限公司 2500 型 说明书 The introduction of the main display and keys 5.1 The pictures of the main display and keys UV Model UV/MG Model 5.2. The function of the keys Model Keys Functions 1. Press this key can turn on/off the “UV”and “ MG” function, can choose among UV, MG, UV+MG and off. -
Page 9: The Introduction Of The Sensitivity Setting
浙江商通电子有限公司 2500 型 说明书 1. Press this key can turn on/off the “UV” function. √ 2. In the “BAT” mode, press this keyshortly, the batch number will decrease “1”; if long press this key , the batch number will be decreased continuously. 1. - Page 10 浙江商通电子有限公司 2500 型 说明书 sensitivity level to make the counting more smoothly. In the normal state, this machine can enter into the sensitivity level setting by pressing “UV/MG/-1”/ ”UV/-1”and “BAT/ADD/+1”at the same time to enter in to the sensitivity setting interface, and press “BAT/ADD”to choose the according sensitivity setting, then press “BAT/ADD/+1”...
-
Page 11: Restore To The Factory Setting
浙江商通电子有限公司 2500 型 说明书 Restore to the factory setting In the normal state, press “RESET” for 3 seconds, after hearing the “beep” sound, then the machine is restored to the factory setting. 8. Banknote clearance adjustment 8.1 The good condition of the clearance: smooth feeding, accurate counting, good friction. 8.2 The friction of the hopper: after a long time of usage, the roller and the rubber tape will be loose, then it will result in inaccurate counting(generally the counting number will be less than the right notes number). -
Page 12: Precaution For Handling The Machine
浙江商通电子有限公司 2500 型 说明书 loose- tight+ Precaution for handling the machine The user should pay attention to the following items when using this product： Damp and/or badly stained notes should be avoided； Check no other things(paper clip, rubber Stack of notes mixed with band, pieces of paper etc.)mixed in the notes Damp and/or badly stained... -
Page 13: Cautions
浙江商通电子有限公司 2500 型 说明书 Folded curled notes should straightened before counting As for the bundle of new notes, should bend Curled note Folded note and flex before counting The notes should be tidied up before counting, or it will lead to the some problem when the machine work Cautions Please read all the instructions as below before using the machine, or it will lead to some danger and fault... -
Page 14: Maintenance
浙江商通电子有限公司 2500 型 说明书 ——Do not put tools, hand, hair or cloth close to the rotating parts of the machine, in case of some danger ——Do not press the keys with something pointed. ——Keep the machine in the dry condition, this machine is not waterproof. ——Do not repair the machine by yourself, should ask qualified service person to repair and maintain it.
