anko BC-125BLH Instruction Manual

Retro fridge
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Retro Fridge
Instruction Manual
Model No.: BC-125BLH(E)
Rev Draft 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BC-125BLH and is the answer not in the manual?

Questions and answers

Related Manuals for anko BC-125BLH

Summary of Contents for anko BC-125BLH

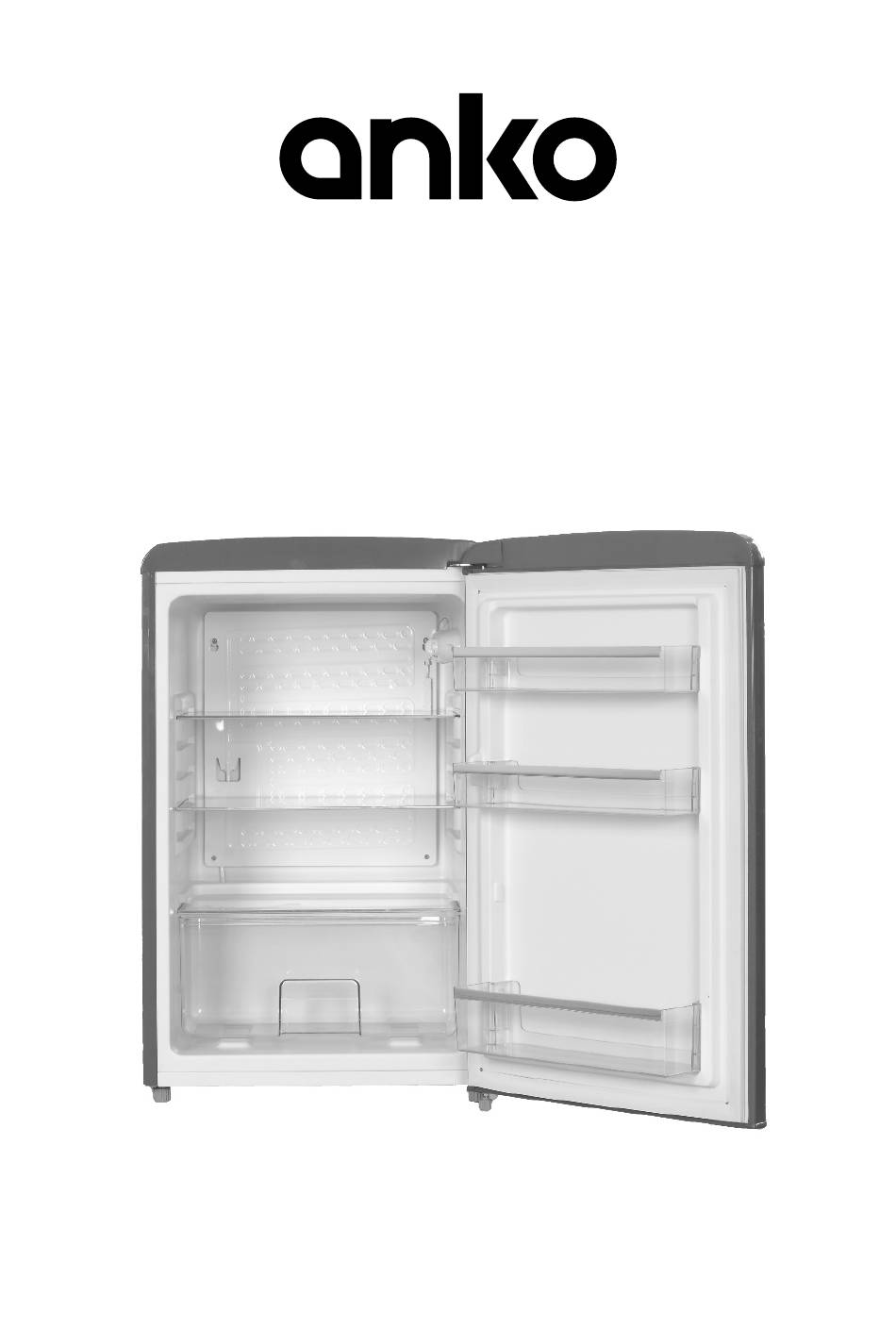

  • Page 1 Retro Fridge Instruction Manual Model No.: BC-125BLH(E) Rev Draft 1...
  • Page 2 Page 2 of 16...

  • Page 3: Table Of Contents

    1. Important Safeguards ............4 2. Components ................7 3. Methods of Safe Installation ..........8 4. How to Operate ..............8 5. Temperature Control .............9 6. Storing food ................. 10 Glass shelves ............... 10 Vegetable drawer ............10 Door compartments ............10 7. Saving energy ..............11 8.

  • Page 4: Important Safeguards

    When using electrical appliances, in order to reduce the risk of fire, electric shock and/or injury, these basic safety precautions should always be followed: 1. Important Safeguards When using electrical appliances, basic safety precautions should always be followed, including the following: Carefully read this instruction manual before using appliance.
  • Page 5 – bed and breakfast type environments – catering and similar non-retail applications WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
  • Page 6 This appliance is designed for domestic use only, specifically for the storage of edible • foodstuffs only. • This product has not been designed for any uses other than those specified in this instruction manual. An empty fridge can be a dangerous attraction to children. If disposing of the fridge, remove •...

  • Page 7: Components

    2. Components 1 – Outer cabinet 2 –Temperature control 3 – Door compartments, adjustable 4 – Door Seal 5 - Egg tray for 8 eggs 6 – Adjustable levelling legs 7 – Vegetable drawer 8 – Glass shelf, fixed 9 – Glass shelves, adjustable 10 –...

  • Page 8: Methods Of Safe Installation

    3. Methods of Safe Installation Place the Retro Fridge on a strong and level floor. Unstable installation can produce noise and vibration. Place your Retro Fridge where there is no heat source nearby. High atmosphere temperatures will lower cooling efficiency. Place the Retro Fridge in an area where the humidity level is low.

  • Page 9: Temperature Control

    NOTE: Depending on the ambient temperature, it can take 2–5 hours until the appliance has reached the desired operating temperature. During this phase, the appliance may make operating noises. These will decrease once the set temperature has been reached. Controlling the Temperature Many factors may influence the internal temperature of the Retro Fridge and freezer compartments.

  • Page 10: Storing Food

    6. Storing food 6.1 Glass shelves The temperature is highest on the uppermost shelf, making it a good location for non- perishable foods, such as prepared meals, cheese and spreadable butter. The middle compartment is good for dairy products such as yoghurt, milk or cottage cheese. ...

  • Page 11: Saving Energy

    7. Saving energy The cooler the ambient air, the less energy the appliance needs to use to achieve the required cooling level; therefore, never set up the appliance next to any kind of heat source such as a radiator, dishwasher or cooker. Ensure that there is adequate ventilation.
  • Page 12 The Retro Fridge may smell during the initial operation, but the odour will fade away when the • Retro Fridge is cooled sufficiently. Also clean the opening of the water drain which is located inside the fridge just above the •...

  • Page 13: Troubleshooting

    10. Troubleshooting Problem Cause Solution The plug is not inserted into a mains Connect the plug to the power point power point. and switch on. Contact the Customer Service The appliance is defective. department. Refer to Warranty Page for contact details. Turn the temperature control to a The appliance is Temperature control is set to 0.

  • Page 14: Technical Specifications

    11. Technical Specifications Net Weight: 29Kg Overall Dimensions: W550 x D615 x H875mm Supply: 220-240V~ 50Hz Rated Power: Energy Consumption: 0.63kwh/24h Rated current: 0.60A Refrigerant: R600a (19g) Insulation blowing gas: Cyclopentane Caution: Gas is Highly Flammable LED Light: Max 2W (non serviceable) Specification are subject to change without prior notice 12.

  • Page 15: Warranty Against Defect

    14. Warranty Against Defect 12 Month Warranty Thank you for your purchase from Kmart. Kmart Australia Ltd warrants your new product to be free from defects in materials and workmanship for the period stated above, from the date of purchase, provided that the product is used in accordance with accompanying recommendations or instructions where provided.
  • Page 16 Page 16 of 16...

This manual is also suitable for:

Bc-125blhe
