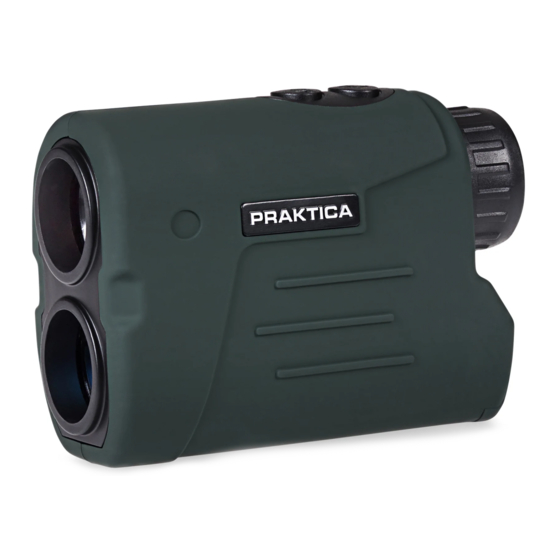

LRF-7 Laser Rangefinder Manual
The PRAKTICA LRF-7 features target seeking technology, allowing you to quickly and easily zone
in on your target. Weighing less than 200g and designed to fit in the palm of your hand, the LRF-7
is the perfect range finding accessory. It features an adjustable eyepiece, 7x magnification and an
impressive 7.1° angular field of view.
The LRF-7's advanced processor results in a quick and accurate reading every time. Distance is
calculated by measuring the time it takes for each pulse to travel from the rangefinder, to the
target and back again.

Getting Started

1. Laser Output
2. Laser Receiving Lens
3. Mode Switching Key
4. Power Button
5. Observation Eyepiece
6. Dipoter Adjustment
7. Battery Cover

Inserting the Battery

In order to use your new rangefinder, you will need to insert a CR2-3V battery. Slide the battery
cover down to reveal the battery compartment. Insert the battery so the negative end is in
contact with the spring, as shown below. The attached ribbon should be under the battery.
Once the battery has been inserted, put the cover back on.
To remove the battery, pull the ribbon towards you. If you intend on storing your rangefinder for a
long time, please ensure the battery is removed.
1
2
CR2-3V Battery
4
3
5
6
7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LRF-7 and is the answer not in the manual?

Questions and answers

Summary of Contents for Praktica LRF-7

  • Page 1 The PRAKTICA LRF-7 features target seeking technology, allowing you to quickly and easily zone in on your target. Weighing less than 200g and designed to fit in the palm of your hand, the LRF-7 is the perfect range finding accessory. It features an adjustable eyepiece, 7x magnification and an impressive 7.1°...
  • Page 2 Measured Angle Operating Instructions 1. Start The PRAKTICA LRF-7 Laser Rangefinder has two buttons; a POWER ( ) button and a MODE button. Press the POWER button for roughly one second and your rangefinder will turn on. 2. Diopter Adjustment To focus on a subject, turn the diopter ring left or right while looking through your rangefinder.
  • Page 3 Your rangefinder will automatically turn off after 20 seconds of inactivity. Important Notes • The PRAKTICA Laser Rangefinder does not emit a visible beam. It uses a non-destructive infrared pulse laser then reflects from the visible target back into the optical receiver.
