AX Li Com BOX (Art.-No. SLAXVTEBMODWX000)
Quick Guide V.1.4
The AX Li Com Box enables communication between the EFFEKTA AX M1 4/5kW
and AX K1 4/5kW inverter and Pylontech US2000 / US 3000 lithium batteries.
1. Package Contents
Before installation, please inspect the unit. Be sure that nothing inside the package is
damaged. You should have received the following items inside of package:
AX Li Com Box Package Items:
AX Li Com Box
Power Adapter
* The supplied RS485-USB cable is custom made with a built-in-converter.

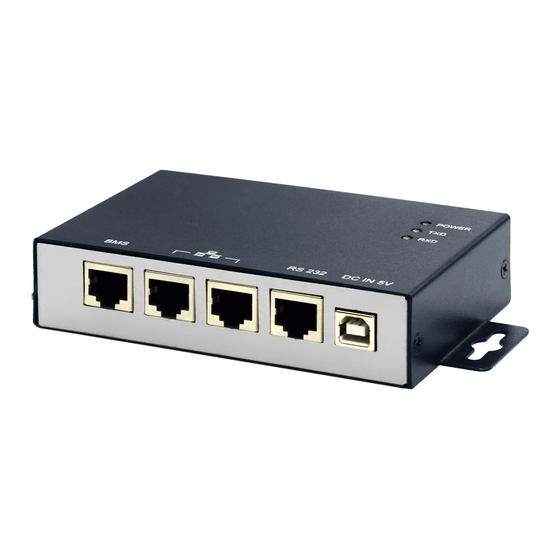

2. Product Overview
RS485-BMS port (Refer to section 3 for the details).
RS485-Monitor port (Refer to section 4 for the details).
RS-232 port
5V DC input
RS232 RXD LED
RS232 TXD LED
Power indicator
RJ45 cable（black）
USB charging cable
1
RS232 cable（gray）
RS485-USB cable*
Quick Guide
Advertisement
Table of Contents
Summary of Contents for Effekta AX Li Com BOX
- Page 1 AX Li Com BOX (Art.-No. SLAXVTEBMODWX000) Quick Guide V.1.4 The AX Li Com Box enables communication between the EFFEKTA AX M1 4/5kW and AX K1 4/5kW inverter and Pylontech US2000 / US 3000 lithium batteries. 1. Package Contents Before installation, please inspect the unit. Be sure that nothing inside the package is damaged.
- Page 2 Pylontech batteries via the AX Li Com- Box. • If there is more than one battery group, the HV device (hub) is also required. In this case the AX Li COM Box must be connected to the Hub instead of the batterie (Pylontech manual, page 37).
- Page 3 Function USB spec Voltage 5V DC Current 500 mA 5. USB Converter wiring First, please use RS-485 to USB converter as media converter between AX Li Com box and computer. Below is the wiring connection between RJ45 and media converter:...
- Page 4 Install this box after configuration with inverter and lithium battery by following the steps below. 1. Use the RS485 USB cable with converter to connect the AX Li Com Box and the PC. 2. Use the included RJ45 cable (black) to connect the AX Li Com Box (RS485-BMS) and the RS 485 connection of the lithium battery.
- Page 5 AX Li Com BOX (Art.-No. SLAXVTEBMODWX000) Quick Guide V.1.4 7. WatchPower software setting 1. Open WatchPower 2. Select "WatchPower Configuration" from menu bar 3. Select "Serial Modbus setting” 4. Select COM port and make the following settings COM Einstellung: Device ID: 1 (check mark) may only be assigned once...
- Page 6 AX Li Com BOX (Art.-No. SLAXVTEBMODWX000) Quick Guide V.1.4...
- Page 7 AX Li Com BOX (Art.-No. SLAXVTEBMODWX000) Quick Guide V.1.4...
- Page 8 AX Li Com BOX (Art.-No. SLAXVTEBMODWX000) Quick Guide V.1.4...
