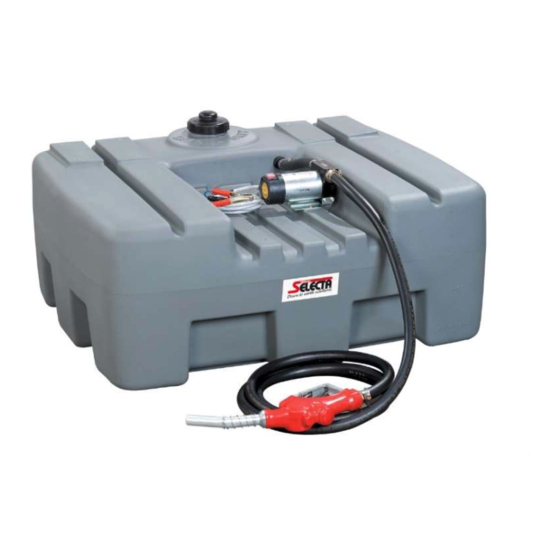

Selecta DIESELPAK 300 Instruction Manual
  1. Manuals
  2. Brands
  3. Selecta Manuals
  4. Service Equipment
  5. DIESELPAK 300
  6. Instruction manual

Selecta DIESELPAK 300 Instruction Manual

Hide thumbs
1
2
3
4
5
6
7

Advertisement

Table of Contents

Instruction Manual
MANSQD-6 REV E 13/08/20
DIESELPAK 300, 400 & 600L
SQDS200-7, SQD300-7, SQDS400-7, SQDS600-7
SILVAN AUSTRALIA PTY. LTD.
ABN 48 099 851 144
VICTORIA (HEAD OFFICE)
NEW ZEALAND
Telephone: +61 (03) 9215 2700
Hamilton, New Zealand
Fax: +61 (03) 9215 2701
Telephone: +64 (07) 8496 033
www.silvan.com.au
Fax: +64 (07) 8496070
www.silvannz.co.nz

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DIESELPAK 300 and is the answer not in the manual?

Questions and answers

Summary of Contents for Selecta DIESELPAK 300

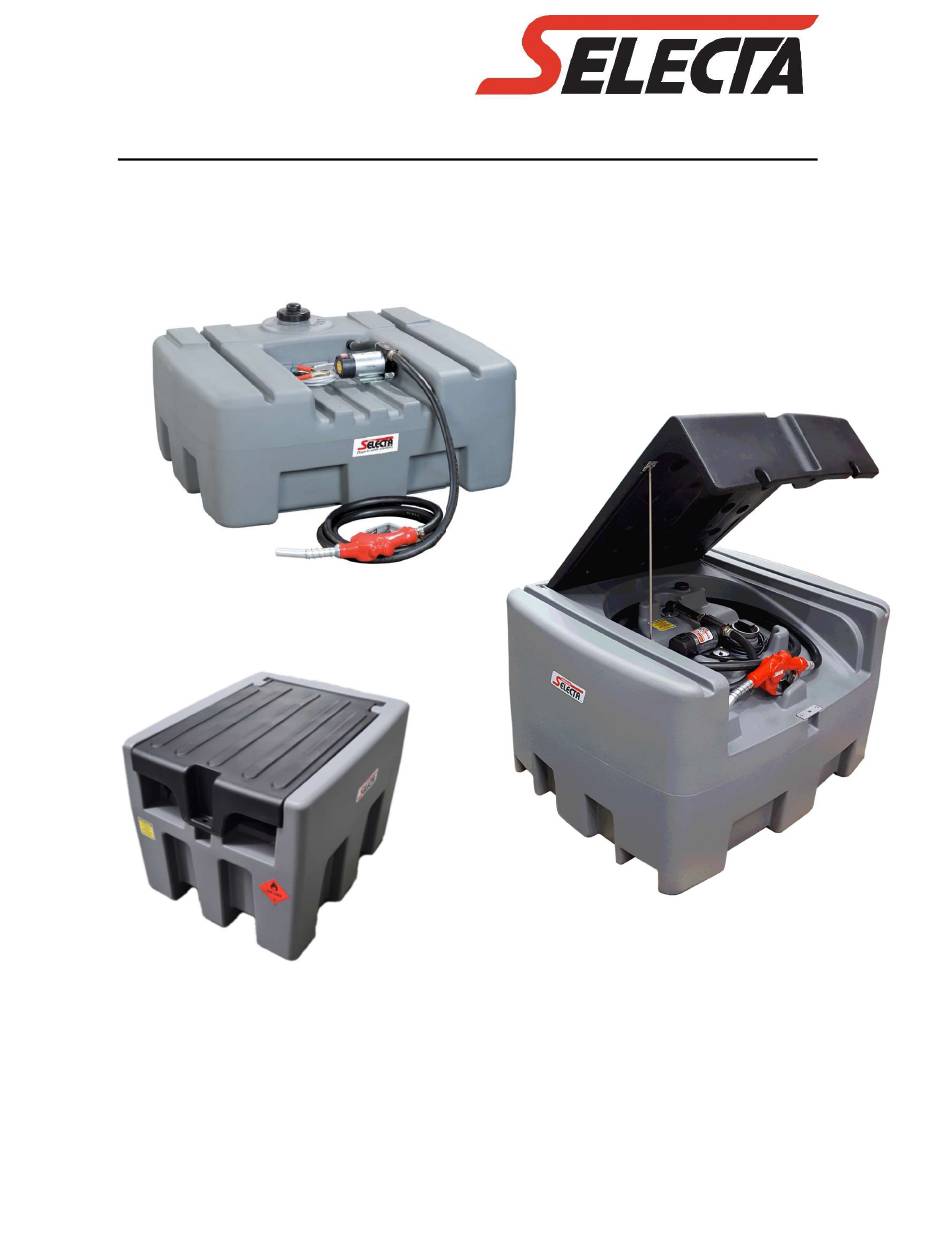

  • Page 1 Instruction Manual MANSQD-6 REV E 13/08/20 DIESELPAK 300, 400 & 600L SQDS200-7, SQD300-7, SQDS400-7, SQDS600-7 SILVAN AUSTRALIA PTY. LTD. ABN 48 099 851 144 VICTORIA (HEAD OFFICE) NEW ZEALAND Telephone: +61 (03) 9215 2700 Hamilton, New Zealand Fax: +61 (03) 9215 2701 Telephone: +64 (07) 8496 033 www.silvan.com.au...

  • Page 2: Warranty Exclusions

    Warranty Silvan Warranty Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

  • Page 3: Safety Instructions

    Safety Instructions Before attempting to operate or install the diesel unit carefully read and take note of the following safety warnings. Failure to comply with these warnings may result in serious injury or death. Warning! This Diesel unit is designed and manufactured solely for the purpose of carrying and pumping Diesel fuel.
  • Page 4 Safety Instructions (cont.) The location and wording of the safety decal fitted to your Silvan Diesel tank is shown below. It is important that all operators read and follow the information on all safety decals before operating the unit. Failure to comply with these warnings could result in serious injury or death. Safety decals should be kept clean and legible at all times.

  • Page 5: Specifications

    Specifications GENERAL: All transfer units come standard with an Auto shut-off gun and all pumps feature a duty cycle for 30 minutes of continuous dispensing, all pumps also contain an internal bypass that allows for the pump to operate for up to a maximum of three minutes when the filling nozzle shuts off without damaging the pump or motor.

  • Page 6: Operation And Installation

    Periodically check the suction foot filter to ensure that is clean and free of debris. This should be done if there is a noticeable decrease in diesel flow rate. There is also a coarse screen mesh at the inlet of the red “Selecta” Auto shut-off gun and can be checked by removing the gun from the swivel.

  • Page 7: Troubleshooting Guide

    Troubleshoot TROUBLE SHOOTING GUIDE Problem Solution  Ensure battery wires are connected to battery properly. Red Pump does not operate Clip to +ve  Check Fuse (25A) under plastic pump switch cover is intact.  Remove pump end cover, connect power to White & Black wires to test To Test &...

This manual is also suitable for:

Dieselpak 400Dieselpak 600Sqds200-7Sqd300-7Sqds400-7Sqds600-7
