Summary of Contents for Monoprice TWE-ANC TrueWireless

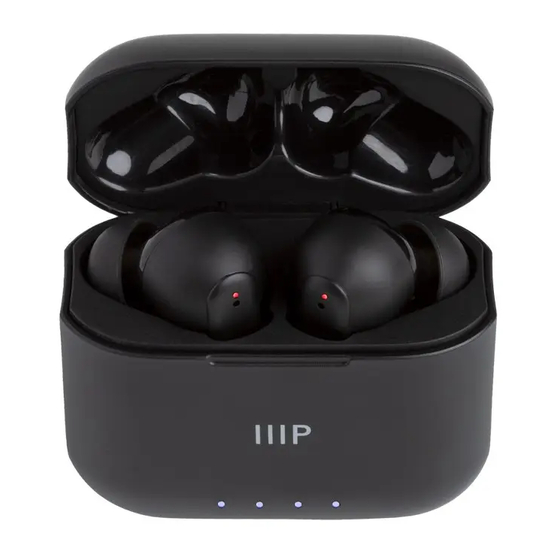

- Page 1 TWE-ANC TrueWireless™ Earphones with Active Noise Canceling P/N 42032 User's Manual...
-
Page 2: Table Of Contents
CONTENTS SAFETY WARNINGS AND GUIDELINES ................................. 4 ONLINE SUPPORT............................................. 6 PACKAGE CONTENTS........................................... 7 PRODUCT OVERVIEW ......................................... 8 Earphones ............................................8 Charging Case..........................................9 CHARGING ..............................................10 OPERATION..............................................13 GETTING STARTED ..........................................11 RESET ..................................................15 SPECIFICATIONS ............................................16... - Page 3 REGULATORY COMPLIANCE .....................................17 Notice for FCC..........................................17 Radio Notice for FCC ......................................19 Notice for Industry Canada ..................................20 Radio Notice for Industry Canada ..............................20...
-
Page 4: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. The earphones carry an IPx5 protection rating, which means that they can resist •... - Page 5 This device contains a Lithium battery. Dispose of this device only in accordance • with local, state, or federal regulations for electronic waste. Charge the battery before first use and at least once every three months to keep • it fresh and capable of holding a full charge. Clean using a soft, dry cloth only.
-
Page 6: Online Support
ONLINE SUPPORT Monoprice is pleased to provide free online support. For order related issues, contact the Customer Service department through the Live Chat link on our website www.monoprice.com or via email at support@monoprice.com For technical issues, contact the Technical Support department through the online chat button on our website www.monoprice.com or by sending an email to... -
Page 7: Package Contents
PACKAGE CONTENTS Please take an inventory of the package contents to ensure you have all the items listed below. If anything is missing or damaged, please contact Monoprice Customer Service for a replacement. 1x Pair TWE-ANC TrueWireless™ Earphones with Large Eartips 1x Charging Case 1x USB Type-A to Type-C®... -
Page 8: Product Overview
PRODUCT OVERVIEW Earphones... -
Page 9: Charging Case
Charging Case... -
Page 10: Charging
CHARGING The earphones will say Low Battery when the charge level is low. Insert the earphones back into the charging case to recharge them. When the earphones are placed in the case, the case will illuminate its Charging Indicators to indicate its battery charge level. When no LEDs or only a single LED illuminates, the case should be charged. -
Page 11: Getting Started
While charging is in progress, the Charging Indicators will illuminate white to show the current charge level, with the right most indicator flashing once per second. When charging is complete, the LEDs will extinguish. GETTING STARTED Remove the earphones from the charging case. Whichever one is removed first will be the Main Device. - Page 12 with each other and the LED Indicator on the Main Device will flash red and blue alternately, indicating that it is in Bluetooth® pairing mode. Open the Bluetooth® settings on your mobile device and scan for available Bluetooth connections. Locate and select the MP42032 entry. If prompted for a passcode, enter 0000 (four zeros).
-
Page 13: Operation
OPERATION Power: The earphones automatically power on and the LED Indicator on the Main Device will flash blue once when removed from the charging case. They will automatically power off and the LED Indicator on the Main Device will flash red once when placed back in the case. - Page 14 Last/Next Track: Triple tap the Touch Panel on the Left earphone to skip back to the previous track. Triple tap the Touch Panel on the Right earphone to skip ahead to the next track. ANC On/Off: Press and hold the Touch Panel on either earphone for about 2 seconds to turn Active Noise Cancelling on or off.
-
Page 15: Reset
Voice Assistant: Press and hold the Touch Panel on the Left earphone for about 2 seconds to turn the Voice Assistant on or off. RESET To reset the earphones to factory default settings, place the earphones in the charging case, open the cover, then press and hold the Multi-function Button for about 10 seconds. The Charging Indicators on the charging case will flash 10 times and the pairing records will be cleared. -
Page 16: Specifications
After clearing the pairing records, open the cover, then press and hold the Multi-function Button for about 3 seconds. The LED Indicator on the Main Device will flash red and blue alternately, indicating that it is in Bluetooth® pairing mode. SPECIFICATIONS Model 42032... -
Page 17: Regulatory Compliance
Standby Time Up to 180 days Waterproof Rating IPx4 REGULATORY COMPLIANCE Notice for FCC This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 18 Modifying the equipment without Monoprice's authorization may result in the equipment no longer complying with FCC requirements for Class B digital devices. In that event, your right to use the equipment may be limited by FCC regulations, and you may be required to correct any interference to radio or television communications at your own expense.
-
Page 19: Radio Notice For Fcc
This FCC Part 15 radio device operates on a non-interference basis with other devices operating at this frequency. Any changes or modification to said product not expressly approved by Monoprice, including the use of non-approved antennas, could void the user’s authority to operate this device. -
Page 20: Notice For Industry Canada
This IC RSS-210 radio device operates on a non-interference basis with other devices operating at this frequency. Any changes or modification to said product not expressly approved by Monoprice, including the use of non-approved antennas, could void the user’s authority to operate this device. - Page 21 Monoprice™ and all Monoprice logos are trademarks of Monoprice Inc. Qualcomm® is a trademark of Qualcomm Incorporated, registered in the United States and other countries. TrueWireless™ is a trademark of Qualcomm Technologies International, Ltd. Qualcomm® TrueWireless™ is a product of Qualcomm Technologies International, Ltd.
