Operation/Instruction Manual

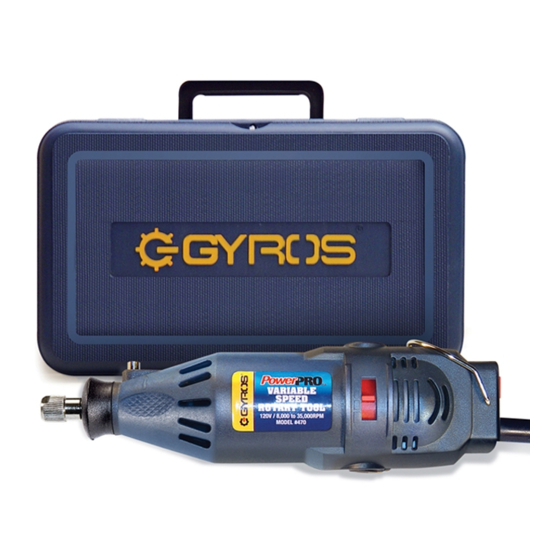

Variable Speed Rotary Tool Kit #40-02470

Your new tool has been engineered and manufactured to GYROS'

high standards

for dependability, ease of operation, and operator safety. Properly cared for,

it will give you years of rugged, trouble-free performance.

CAUTION

CAREFULLY READ THROUGH THIS ENTIRE

OPERATOR'S MANUAL BEFORE USING YOUR NEW TOOL

Pay close attention to the Rules for Safe Operation, Warnings, and Cautions.

If you use your tool properly and only for what it is intended, you will

enjoy years of safe, reliable service.

SAVE THIS MANUAL FOR FUTURE REFERENCE

Table of Contents

Need help?

Do you have a question about the PowerPRO Variable Speed 40-02470 and is the answer not in the manual?

Questions and answers

Summary of Contents for Gyros PowerPRO Variable Speed 40-02470

Page 1 GYROS Operation/Instruction Manual ® Variable Speed Rotary Tool Kit #40-02470 Your new tool has been engineered and manufactured to GYROS’ high standards ® for dependability, ease of operation, and operator safety. Properly cared for, it will give you years of rugged, trouble-free performance.
Page 2: Table Of Contents
TABLE OF CONTENTS SECTION PAGE Technical Data Rules for Safe Operation General Instructions for All Power Tools Rotary Tool Safety Rules Specific Safety Instructions for Rotary Tool Important Safety Information GyrosGuard Safety Shield Information Functional Description and Specifications Assembly Instructions 10-11 Operating Instructions 11-12...
Page 3: Rules For Safe Operation
For service we suggest manual and all labels affixed to the tool. you return the tool to GYROS PRECISION Safety is a combination of common sense, TOOLS, INC. for repair. When servicing, Use staying alert, and knowing how our tool works.
Page 4: General Instructions For All Power Tools
GENERAL INSTRUCTIONS FOR ALL POWER TOOLS ■ Know your power tool. Read the operator’s ■ Wear proper apparel. Do not wear loose manual carefully. Learn the application and clothing, neckties, or jewelry that can get limitations as well as specific potential caught in the tool’s moving parts and cause hazards related to this tool.
Page 5 VARIABLE SPEED ROTARY TOOL WARNING When servicing use only identical Gyros® replacement parts. Use of any other parts may create a hazard or cause product damage. ■ Never stand on tool. Serious injury could ■ Never use in an explosive atmosphere.
Page 6 ■ Before changing the setup, removing cover, users. If you loan someone this tool, loan him guards or blades, UNPLUG the tool and be or her these instructions also. sure the switch is in the “OFF” position. ■ Use proper extension cord. Make sure ■...
Page 7: Rotary Tool Safety Rules
VARIABLE SPEED ROTARY TOOL PowerPro ROTARY TOOL SAFETY RULES WARNING READ AND UNDERSTAND ALL INSTRUCTIONS. FAILURE TO FOLLOW ALL INSTRUCTIONS LISTED BELOW, MAY RESULT IN ELECTRIC SHOCK, FIRE AND/OR SERIOUS PERSONAL INJURY. Do not abuse the cord. Never use the cord WORK AREA to carry the tools or pull the plug from an outlet.
Page 8: Specific Safety Instructions For Rotary Tool
SPECIFIC SAFETY INSTRUCTIONS FOR THE VARIABLE SPEED ROTARY TOOL Accessories must be rated for at least the skin. Bristles or wires will be discharged from speed recommended on the tool warning brush at high speeds. label. Wheels and other accessories running Wear protective gloves and face shield over rated speed can fly apart and cause injury.
Page 9: Important Safety Information
A WORD ABOUT SAFETY WARNING Serious eye or hand injuries can result from the improper selection or use of power tool accessories. When properly used, all Gyros accessories can be operated at the speed rating indicated. Always follow these guidelines: ■...
Page 10: Functional Description And Specifications
FUNCTIONAL DESCRIPTIONS AND SPECIFICATIONS WARNING: Disconnect the plug from the power source before making any assembly, adjustments or changing accessories. Such preventive safety measures reduce the risk of starting the tool accidentally. CARBON BRUSH ACCESS SHAFT LOCK BUTTON HANGER ON/OFF SWITCH COLLET NUT VENTILATION OPENINGS...
Page 11: Operating Instructions
VARIABLE SPEED ROTARY TOOL BALANCING ACCESSORIES - For precision With the shaft lock engaged, use the collet wrench to loosen the collet nut if necessary. work, it is important that all accessories be in good balance (much the same as the tires on The collet nut must be loosely threaded your automobile).
Page 12 To learn about more uses and This is not common, but does happen. the versatility of GYROS accessories and ® Practice on scrap materials first to see how attachments refer to this Owner’s Manual.
Page 13: Operating Speeds
VARIABLE SPEED ROTARY TOOL OPERATING SPEEDS SWITCH ON/OFF Only when the switch is at “OFF” state, can the multifunctional tool be switched on. The data of power supply should be identical with that on the nameplate. SWITCH ON Push the switch at I Position SWITCH OFF Push the switch at O Position ADJUSTMENT OF SPEED...
Page 14: Maintenance
MAINTENANCE If the brush is less then 1/8” long and the SERVICE end surface of the brush that contacts the commutator is rough and/or pitted, they Preventive maintenance performed by should be replaced. Check both brushes. unauthorized personnel may result in misplacing of internal wires and components Usually the brushes will not wear out which can cause serious hazard.
Page 15: Gyrosguard Tm Safety Shield Coupon
VARIABLE SPEED ROTARY TOOL SERVICE EXTENSION CORDS Tool service must be performed by If an extension cord is necessary, a cord with qualified repair personnel only. Service adequate size conductors that is capable of or maintenance performed by unqualified carrying the current necessary for your tool personnel could result in risk of injury.
