CC-400 QT

Set Up and User Instructions

Please Get This Instruction

Manual to the Home Owner.

Plug in QT Pedestal

CC-400 QT Breaker

Power Center

Hardwired QT Controller

Innovative Pool Products LLC. Phone (800) 713-0004 Fax (949) 369-8380

924 Calle Negocio Suite E, San Clemente, CA. 92673 www.InnovativePools.com

Table of Contents

Need help?

Do you have a question about the CC-400 QT and is the answer not in the manual?

Questions and answers

Summary of Contents for INNOVATIVE POOL PRODUCTS CC-400 QT

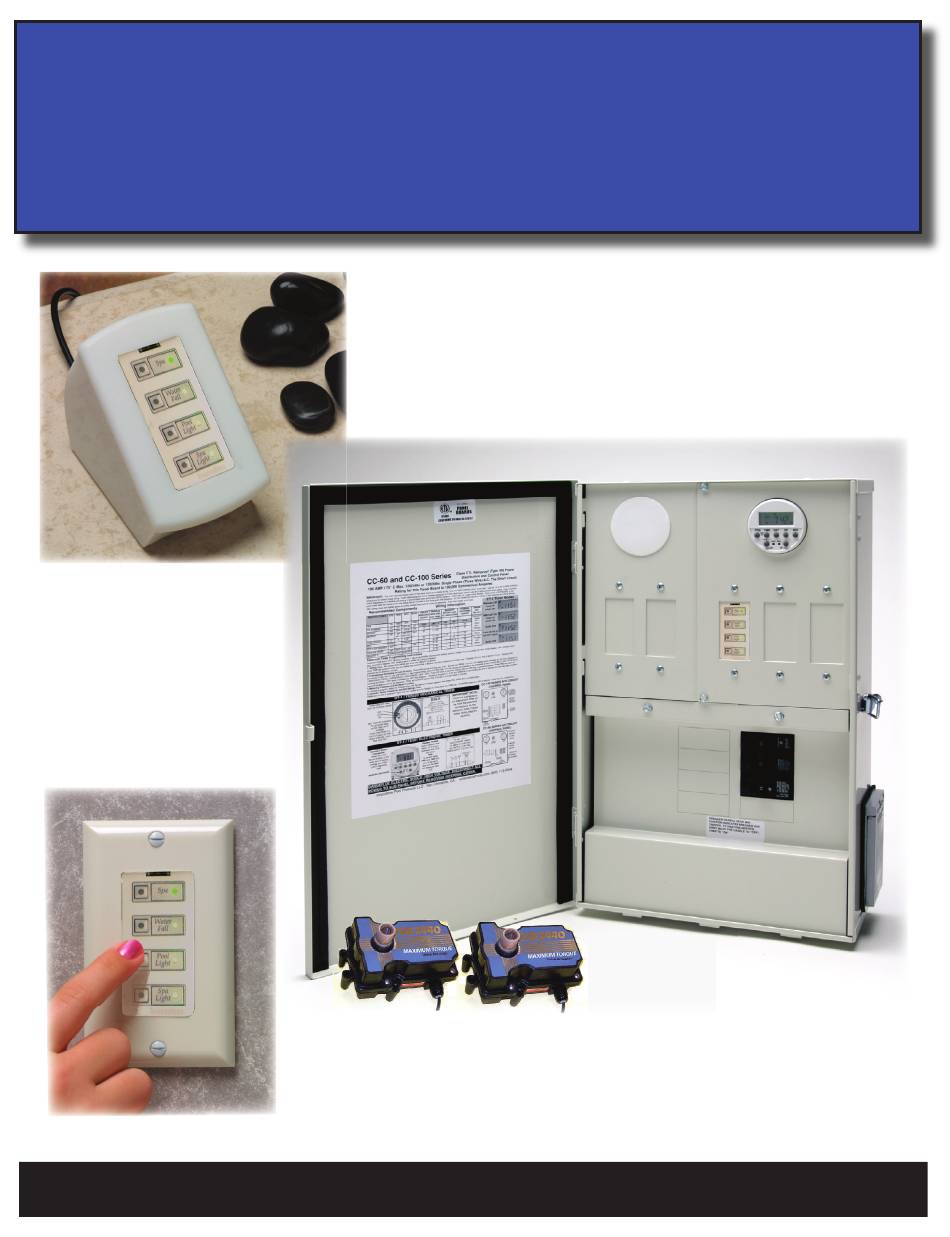

Page 1 Please Get This Instruction Manual to the Home Owner. Plug in QT Pedestal CC-400 QT Breaker Power Center Hardwired QT Controller Innovative Pool Products LLC. Phone (800) 713-0004 Fax (949) 369-8380 924 Calle Negocio Suite E, San Clemente, CA. 92673 www.InnovativePools.com...
Page 2 WARNING - The use of alcohol, drugs or medication can greatly increase the risk of fatal hyperthermia in hot tubs and spas. 5. Keep Power Center door closed. 6. PLEASE SAVE THESE INSTRUCTIONS. This Instruction Manual is intended for the following Innovative Pool Products Panels. CC-60 QT series panels. 4/8 load center, Electronic 7 day programmable timer with battery backup.
Page 3 Table of Contents Safety Instructions Innovative Panels these Instructions Cover. Table of Contents Electronic Timer Programming Instructions. QT Module Safety Instructions. Operation Labeling you QT Controller. UPB Conﬁguration Interference from Nieghboring Controllers. Restoring Factory Default Settings. Advanced Settings. Heater Connections. Heater Select Switch.
Page 4 TE501 ELECTRONIC TIMER INSTRUCTIONS 24 HOUR / 7 DAYS DIGITAL TIMER WITH RECHARGEABLE BATTERY BACKUP. Features 12 memory locations. 6 ON / 6 OFF Summer/winter time change over Random function Manual override with permanent control or automatic control Recall function 24 Hours, 7 days, weekday and weekend programming Operation: Power the main BREAKER for approximately 6 minutes to charge unit.
Page 5 QT Module FUNCTION The Quad Output Module, model UCQ-20, controls four 120VAC, 150W loads based on digital commands received over the power wiring from a Universal Powerline Bus (UPB) controller. Electrical devices connected to the UCQ can be turned ON and OFF using local pushbuttons, or remotely from a model UCQT-20 transmitter or other control- ler.
Page 6 CONFIGURATION Units from the factory are pre-conﬁgured and should operate with linked controllers “out-of-the-box.” INTERFERENCE FROM NEIGHBORING CONTROLLERS The QT Modules are set from the Factory to the following Default Settings Network Name “Network 1” Room Name “New Room Name” Device Name “New UCQ”...
Page 7 The CC-400 QT is a simple control system that controls the Heater via a 3 wire remote connection. The 3 Low Voltage Wires are connect- ed to the Common, Low (POOL), or High (Spa) thermostats on the Heater. Connect the CC-400 QT to the Heater and to the 3 wire screw terminal connection on the CC-400 QTʼs PC board inside the Upper Left Compartment of the CC-400 QT panel at the Pool Equipment.
