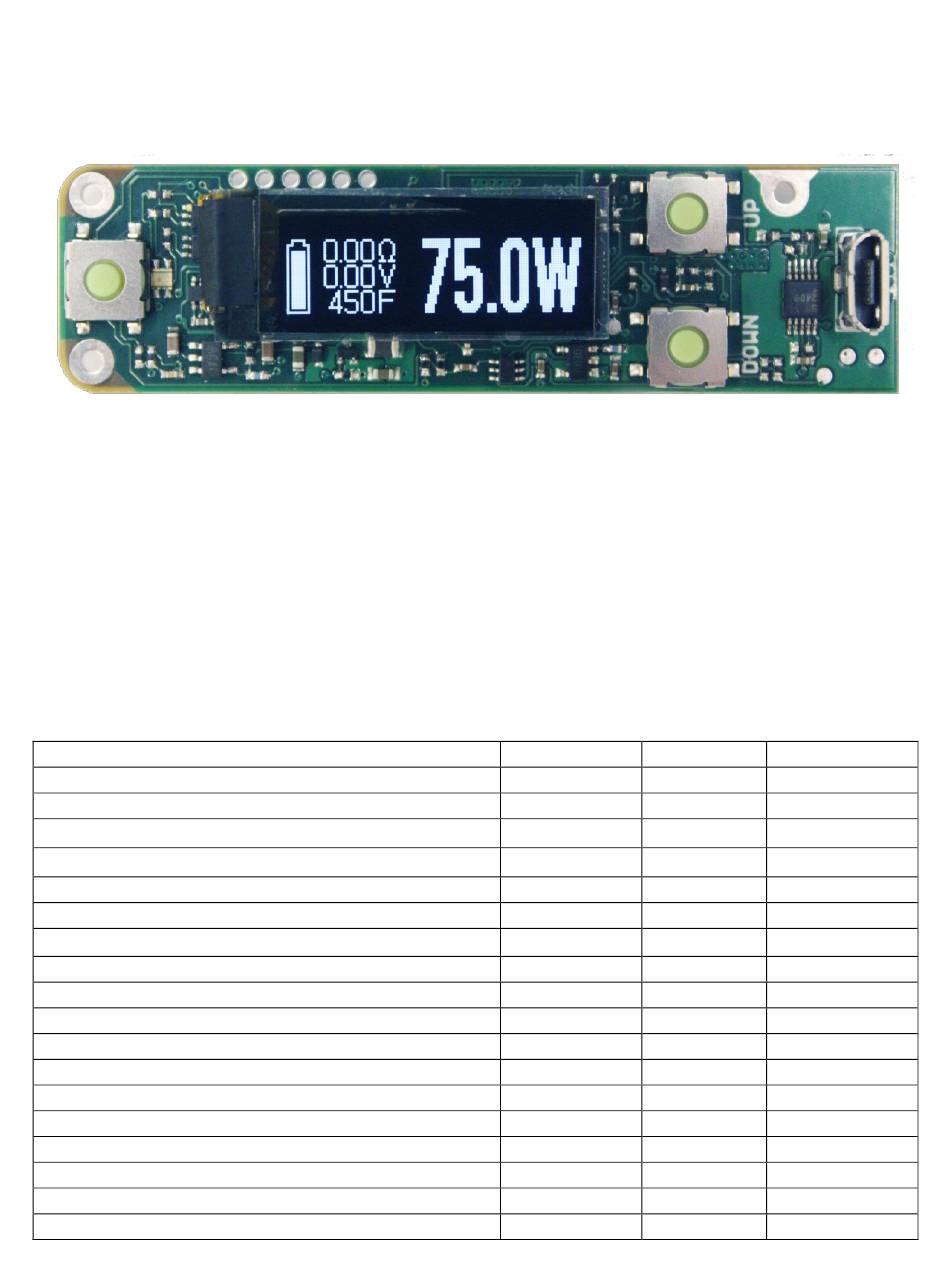

75 Watt Variable Power Module with Temperature Protection and USB
The DNA 75 is a power regulated digital switch-mode DC-DC converter for personal vaporizers. It
features Evolv's patented Wattage Control, Temperature Protection, Preheat, OLED Screen, Reverse
Polarity Protection, onboard programmable multicolor LED and waterproof onboard buttons. The USB
port and Evolv's EScribe software can be used to customize or monitor the user experience. The DNA 75
runs from a single lithium polymer or lithium ion battery, and features battery monitoring and
integrated 1A charger.
Specifications
Output Power
Output Voltage
Output Current, continuous
Output Current, instantaneous peak
Atomizer Resistance, temperature sensing wire, cold
Atomizer Resistance, Kanthal wire
Temperature Limit
Input Voltage
Input Current
Input Current, pulse
Screen On Current
Quiescent Current
Power Down Current
Efficiency
Weight
Footprint
Thickness
Screen size
Evolv DNA 75
Minimum
Typical
1 Watt
.2 Volt
See Graph
.15 Ohm
See Graph
.25 Ohm
°
°
200
F
450
3.0 Volts
3.7 Volts
.5 Amps
12.0 Amps
26mA
7mA
0mA
85%
15g
.71" x 2.60"
.32"
.91" OLED
Max
75 Watts
6.2 Volts
30.0 Amps
40.0 Amps
See Graph
See Graph
°
F
600
F
4.2 Volts
28.0 Amps
32.0 Amps
18mm x 66mm
