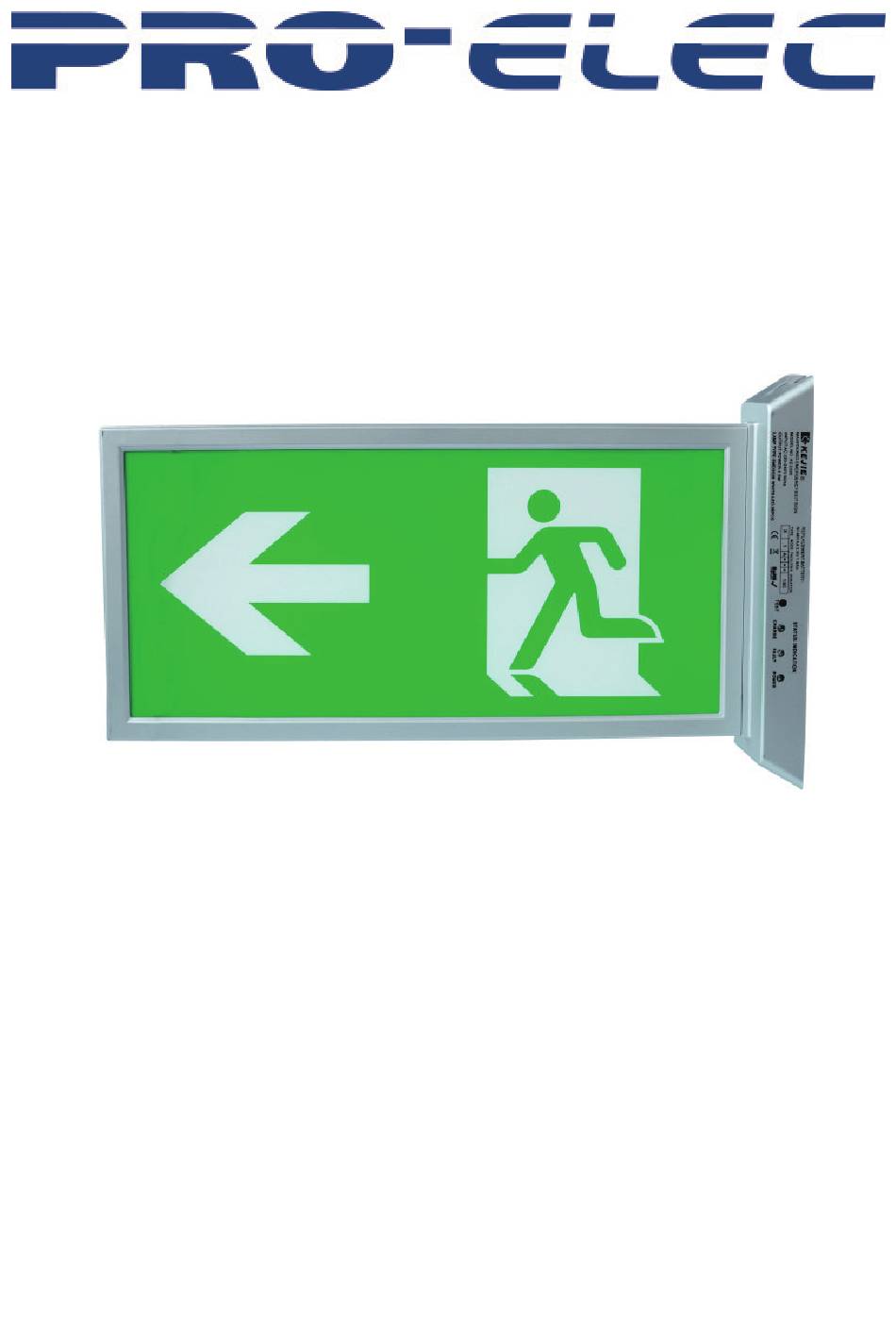

- Page 1 Model No. PEL00584 MAINTAINED LED DOUBLE SIDED WALL MOUNT EMERGENCY LIGHT...
- Page 2 Please read these instructions carefully before starting installation and retain for future reference. The centre page test record can be removed and kept with the building fire safety records. IMPORTANT SAFETY INFORMATION RISK OF ELECTRICAL SHOCK. ALWAYS ISOLATE THE POWER AT THE MAINS BEFORE INSTALLING OR MAINTAINING THIS EMERGENCY LIGHT.
- Page 3 Test Record Sheet on reverse PULL OUT...
- Page 4 Installation, maintenance a Location: Installation date: Installed by: 20__ 20__ Month Test Sign Date Sign Date Short Short Short Short Short 1 hr Short Short Short Short Short...
- Page 5 and operation check record Installation test duration: 20__ 20__ 20__ Sign Date Sign Date Sign Date...
- Page 6 Test Record Sheet on reverse PULL OUT...
- Page 7 Legend diffuser Fixing Hole Test button Wiring Entry Mains Connector LED Connector Battery Connector LED status indicators GREEN - Charging Fixing Hole YELLOW - Fault RED - Power OPERATIONAL CHECKS Note: This equipment must be checked regularly in compliance with local regulation and codes of practice.
- Page 8 Changing the battery • If after a routine operation check, the lamp does not remain lit for the 3 hour period, a new battery pack may be required. Change the battery pack as follows: Isolate from the mains supply. Remove the legend diffuser. Unplug the 2 pin white battery pack connector.
