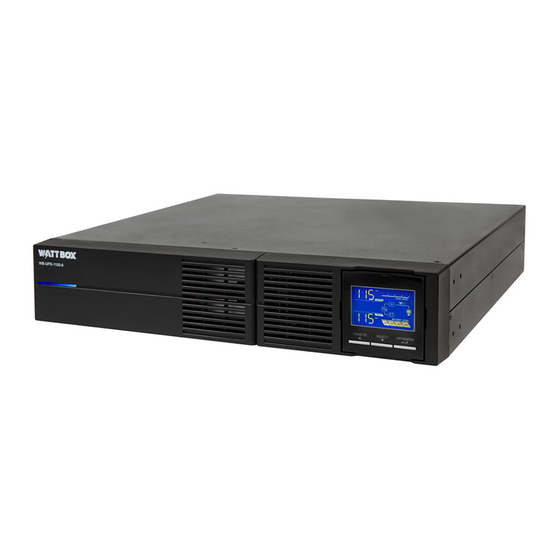

WELCOME TO WATTBOX™
WattBox power products are designed specifically to provide customers with advanced protection for their valuable electronics and custom
integrators with maximum flexibility for installation. Rest assured that WattBox products deliver the protection and safety for your customers' needs.
All WattBox products are UL certified and built with the highest-quality components available.
KEY FEATURES
Inlet Surge Protection –
Built-in protection for the UPS and all connected equipment against power surges.
Automatic Voltage Regulation –
mode and decreased in Buck mode.
Battery Backup –
Battery backup for powering critical equipment during power outages and fluctuations. Batteries can be serviced without turning
the UPS off.
Programmable Outlets –
Emergency Power Off –
Built-in contact for EPO.
PC Connection –
Built-in connections for PC access to the GUI and shutdown control to notify the PC when battery level is critical.
SNMP Card (sold separately) –
critical.

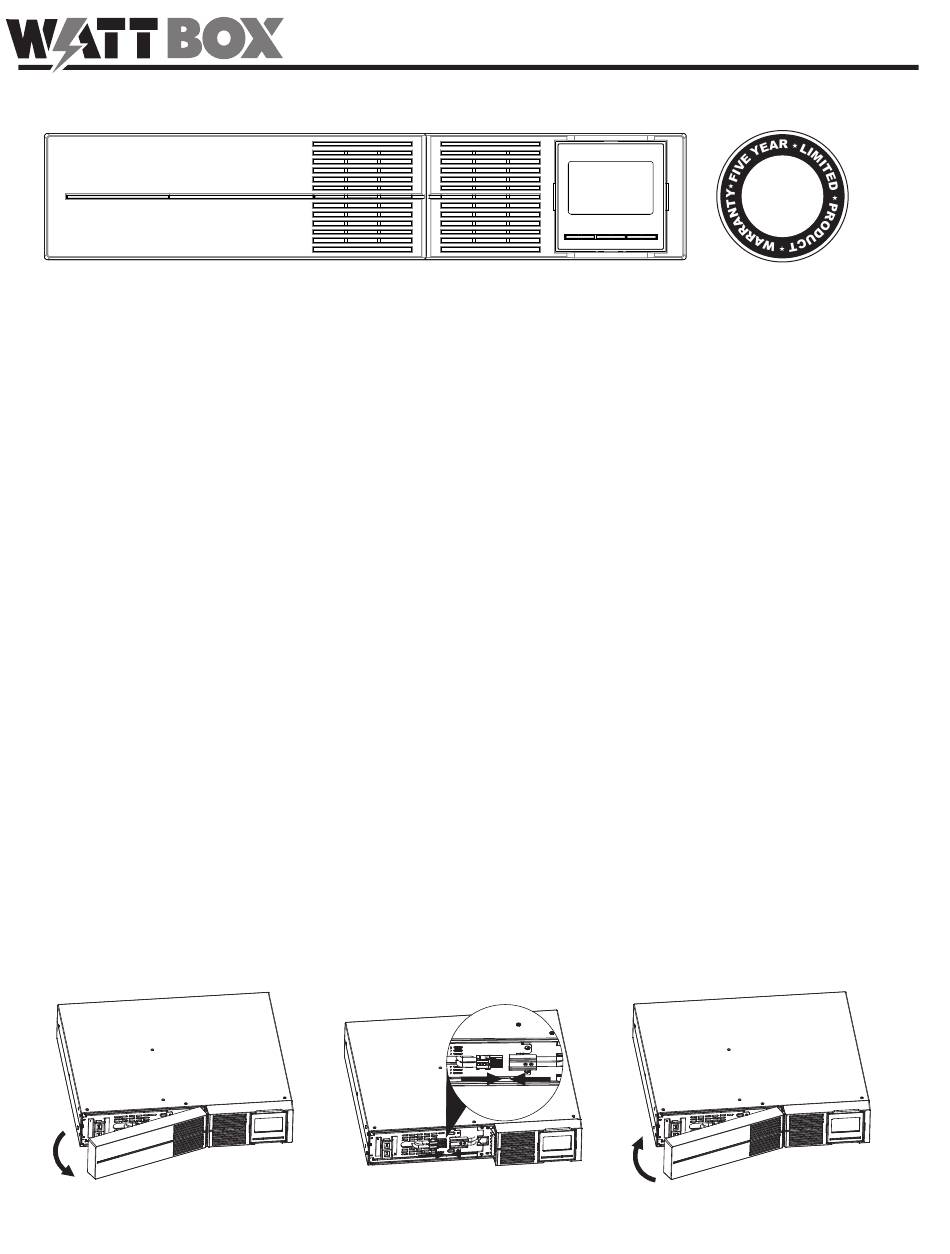

IMPORTANT – BATTERIES ARE DISCONNECTED FOR SHIPPING
When you receive your UPS, the internal backup batteries are disconnected from the circuit board for safety during shipping. Re-connect the wires
before installing the UPS.
Step 1
Remove front panel.
™
Incoming power is monitored to avoid harmful over- or under-voltage conditions. Power is increased in Boost
Noncritical equipment can be connected to programmable outlets that turn off early to save battery power.
Use the SNMP card to access the GUI over Ethernet and notify devices on the network when the battery level is
Step 2
Connect the battery wires.
WB-UPS-1100-8
OWNER'S MANUAL
WB-UPS-1500-8
SURGE
PROTECTOR
$50,000
Step 3
Replace the front panel.
WB-UPS-2000-8
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for WattBox WB-UPS-1100-8
Summary of Contents for WattBox WB-UPS-1100-8
- Page 1 WattBox power products are designed specifically to provide customers with advanced protection for their valuable electronics and custom integrators with maximum flexibility for installation. Rest assured that WattBox products deliver the protection and safety for your customers’ needs. All WattBox products are UL certified and built with the highest-quality components available.
-
Page 2: Package Contents
WB-UPS-1100/1500/2000 Owner’s Manual PACKAGE CONTENTS (1) WB-UPS (2) Upright mounting bases (1) Owner’s manual (4) Rack mounting brackets (1) Detachable power cord (8) Mounting bracket screws (1) USB cable (1) compact disc FRONT PANEL 1. Power LED – Illuminates solid blue when the UPS is powered on. 2. - Page 3 WB-UPS-1100/1500/2000 Owner’s Manual WB-UPS-1100-8 REAR PANEL 13A,120Vac WB-UPS-1500-8 REAR PANEL 16A,120Vac WB-UPS-2000-8 REAR PANEL 20A, 120Vac pg.3...
-
Page 4: Mounting Options
The power outlet for the UPS should be on a dedicated circuit for the best performance. The chart lists the power requirements and outlet required 13A,120Vac for each UPS model. Model Voltage Amperage Outlet Type Required Power Cord Inlet 16A,120Vac WB-UPS-1100-8 120V AC@60 Hz NEMA 5-15r IEC C14 16A,120Vac WB-UPS-1500-8 120V AC@60 Hz NEMA 5-15r IEC C20... -
Page 5: Emergency Power Off (Epo)
WB-UPS-1100/1500/2000 Owner’s Manual CONNECTING EQUIPMENT TO OUTLETS Critical equipment is connected to the uncontrolled outlets so they remain on until the UPS battery is depleted. Noncritical equipment is connected to controlled outlets so they can be set to turn off once the battery is depleted to a set level. Controlled outlets can also be set to remain on for additional critical loads. - Page 6 WB-UPS-1100/1500/2000 Owner’s Manual SNMP CARD (SOLD SEPARATELY) The SNMP card extends communication from the UPS to computers on the network running UPS software. Setup instructions and software are included with the card. SNMP Card Installation Turn the UPS off (Standby mode) and disconnect the power cord. Remove the SNMP card slot cover.
- Page 7 WB-UPS-1100/1500/2000 Owner’s Manual FRONT PANEL LCD OVERVIEW 100% CONVERTER SETTING 100% Function Display Description Backup Time Indicates configuration items. See details in “Menu Options” below. Configuration Info The exclamation indicates that a fault has occurred and the associated fault code is displayed below it.
-
Page 8: Menu Options
WB-UPS-1100/1500/2000 Owner’s Manual LCD MENU SETUP (UPS OFF IN STANDBY) Using the Menu Action Instructions Enter Setup With the UPS powered off in Standby mode, press and hold SELECT for three seconds to enter Setup. Menu Navigation Press ON/MUTE and SELECT to toggle between setup modes 1-7. Change Setting Press OFF/ENTER to configure the current setting on the screen. -
Page 9: Normal Operating Modes
WB-UPS-1100/1500/2000 Owner’s Manual Normal Operating Modes Mode Description ECO Mode ECO (Efficiency Corrective Optimizer) mode is used when the input voltage is within voltage regulation range. The UPS powers the output directly from the mains and disables the internal fan to save energy. Buck Mode-AC Normal Buck mode is used when the input voltage is higher than the voltage regulation range but lower than the high loss point. -
Page 10: Fault Codes
Description Icon Alarm Remedy Low Battery/ One beep per second Let batteries charge. If charging does not solve the problem, contact WattBox Battery Fault Technical Support. Overload Two beeps per second Reduce the connected load on the UPS outlets. Battery Not One beep per second Remove the front panel and reconnect the battery harness. -
Page 11: Troubleshooting
WB-UPS-1100/1500/2000 Owner’s Manual LCD ABBREVIATIONS Display Meaning Display Meaning Enable Disable Temperature Escape Battery Replacement Buck Mode Boost Mode TROUBLESHOOTING Symptom Possible Cause Remedy The UPS behaves as if power is out, The power cord is loose or damaged. Check the power cord connection to the outlet and to the but power at the outlet is normal. -
Page 12: Battery Access
The UPS is equipped with user-replaceable batteries that can be hot-swapped while connected equipment is powered from the supply outlet. Contact WattBox Support to order replacement batteries. Note: With the batteries disconnected for replacement, connected equipment is not protected from power outages. - Page 13 WB-UPS-1100/1500/2000 Owner’s Manual WB-UPS-1100-8 TWO-BATTERY TRAY CONNECTION Step 1 Step 2 Step 3 Replace the batteries in the tray. Wire the Place the new battery packs in the tray as Place the cover back on the battery tray new batteries as shown above.
-
Page 14: Specifications
WB-UPS-1100/1500/2000 Owner’s Manual SPECIFICATIONS MODEL WB-UPS-1100-8 WB-UPS-1500-8 WB-UPS-2000-8 1900VA/1710W @120V Output CAPACITY 1100VA/990W 1500VA/1350W 1740VA/1566W @110V Output INPUT Voltage 110/120V AC Acceptable Voltage Range 81-145V AC Frequency Range 60/50 Hz (Auto sensing) Power Outlet NEMA 5-15 NEMA 5-20 Power Inlet... -
Page 15: Important Safety Instructions
WB-UPS-1100/1500/2000 Owner’s Manual IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS This manual contains important instructions that should be followed during installation and maintenance of the UPS and batteries. Temperature Rating Units are considered acceptable for use in a maximum ambient of 40 °C (104 °F). For Pluggable Equipment The socket-outlet shall be installed near the equipment and shall be easily accessible. -
Page 16: Warranty
WattBox Surge Protector Connected Equipment Protection Policy Valid only in the United States and Canada. It is the policy of WattBox that it will, in its sole discretion, replace, pay to replace at fair market value, or pay to repair, up to the dollar amount specified, equipment that is damaged by an AC power, cable, telephone, or lightning surge while connected to a properly installed WattBox surge protector. - Page 17 If the surge protector shows no signs of AC power or signal line surge damage and is working within design specifications, WattBox will return the unit to you explaining the test results and notifying you of the rejection of your claim. WattBox reserves the right to inspect the damaged connected equipment, parts, or circuit boards.
- Page 20 200427-1016...
