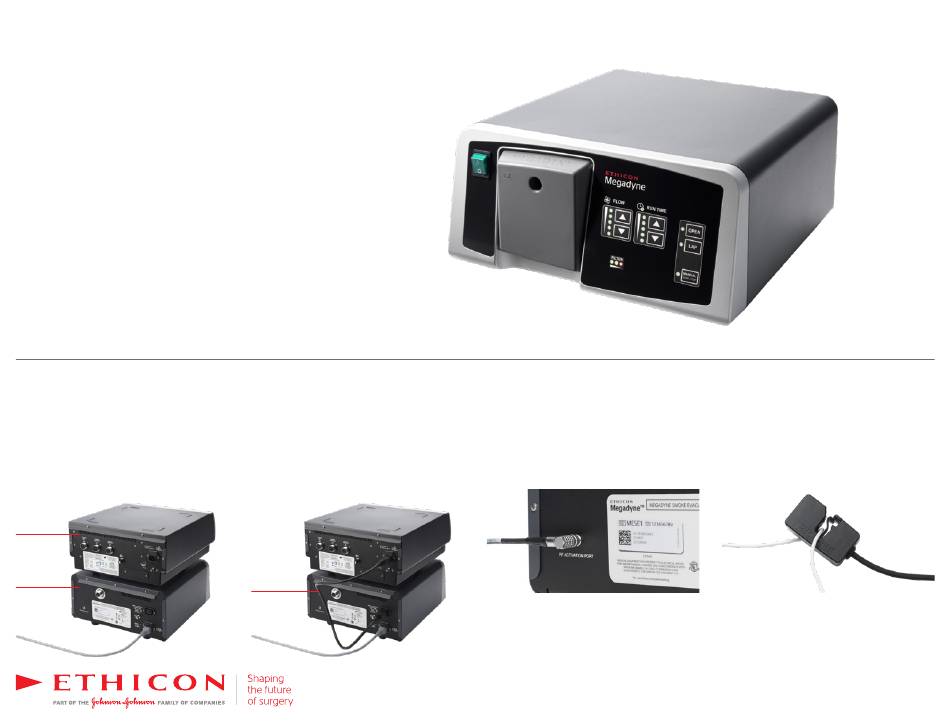

MEGADYNE™ Smoke Evacuator
Optimized Device Performance Guide
Before you begin
1.
Plug in power cord: Insert power
plug into the receptacle on the
MEGADYNE™ Smoke Evacuator.
Generator
Smoke
evacuator
2.
Recommended: Plug in connect
cable. Insert the male connector of
the connect cable into the
receptacle on the MEGADYNE™
Smoke Evacuator and the female
connector into the receptacle on the
electrosurgical generator.
Connect
cable
3.
Alternate: Connect RF sensor to monopolar cord. When connecting smoke
evacuator and electrosurgical generator via connect cable is not possible:
a.
Insert RF sensor (sold separately)
into the RF sensor port on
MEGADYNE™ Smoke Evacuator.
b.
Insert monopolar pencil cord or
return electrode cord into the
receptacle on RF sensor.
