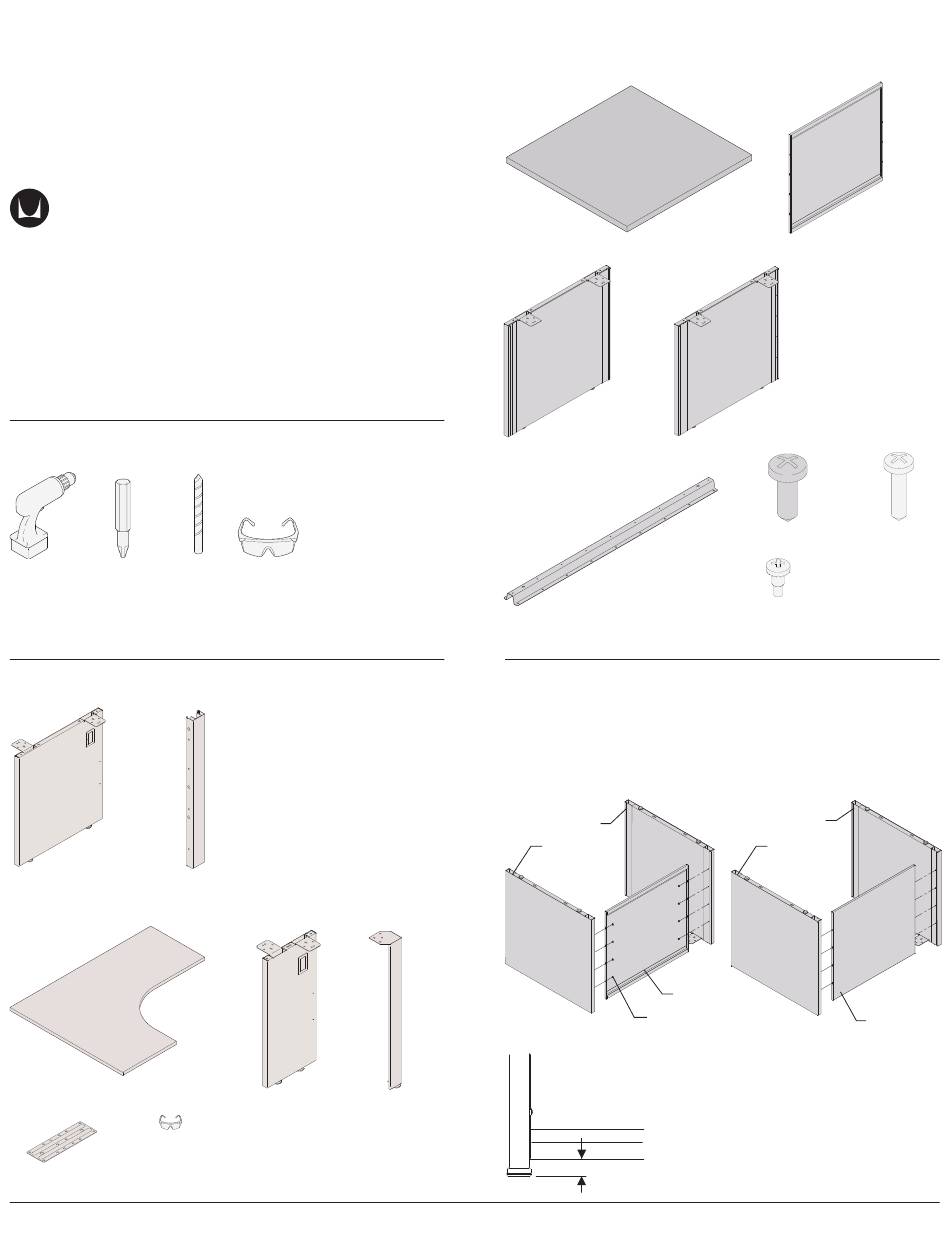

HermanMiller Parts Included - All Desks Canvas Office Landscape Metal Desk - Desk ® Installation and Disassembly for Recycling Instructions Work Surface (FKS10) Modesty Panel (FK700) How to assemble your Desk. Tools Required Left Leg (FK2E3) Right Leg (FK2E3) #10-12 x 3/4 Pan...
Page 2
3.2 Using mounting brackets as guide, drill pilot holes for screws. 3.3 Secure Leg Assembly to Work Surface with (12) #14 Pan Head Screws. Leg Assembly (FK2E3) #14 Pan Head Screw #14 Pan Head Screw Wire Manager Wor Surface (FKS10) 1BPGDV rev C HermanMiller Assembly Instructions...
Page 3
3.3 Drill pilot holes into work surface. 3.4 Secure Leg Assembly to Work Surface with (3) #14 Pan Head Screws. Leg Assembly (FK2E3) #14 Pan Head Screw #14 Pan Head Screw Work Surface (FKS10) Work Surface (FKS10) 1BPGDV rev C HermanMiller Assembly Instructions...
Page 4
2.2 Drill pilot holes into work surface. above. 2.3 Attach Corner Leg to work surface with #14 Pan Head Screws. Corner Leg (FK2C2) #14 Pan Head Screw #14 Pan Head Screw Work Surface (FKS21, FKS22, or FKS23) Wire Manager 1BPGDV rev C HermanMiller Assembly Instructions...
Page 5
5.2 Drill pilot holes into work surface. 5.3 Secure Leg Assembly to Work Surface with (3) or (6) #14 Pan Head Screws. Modesty Panel (FK700) Leg Assembly (FK2E3) #14 Pan Head Screw Pan Head Sheet Metal Screws 1BPGDV rev C HermanMiller Assembly Instructions...
Page 6
9.3 Position Ganging Plate under both worksurfaces. Drill pilot holes into work surface. 9.4 Secure plate to surfaces with (14) #10 Pan Head Screws. Ganging Plate (FK29B) #10 Pan Head Screw #14 Pan Head Screw Shared Leg Assembly (FK2E3) 1BPGDV rev C HermanMiller Assembly Instructions...
Page 7
Panel in vertical direction. each of the slots. Add Note: Use 1” spacer (not provided) under modesty panel while installing. End Leg (FK2E3) 12” Shared (FK2E3) Worksurface (FKS34) #10 Pan Head Sheet Metal Screws 1BPGDV rev C HermanMiller Assembly Instructions...
Page 8
The 12” Shared Peninsula Leg will slide under the Main Work Surface. 7.2 Adjust Levelers up/down to achieve work surface flushness. No gap #10 Pan had screw Ganging Plate (FK29B) 1BPGDV rev C HermanMiller Assembly Instructions...
Page 9
Ferrous metals can be identified using a small magnet for recycling. Non-ferrous metals should be separated and recycled separately. To disassemble product, reverse the above installation steps. 1BPGDV rev C HermanMiller Assembly Instructions...
