Gearbox
Patio Blind
Installation
TOOLS REQUIRED
• Drill with 3mm Drill Bit
• 3/8 Tek Screw Drill Bit
• 10mm Spanner
• Allen Key
Gearbox Mount
QUESTIONS? PLEASE CONTACT US
0800 244 266
STRAITLINE CANVAS admin@straitline.co.nz 765 Tremaine Avenue, Palmerston North, NZ www.straitline.co.nz
Idler End Mount

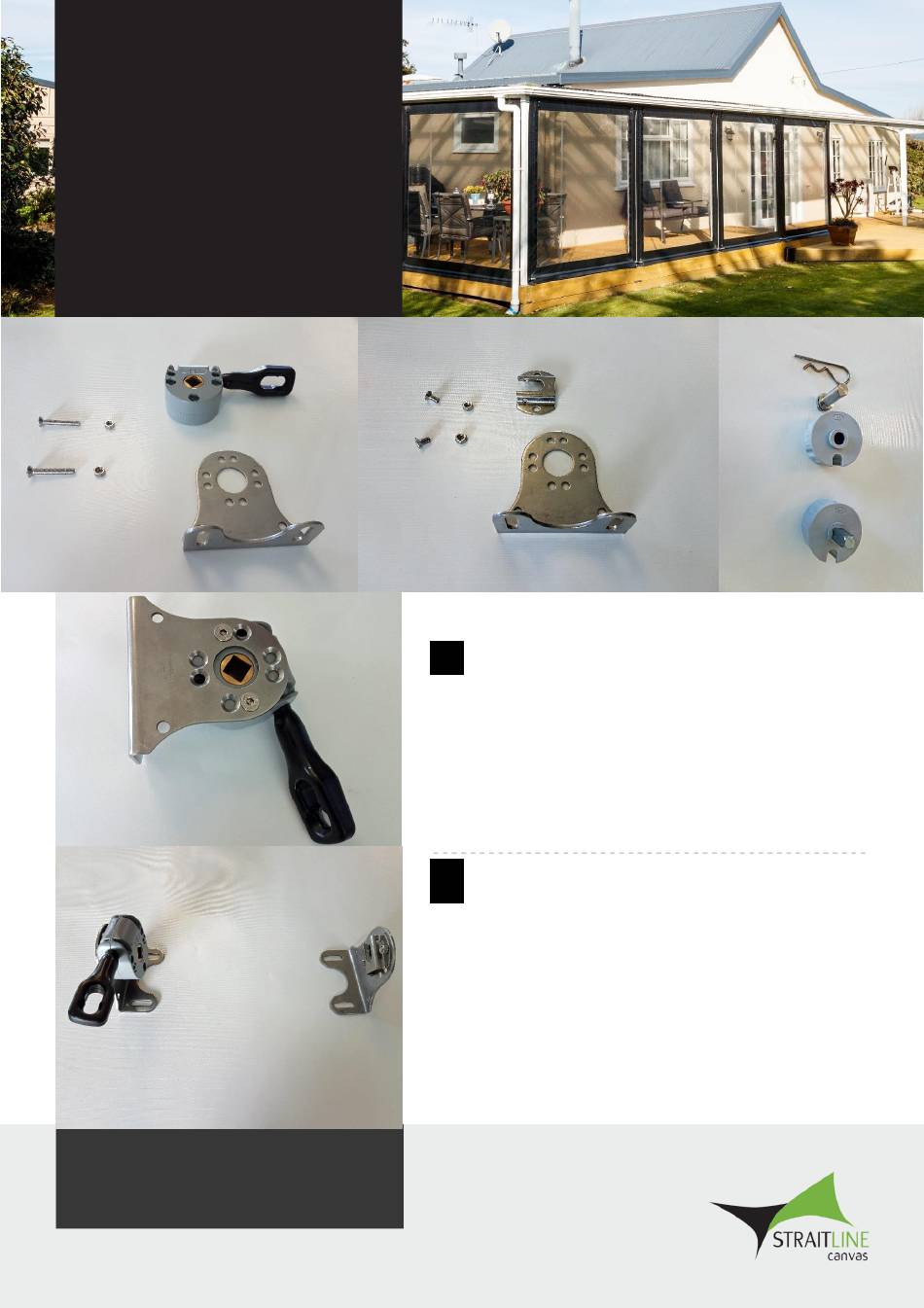

Assemble the gearbox mount. Insert the bolts
1
through the correct holes for the desired
alignment, then attach & tighten the nuts.
Check the gearbox is correctly aligned. Will it
be on the left or right of the blind? Note: the
gearbox will need to be on an angle (as shown)
to ensure the winder handle is easy to use.
2
Assemble the idler end mount. Align the slot to
match the gearbox mount, insert bolts in the
correct holes, then attach & tighten the nuts.
Check the slot is correctly aligned, so the roller
tube is level. Make sure the open end of the slot
will be facing up when installed (if it isn't, the
roller tube will fall out). Check there will be
enough clearance above the brackets to install
the blind (it slots in from above).
Page 1
Idler & Split Pins
Idler Insert
Gearbox Insert
Stage 1: Before Blind
Manufacture
