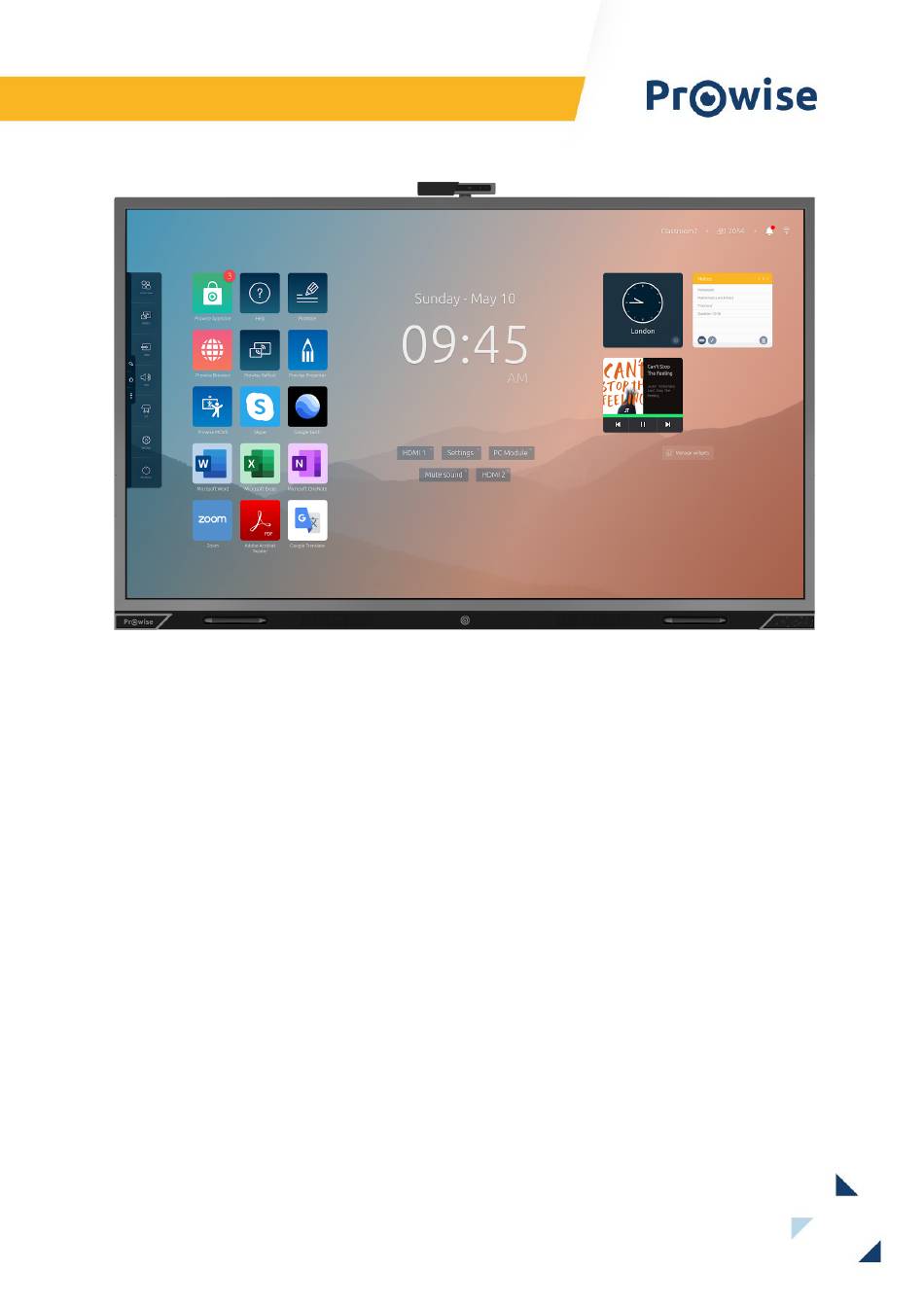

- Page 1 This user manual applies to the Prowise Touchscreens with the following model numbers: 55": PW.1.15055.1001 65": PW.1.15065.1001 75": PW.1.15075.1001 86": PW.1.15086.1001 ...
- Page 2 5.3. Connect to a network 33 5.4. Adjusting the volume 34 6. Prowise Central 35 6.1. Prowise Central 35 6.2. The Prowise Central menu 36 7. Changing the settings 37 8. OTA (Over the Air) updates 38 ...
- Page 3 9.2 Angle at which to use the remote control 41 9.3 Replacing the batteries of the remote control 42 10. Connecting auxiliary equipment 43 10.1. Connecting the Prowise Touchscreen to an external PC 43 10.2. Connecting the Prowise Touchscreen to audio equipment 44 10.2.1. Connecting headphones 44 ...
-
Page 4: Important Safety Instructions
2.2. Placement ● We recommend not to install the touchscreen yourself or by a third party. Let Prowise or a certified Prowise partner install or mount the touchscreen to avoid possible damage. Prowise can not be held responsible for any damage or injury caused by incorrect installation by third parties. Damage due to ... - Page 5 This can cause injuries or damage to yourself and/or the touchscreen. Always contact Prowise or a certified partner in case of a defect, to avoid damage. Contact information can be found at: w ww.prowise.com/en/contact . ...
-
Page 6: Recycling And Disposal
2.5 Recycling and disposal If you have questions about the correct disposal of your touchscreen, please contact Prowise or a certified partner. Packaging The device is packaged to prevent transport damage. Packaging is made of resources that can be reused or ... -
Page 7: Place Of Installation
The Prowise Touchscreen can be used at an ambient temperature from 0 °C to +38 °C (32 °F to 100,4 °F) and relative humidity from 10% to 90% (without condensation). ... - Page 8 3.2. Cabling Only use the power cable supplied by Prowise to connect the Prowise Touchscreen to the mains power supply. The touchscreen must be placed close to the electrical outlet and the electrical outlet should be easy to reach. ...
-
Page 9: Wifi Module
3.3. WiFi module The Prowise Touchscreen is equipped with a WiFi module. Follow the steps below to successfully install the WiFi module. HAZARD WARNING! Choking hazard. This product contains small parts that form a choking hazard for children. Keep this product out of reach for children when not installed into the touchscreen. ... - Page 10 (Please note the OPS PC module is optional) CAUTION! Please ensure the power cable is not connected to the main power supply while installing the OPS PC module. Unscrew the screws www.prowise.com 10 / 53 ...
- Page 11 2. Remove the cover plate 3. Insert the OPS PC module into the slot www.prowise.com 11 / 53 ...
- Page 12 4. Becoming familiar with your product We recommend not to install the touchscreen yourself or by a third party. Have Prowise or a certified partner install or mount your touchscreen, to avoid possible damage. Always adjust the screen to the correct height before use. Avoid standing in a stooped or bent posture and ...
-
Page 13: Product Specifications
1200:1 Dynamic contrast ratio 5000:1 Brightness 350 cd/m2 Number of colours 10 Bit (1.07B) Viewing angle 178º Panel refresh rate 60Hz PC module slot Yes, OPS slot Touch type www.prowise.com 13 / 53 ... - Page 14 Microphone Type Microphone Array Number of Microphones 4 Auto Switch (Windows/Central) Yes ProWrite Number of pens 2 Multi-colour writing Yes Multi-size writing Yes Windows Ink support Yes www.prowise.com 14 / 53 ...
- Page 15 Prowise Central Android version Android 8.0 Storage 32GB Memory 4GB Over-the-Air Updates (OTA) Yes NFC reader / writer Yes Connections HDMI out 2.0 (4K @ 60Hz) 1 DisplayPort 1.2 1 HDMI 2.0 (CEC & HDCP2.2) ...
- Page 16 51.5 x 31.64 x 3.5 inches Box dimensions (W x H x D) 1420 x 910 x 240 mm 55.91 x 35.83 x 9.45 inches VESA standard VESA 400 x 400 mm www.prowise.com 16 / 53 ...
- Page 17 VESA 100 x 100 mm Certifications CE: EMC + LVD / FCC-IC / RoHS / UL + CB, RCM and Energy Star Warranty 5 years standard (extendable to 7 or 8 years) www.prowise.com 17 / 53 ...
- Page 18 4.2. In the box www.prowise.com 18 / 53 ...
- Page 19 Wi-Fi antenna (2x) ProWrite® dual writing pen NFC card (2x) Pen tips (4x) 10. Cable box: 11. Safety instructions Prowise Touchscreen 12. User manual Wi-Fi module 13. Power cable - EU 5 metres 14. USB touch cable 15. HDMI cable ...
-
Page 20: Product Overview
Display Port 1.2 2 x HDMI 2.0 CEC HDMI 2.0 ARC USB Type-B (Touch port) LAN port USB 2.0 USB 2.0 AC-in and main power switch (bottom) Main power switch AC input www.prowise.com 20 / 53 ... -
Page 21: Touchscreen Control
Component video input (YPbPr) AV video input (Composite) 4.4. Touchscreen control The Prowise Touchscreen is fitted with 20-points multi-touch. The screen recognises up to 20 simultaneous touch points. This allows you to use the touchscreen with multiple people at once. ... - Page 22 Open Prowise Place five fingers of one hand on the screen for at least 2 Central menu seconds. The menu will appear. Right-click (context menu) Tap and hold one finger on the screen for a few seconds (PC module) ...
- Page 23 4.6. Microphone The Prowise Touchscreen has 4 wide area microphones. Thanks to these 4 wide area microphones, the recording quality will be excellent, making the Prowise Touchscreen ideal for video conferencing. Use the microphone in Prowise Central or if a PC module is installed. ...
- Page 24 Hold the NFC card in front of the tab to log in using NFC technology. The remote control’s IR sensor is located here. ● PLEASE NOTE! To log in with an NFC card, the card must first be configured using the Prowise Central settings menu. ...
- Page 25 4.8. ProWrite® technology The Prowise Touchscreen is equipped with two pens. These are conveniently located at the front of the screen and will automatically click into place when you hold a pen in front of the docking location. ...
- Page 26 Clean the screen with a dry, lint-free, microfibre cloth. Ensure this cloth is free of impurities. If you wish to use a cleanser, always use a cleanser recommended by Prowise. Do not use any aggressive cleansers as these can cause damage to the screen. ...
-
Page 27: Getting Started
There are a few different options to turn on the touchscreen once activated: Press the control button located in the middle of the speaker bar of the touchscreen ● Press the on/off button on the supplied remote control ● www.prowise.com 27 / 53 ... - Page 28 Select 'Shut down' if you want to shut down the touchscreen immediately, or wait 15 seconds. Press 'Cancel' to cancel the shut-down process. Turn off the main power supply by using the power switch on the left hand side of the touchscreen (see picture). www.prowise.com 28 / 53 ...
- Page 29 PLEASE NOTE! Turn the touchscreen off completely when moving the screen by turning off the power switch and removing the power cable from the screen. www.prowise.com 29 / 53 ...
-
Page 30: Starting Your Device For The First Time
The welcome screen will appear and the Prowise Central environment will open right after that. Open the Prowise Central menu to get started on your touchscreen. Open the menu by placing 5 fingers of one hand on the screen for at least 2 seconds, by pressing the menu icon or by using the ... -
Page 31: Connecting To A Network
Follow the steps below to view the specifications of the network: Place five fingers on the screen for at least 2 seconds to launch the Prowise Central menu Open the sidebar to access the settings menu Select the submenu ‘Connectivity’ ... -
Page 32: Adjusting The Volume
With the Central Menu: Adjust the volume with this feature of the Prowise Central menu. Drag the dot to the right to increase the volume and to the left to decrease the volume. Click on the mute button to turn off all sound at ... - Page 33 Home icon: go to Prowise Central home Three dots: open the Prowise Central menu The Prowise Central menu unfolds on the left-hand side of the Prowise touchscreen. You can open the Prowise Central menu in three ways. Press the three dots on the left-hand side of the screen ...
-
Page 34: Changing The Settings
7. Changing the settings The Central settings menu is located in the menu. Here you can adjust multiple settings of your Prowise Touchscreen, such as: display and audio settings, connectivity, NFC and other settings. For more information about adjusting the settings in Prowise Central, please read the Prowise Central manual. ... - Page 35 OTA updates – over-the-air updates – ensure that you always have the latest software version installed on the touchscreen. The only thing you need for the OTA updates is an internet connection with Prowise Central. This can either be a Wi-Fi or an Ethernet connection. ...
-
Page 36: Remote Control
9. Remote control 9.1. Schematic overview and explanation of the buttons www.prowise.com 36 / 53 ... - Page 37 Navigation button – Down 7 Ok Confirm selection. 8 If an input other than Prowise Central home is active, this button can be used to return to Prowise Central home. 9 Opens the Prowise Central input selection. ...
- Page 38 CAUTION! Any obstacles between the remote control and the receiver of the touchscreen can obstruct the signal and cause the remote control to not work properly. www.prowise.com 38 / 53 ...
- Page 39 The leaking chemicals are toxic and must never come into contact with the mouth, skin or eyes. PLEASE NOTE! Only use 1.5 V AAA batteries. Insert them as shown by the instructions on the remote control. www.prowise.com 39 / 53 ...
-
Page 40: Connecting Auxiliary Equipment
HDMI source. PLEASE NOTE! W e recommend using a cable that is as short as possible for the best connection quality and is no longer than 3 metres. www.prowise.com 40 / 53 ... - Page 41 The composite video signal is a signal that emits transmits both video and audio. You can connect the composite video with the Prowise Touchscreen with a 3.5mm Jack plug (Male with 3 rings) in the AV in port (Audio L, Audio ...
-
Page 42: Connecting Headphones
10.2. Connecting the Prowise Touchscreen to audio equipment 10.2.1. Connecting headphones Connect headphones by plugging them into the analogue audio output “headphones”. Use the touchscreen’s volume control to adjust the headphones volume. 10.2.2. Connecting an amplifier ... - Page 43 HDMI cable into the touchscreen’s HDMI port with ARC support (3) and the other end in the external audio device’s HDMI port. www.prowise.com 43 / 53 ...
- Page 44 CEC. This allows these devices to be controlled via the touchscreen’s remote control. Connect a device via CEC by inserting an HDMI cable in the touchscreen’s HDMI port (3). www.prowise.com 44 / 53 ...
-
Page 45: Serial Port Settings
Pin2 is TXD Pin3 is RXD. Pin to Pin connection as below. Serial Port Settings Items Value Baud Rate 115200bps (fixed) Data Bits 8 (fixed) Stop Bits 1 (fixed) Parity None (fixed) Stream Control None (fixed) www.prowise.com 45 / 53 ... -
Page 46: Protocol Description
AA BB CC 03 01 01 05 DD Unmute EE FF AA BB CC 03 07 value value 0 <-> 100 (hex Bass checksum DD EE FF code) www.prowise.com 46 / 53 ... - Page 47 DD EE FF AA BB CC 38 02 04 3E DD Language: Italian EE FF AA BB CC 38 02 05 3F DD Language: Spanish EE FF www.prowise.com 47 / 53 ...
- Page 48 NUM_1 EE FF AA BB CC 07 10 00 17 DD NUM_2 EE FF AA BB CC 07 11 00 18 DD NUM_3 EE FF www.prowise.com 48 / 53 ...
- Page 49 DD EE FF AA BB CC 07 4A 00 51 Enter DD EE FF AA BB CC 07 0A 00 11 Back / Escape DD EE FF www.prowise.com 49 / 53 ...
- Page 50 Red EE FF AA BB CC 07 5D 00 64 Green DD EE FF AA BB CC 07 5E 00 65 DD Yellow EE FF www.prowise.com 50 / 53 ...
- Page 51 PC 89 DD EE FF AA BB CC 81 0A 00 Prowise Central 8B DD EE FF AA BB CC 82 00 AA BB CC 03 02 00 VOLUME - value Audio Obtain volume value checksum DD ...
- Page 52 53 DD EE FF AA BB CC 40 0F 05 SPANISH 54 DD EE FF AA BB CC 40 0F 06 SWEDISH 55 DD EE FF www.prowise.com 52 / 53 ...
- Page 53 46 DD EE FF EE FF AA BB CC 40 07 Obtain custom AA BB CC 39 07 00 Custom value checksum DD CUSTOM item 40 DD EE FF EE FF www.prowise.com 53 / 53 ...
