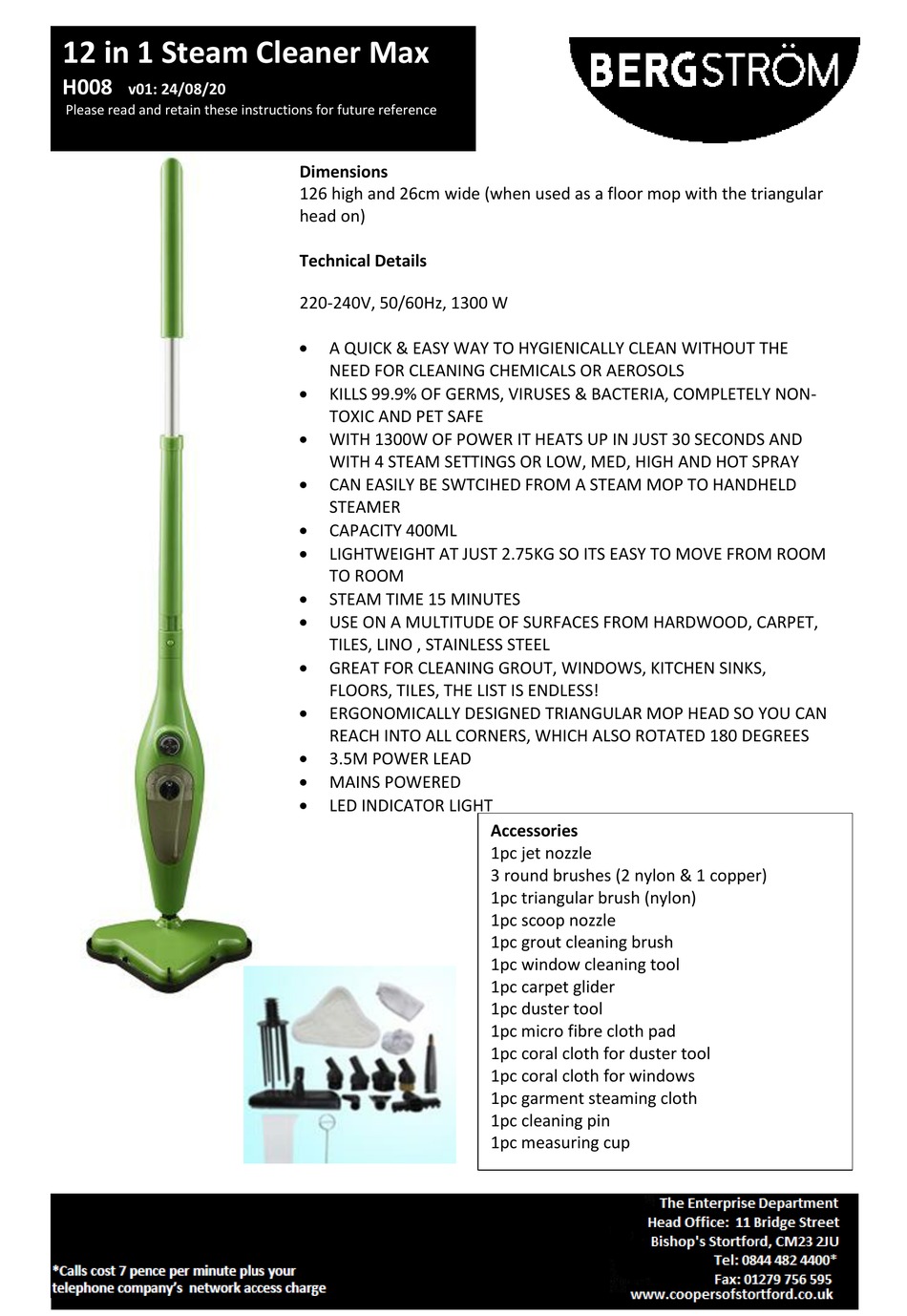

12 in 1 Steam Cleaner Max

H008

v01: 24/08/20

Please read and retain these instructions for future reference

Dimensions

126 high and 26cm wide (when used as a floor mop with the triangular

head on)

Technical Details

220-240V, 50/60Hz, 1300 W



A QUICK & EASY WAY TO HYGIENICALLY CLEAN WITHOUT THE

NEED FOR CLEANING CHEMICALS OR AEROSOLS



KILLS 99.9% OF GERMS, VIRUSES & BACTERIA, COMPLETELY NON-

TOXIC AND PET SAFE



WITH 1300W OF POWER IT HEATS UP IN JUST 30 SECONDS AND

WITH 4 STEAM SETTINGS OR LOW, MED, HIGH AND HOT SPRAY



CAN EASILY BE SWTCIHED FROM A STEAM MOP TO HANDHELD

STEAMER



CAPACITY 400ML



LIGHTWEIGHT AT JUST 2.75KG SO ITS EASY TO MOVE FROM ROOM

TO ROOM



STEAM TIME 15 MINUTES



USE ON A MULTITUDE OF SURFACES FROM HARDWOOD, CARPET,

TILES, LINO , STAINLESS STEEL



GREAT FOR CLEANING GROUT, WINDOWS, KITCHEN SINKS,

FLOORS, TILES, THE LIST IS ENDLESS!



ERGONOMICALLY DESIGNED TRIANGULAR MOP HEAD SO YOU CAN

REACH INTO ALL CORNERS, WHICH ALSO ROTATED 180 DEGREES



3.5M POWER LEAD



MAINS POWERED



LED INDICATOR LIGHT

Accessories

1pc jet nozzle

3 round brushes (2 nylon & 1 copper)

1pc triangular brush (nylon)

1pc scoop nozzle

1pc grout cleaning brush

1pc window cleaning tool

1pc carpet glider

1pc duster tool

1pc micro fibre cloth pad

1pc coral cloth for duster tool

1pc coral cloth for windows

1pc garment steaming cloth

1pc cleaning pin

1pc measuring cup

Table of Contents

Need help?

Do you have a question about the Max H008 and is the answer not in the manual?

Questions and answers

Summary of Contents for Bergstrom Max H008

Page 1: Technical Details
12 in 1 Steam Cleaner Max H008 v01: 24/08/20 Please read and retain these instructions for future reference Dimensions 126 high and 26cm wide (when used as a floor mop with the triangular head on) Technical Details 220-240V, 50/60Hz, 1300 W ...
Page 2: Table Of Contents
12 in 1 Steam Cleaner Max Instructions for Use H008 Please read and retain these instructions for future reference v001: 24/08/20 Contents Technical Details ............................1 WARNINGS AND SAFETY INSTRUCTIONS: ....................3 Parts ................................ 4 Accessories .............................. 5 How to assemble the steam mop......................5 How to use the steam cleaner ........................
Page 3: Warnings And Safety Instructions
12 in 1 Steam Cleaner Max Instructions for Use H008 Please read and retain these instructions for future reference v001: 24/08/20 WARNINGS AND SAFETY INSTRUCTIONS: WHEN USING ELECTRICAL APPLIANCES, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED:  READ ALL INSTRUCTIONS BEFORE USE. ...
Page 4: Parts
12 in 1 Steam Cleaner Max Instructions for Use H008 Please read and retain these instructions for future reference v001: 24/08/20 WARNING: DANGER OF SCALDING ASSEMBLY INSTRUCTIONS / INSTRUCTIONS FOR USE: Unpack the components carefully. Please check all parts have been removed from the packaging. Parts Page No.
Page 5: Accessories
12 in 1 Steam Cleaner Max Instructions for Use H008 Please read and retain these instructions for future reference v001: 24/08/20 Accessories How to assemble the steam mop Please make sure that the unit is unplugged from an electrical outlet and the power switch is in the “OFF”...
Page 6 12 in 1 Steam Cleaner Max Instructions for Use H008 Please read and retain these instructions for future reference v001: 24/08/20 2. Insert the handle tube into the designated opening in the main body until it gets locked in place with the handle tube lock button.
Page 7: How To Use The Steam Cleaner
12 in 1 Steam Cleaner Max Instructions for Use H008 Please read and retain these instructions for future reference v001: 24/08/20 4. Place the micro fibre cloth on the bottom of the mop head and make sure all the loops on the cloth are aligned with the gripping hooks on the bottom of the mop head then press the cloth against the mop head so the loops on the cloth catch the gripping strips on the mop head and...
Page 8 12 in 1 Steam Cleaner Max Instructions for Use H008 Please read and retain these instructions for future reference v001: 24/08/20 Steam Cleaner. When in doubt, please consult a flooring specialist. Only use the carpet glider on carpeting and rugs. Use the carpet glider on other floor surfaces will cause streaking and possibly scratching.
Page 9 12 in 1 Steam Cleaner Max Instructions for Use H008 Please read and retain these instructions for future reference v001: 24/08/20 Replace the water tank cap and turn clockwise approximately 90 ° to the “CLOSE” position until the cap is tightened securely.
Page 10 12 in 1 Steam Cleaner Max Instructions for Use H008 Please read and retain these instructions for future reference v001: 24/08/20 7. Select one of the following Steam Regulator positions: 1 – Low – 2-Medium, 3-High and 4-Hot spray 1-Low and 2-Medium Setting: Ideal for cleaning all hard floors, such as linoleum, ceramic , marble, wood etc 3 High Setting: Ideal for cleaning bathrooms, kitchens, window sills, car wheels etc.
Page 11: How To Assemble Hand-Held Steamer
12 in 1 Steam Cleaner Max Instructions for Use H008 Please read and retain these instructions for future reference v001: 24/08/20  During use a pulsing noise may be heard indicating that the mop is producing steam. This noise is normal.
Page 12 12 in 1 Steam Cleaner Max Instructions for Use H008 Please read and retain these instructions for future reference v001: 24/08/20 4. To attach the jet nozzle insert the jet nozzle into the designated hole in the main body until it locks in place with the lock button on the main body (you will hear a clicking sound), as illustrated.
Page 13: Garment Steaming Tool
12 in 1 Steam Cleaner Max Instructions for Use H008 Please read and retain these instructions for future reference v001: 24/08/20 Garment Steaming Tool To use the window cleaning tool as a garment steamer install the micro fibre cloth or the lint cloth over the window/cleaner garment steamer (as illustrated) Insert the window cleaning tool in the designated hole in the main body until it locks in place with the lock button on the main body (you will hear a clicking sound).
Page 14: How To Use Hand-Held Steamer
12 in 1 Steam Cleaner Max Instructions for Use H008 Please read and retain these instructions for future reference v001: 24/08/20 How to use hand-held steamer CAUTION Make sure that the steam Cleaner is unplugged. 1. Fill the water tank with water. Please refer to the “HOW TO USE THE STEAM CLEANER” section in this manual.
Page 15 12 in 1 Steam Cleaner Max Instructions for Use H008 Please read and retain these instructions for future reference v001: 24/08/20 To sanitize your work surfaces, kitchen countertops, sinks, bathrooms, etc use the hand-held steam cleaner over the same area for about 15 seconds. NOTICE Do not carry out this procedure on heat and steam sensitive surfaces.
Page 16: How To Use Optional Accessories
12 in 1 Steam Cleaner Max Instructions for Use H008 Please read and retain these instructions for future reference v001: 24/08/20 How to use Optional Accessories Window Cleaning Tool Make sure the Steam Cleaner is unplugged. 1. Fill the water tank with water. Please refer to the “How to use the steam cleaner” section in this manual.
Page 17 12 in 1 Steam Cleaner Max Instructions for Use H008 Please read and retain these instructions for future reference v001: 24/08/20 1 Low or 2 – Medium when using the garment steamer. Do not use 3 – High and 4 – Hot Spray steam settings when using the garment steamer. You can change the steam regulator position and steam output while operating the steam cleaner.
Page 18: Duster
12 in 1 Steam Cleaner Max Instructions for Use H008 Please read and retain these instructions for future reference v001: 24/08/20 Duster Make sure the steam cleaner is unplugged. 1. Fill the water tank with water. Please refer to the “HOW TO USE THE STEAM CLEANER”...
Page 19: Coral Cloth For Mop Head
12 in 1 Steam Cleaner Max Instructions for Use H008 Please read and retain these instructions for future reference v001: 24/08/20 tank and continue cleaning. 7. Once you finish cleaning allow the lint cloth to cool and carefully remove it from the window cleaning tool as the lint cloth could still be hot.
Page 20: Cleaning And Maintenance
12 in 1 Steam Cleaner Max Instructions for Use H008 Please read and retain these instructions for future reference v001: 24/08/20 Cleaning and Maintenance Warning Be sure that the unit is disconnected from the power outlet when performing cleaning. Drain the remaining water in the water tank and clean the tank after every use. Please use detergent to clean the accessories (jet nozzle and round brush)( when they are dirty, then wash with clean water and air dry.
Page 21 12 in 1 Steam Cleaner Max Instructions for Use H008 Please read and retain these instructions for future reference v001: 24/08/20 The steam cleaner uses tap water. However, in areas with hard water, distilled water should be used for better performance. To remove lime scale from the steam cleaner, please follow these procedures: By using scraper 1.
Page 22 12 in 1 Steam Cleaner Max Instructions for Use H008 Please read and retain these instructions for future reference v001: 24/08/20 WARNING DANGER OF SCALDING Cleaning blocked steamer accessories Due to the high mineral content of water in some areas, you may notice that less steam comes out from the hand-held steam cleaner accessories.
Page 23: Troubleshooting
12 in 1 Steam Cleaner Max Instructions for Use H008 Please read and retain these instructions for future reference v001: 24/08/20 Troubleshooting WARNING TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY, UNPLUG APPLIANCE FROM OUTLET BEFORE SERVICING. Problem Possible Cause Solution The unit does not power on...
Page 24: Disposal
12 in 1 Steam Cleaner Max Instructions for Use H008 Please read and retain these instructions for future reference v001: 24/08/20 PLUG WIRING (UK & IRELAND) This appliance is fitted with a BS 1363 13-amp plug. If you have to replace the fuse, only those that are ASTA or BSI approved to BS1362 and with a rated current of 13-amps should be used.
Page 25 12 in 1 Steam Cleaner Max Instructions for Use H008 Please read and retain these instructions for future reference v001: 24/08/20 Commonly recycled and Notes collected from household recycling bins (packaging tape Not often or widely recycled itself not recyclable but does not interfere with cardboard) •...
