Untangle z4 Setup Manual

Package Contents
The z4 package includes:
Power adapter and cable
●
VESA mounting bracket and screws
●
Rubber feet
●
2x antennae (WiFi model only)
●
z4 appliance
●
Installation
1. For VESA mount installations, attach the mounting bracket to the bottom of the z4 appliance using the provided screws.
2. For desktop installations, attach the rubber feet to the bottom corners of the z4 appliance.
3. Fasten the included antennae to the WiFi RP-SMA connectors located on the rear panel (WiFi model only).
4. Connect an ethernet cable from your Internet modem or router to port 1.
5. Connect an ethernet cable from your management computer or LAN switch to port 2.
6. Plug in the power adapter to a power source and connect it to the power input on the rear panel.
7. Power on the system by pressing the power button located on the front panel.
Connect to the appliance
You can connect to your appliance via the online ​ C ommand Center​ portal at ​
appliance from the local network, or directly using a monitor, keyboard, and mouse.
untangle.com​ ​ | © Copyright 2019. Untangle, Inc. All rights reserved.

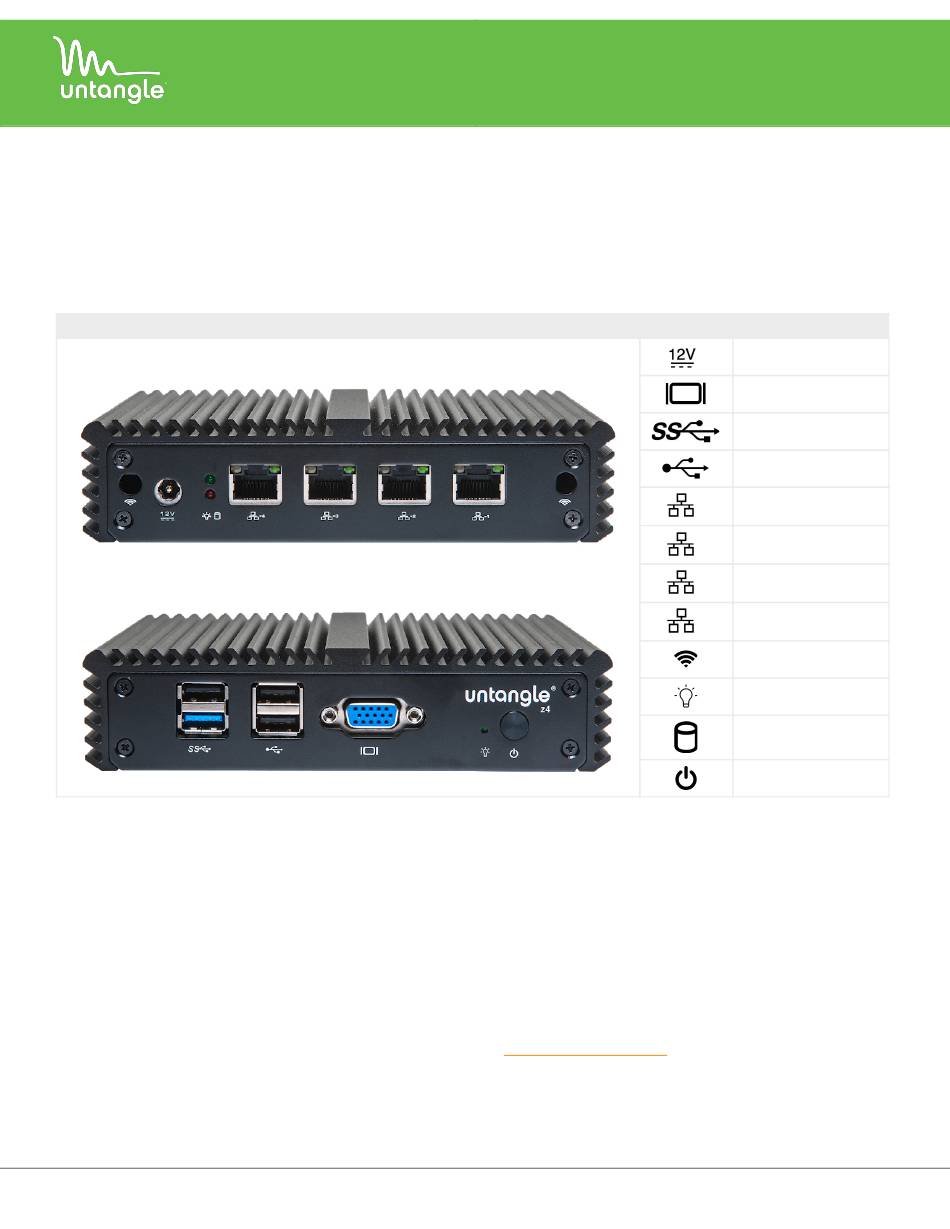

Rear Panel
Front Panel

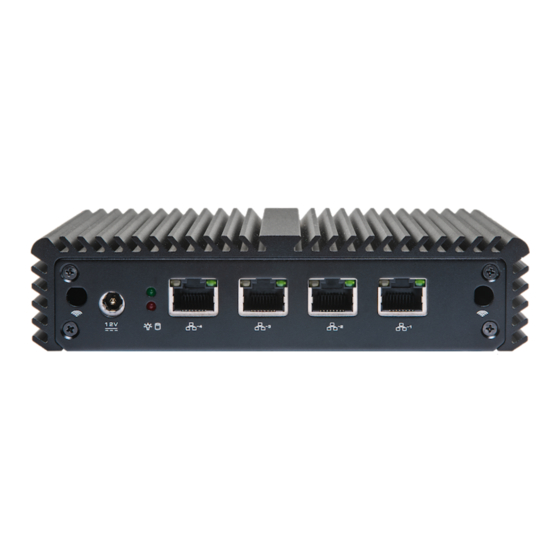

z4 rear and front panels.
h ttps://untangle.com/cmd​ . Alternatively, you can connect to your
z4 Setup
Power input
VGA port
USB3 port
USB2 ports
1
Internet port
​
2
LAN port
​
3
LAN port (not configured)
​
4
LAN port (not configured)
​
WiFi RP-SMA connector
Power indicator
HD indicator
Power button
z4 Setup Guide - Page 1
Guide
