Summary of Contents for ELC WA1012T

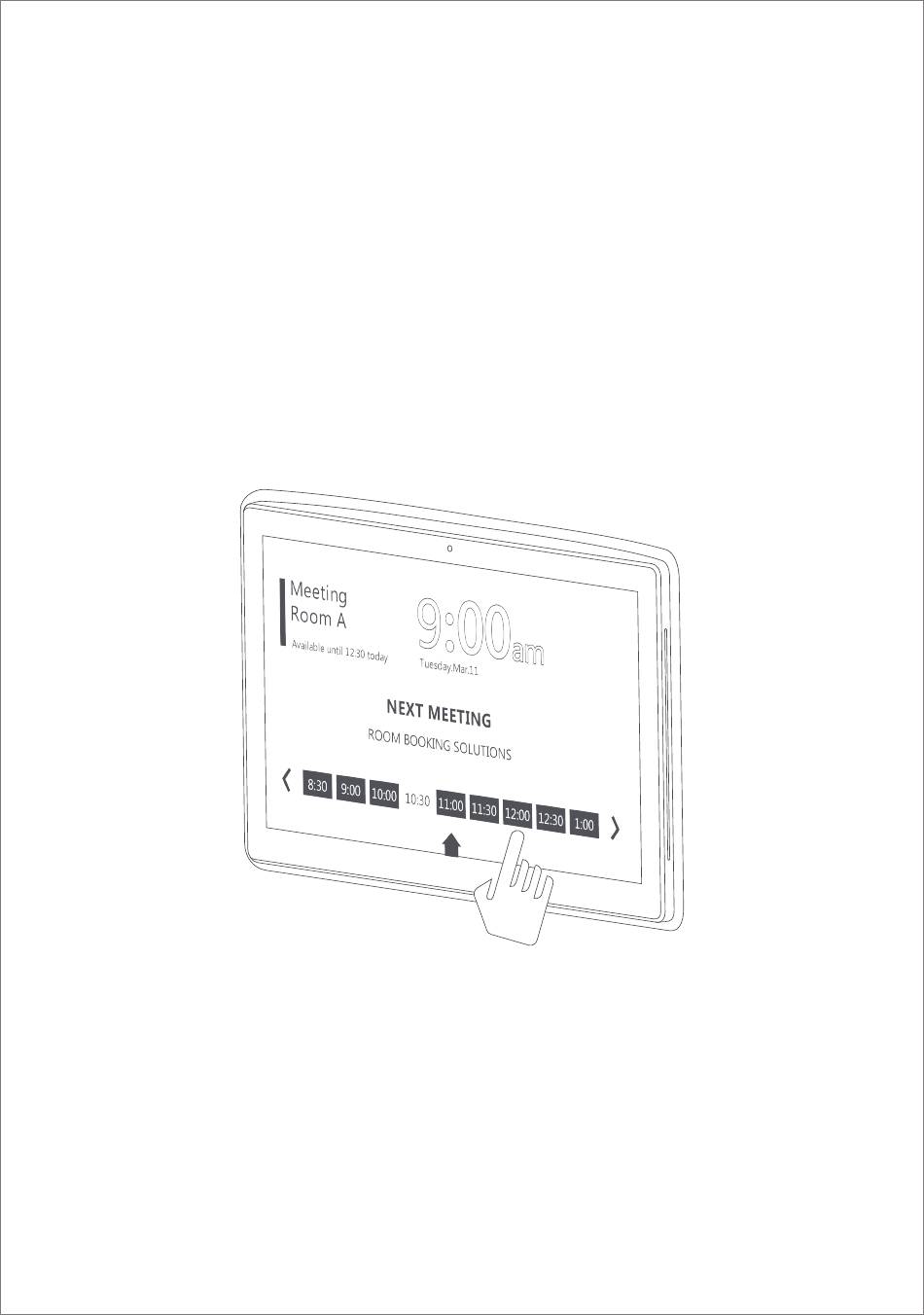

- Page 1 Model：WA1012T MEETING ROOM INTERACTIVE DIGITAL SIGNAGE 10.1" , 13.3" ,15.6" User Manual...
-
Page 2: Table Of Contents
Contents Important Notices............................2 Package Contents............................3 Introducing the meeting room interactive digital signage10.1" , 13.3" , 15.6"......4 10.1" Exterior Components........................5 13.3" Exterior Components........................6 15.6" Exterior Components........................7 Installation instructions..........................8... -
Page 3: Important Notices
Important Notices Copyright Information All intellectual property rights in this publication are owned by and protected by applicable copyright laws and international treaty provisions. retains all rights not expressly granted. No part of this publication may be reproduced in any form whatsoever or used to make any derivative work without prior written approval by . -
Page 4: Package Contents
Package Contents Please make sure all of the following are present when you unpack your meeting room interactive digital signage. Meeting room interactive digital signage MEETING ROOM INTERACTIVE DIGITAL SIGNAGE 10.1" , 13.3" ,15.6" User Manual Power adapter Bracket/ Screw User manual... -
Page 5: Introducing The Meeting Room Interactive Digital Signage10.1" , 13.3" , 15.6
Introducing the Meeting room interactive digital signage 10.1" , 13.3" , 15.6" RK3288,Quad-core cortex A17,1.8G Resolution:800*1280 ,10.1" / Resolution:1920*1080 13.3" , 15.6" LCD IPS panel Android 5.1+ 10-Point capacitive touch RAM 2GB/Internal memory 8GB 2.0M/P/Front camera /Microphone Ethernet with PoE Wi-Fi 802.11b/g/n Bluetooth 4.0 2*2W Speaker... -
Page 6: Exterior Components
10.1" Exterior Components 273,7mm 217,4mm Function Function Camera Ethernet with PoE SD Card slot Micro USB OTG 3.5mm audio jack DC in power supply port USB 2.0 host Speaker Serial port VESA 75*75MM Recovery key Power button... -
Page 7: Exterior Components
13.3" Exterior Components 348,56mm 294,76mm Function Function Camera Ethernet with PoE SD Card slot Micro USB OTG 3.5mm audio jack DC in power supply port USB 2.0 host Speaker Serial port VESA 75*75MM Recovery key Power button... -
Page 8: Exterior Components
15.6" Exterior Components 401,81mm 345,1mm Function Function Camera Ethernet with PoE SD Card slot Micro USB OTG 3.5mm audio jack DC in power supply port USB 2.0 host Speaker Serial port VESA 75*75MM Recovery key Power button... -
Page 9: Installation Instructions
Installation instructions... - Page 10 This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed of at the end of its life separately from your household waste. There are separate collection systems for recycling in your country. For more information, please contact the local authority or your retailer where you purchased the product.
- Page 11 会议室智能交互数字标牌 10.1" , 13.3" ,15.6" 使 用 手册...
- Page 12 目录 前言...............................2 敬告...............................2 包装清单...............................3 功能特点...............................4 10.1”产品介绍...........................5 13.3”产品介绍...........................6 15.6”产品介绍...........................7 安装指导...............................8...
- Page 13 前言 感谢您选用商用会议室智能交互数字标牌！ 开机之前，请仔细阅读此使用手册，了解本机的使用方法及注意事项。 敬告 ★ 仅能使用原厂提供的电源适配器配件。 ★ 机器上的缝隙和开口用于通风和散热，请勿堵塞或掩盖这些缝隙和开口。 ★ 切勿在多尘、潮湿、高温的环境下使用或存放本机。 ★ 机器故障时，请勿自行拆解维修，需联系原厂或经销商解决。 ★ 避免踩踏电源线或者电源适配器，以免线损造成漏电等危险。如果电源适配器的导线已 损坏, 请勿继续使用，否则可能会发生危险。 ★ 雷雨天气或者长时间不使用本机时，请拔掉电源线插头。 ★ 使用时，请不要将机器放在桌子边缘或小孩容易接触到的地方，避免机器摔损或伤害到 小孩。 ★ 运输或使用过程中尽量不触碰显示屏，切勿用力挤压显示屏，不要用利器或硬物碰伤显 示屏，以免造成显示屏破损。 ★ 请使用干燥的软布或略蘸柔性清洁剂的软布清洁相框。请勿使用任何种类的溶剂, 如酒 精或汽油，否则可能损坏表面处理层。...
-
Page 14: 包装清单
包装清单 打开包装后，请确认下面的包装内容. 会议室智能交互数字标牌 会议室智能交互数字标牌 10.1" , 13.3" ,15.6" 使 用 手册 电源适配器 壁挂支架 说明书... -
Page 15: 功能特点
功能特点 RK3288,八核,Cortex A17,1.8G 10.1"分辨率:800x1280 / 13.3",15.6"分辨率:1920x1080高清IPS屏 安卓5.1 10点电容式触摸 RAM 2GB/内存8GB 摄像头前置200W / Microphone 以太网口/支持PoE Wi-Fi 802.11b/g/n 蓝牙4.0 喇叭2*2W Micro USB OTG USB host SD card 串口(USB) VESA 75*75mm... -
Page 16: 产品介绍
10.1"产品介绍 273,7mm 217,4mm 序号 接口 序号 接口 摄像头 RJ45 以太网口/POE SD 卡槽 Micro USB OTG 电源插孔 3.5mm音频 喇叭 USB 2.0 host 串口 VESA 75*75MM 恢复键 电源开/关键... -
Page 17: 产品介绍
13.3"产品介绍 348,56mm 294,76mm 序号 接口 序号 接口 摄像头 RJ45 以太网口/POE SD 卡槽 Micro USB OTG 电源插孔 3.5mm音频 喇叭 USB 2.0 host 串口 VESA 75*75MM 恢复键 电源开/关键... -
Page 18: 产品介绍
15.6"产品介绍 401,81mm 345,1mm 序号 接口 序号 接口 摄像头 RJ45 以太网口/POE SD 卡槽 Micro USB OTG 电源插孔 3.5mm音频 喇叭 USB 2.0 host 串口 VESA 75*75MM 恢复键 电源开/关键... -
Page 19: 安装指导
安装指导... - Page 20 FCC STATEMENT : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
