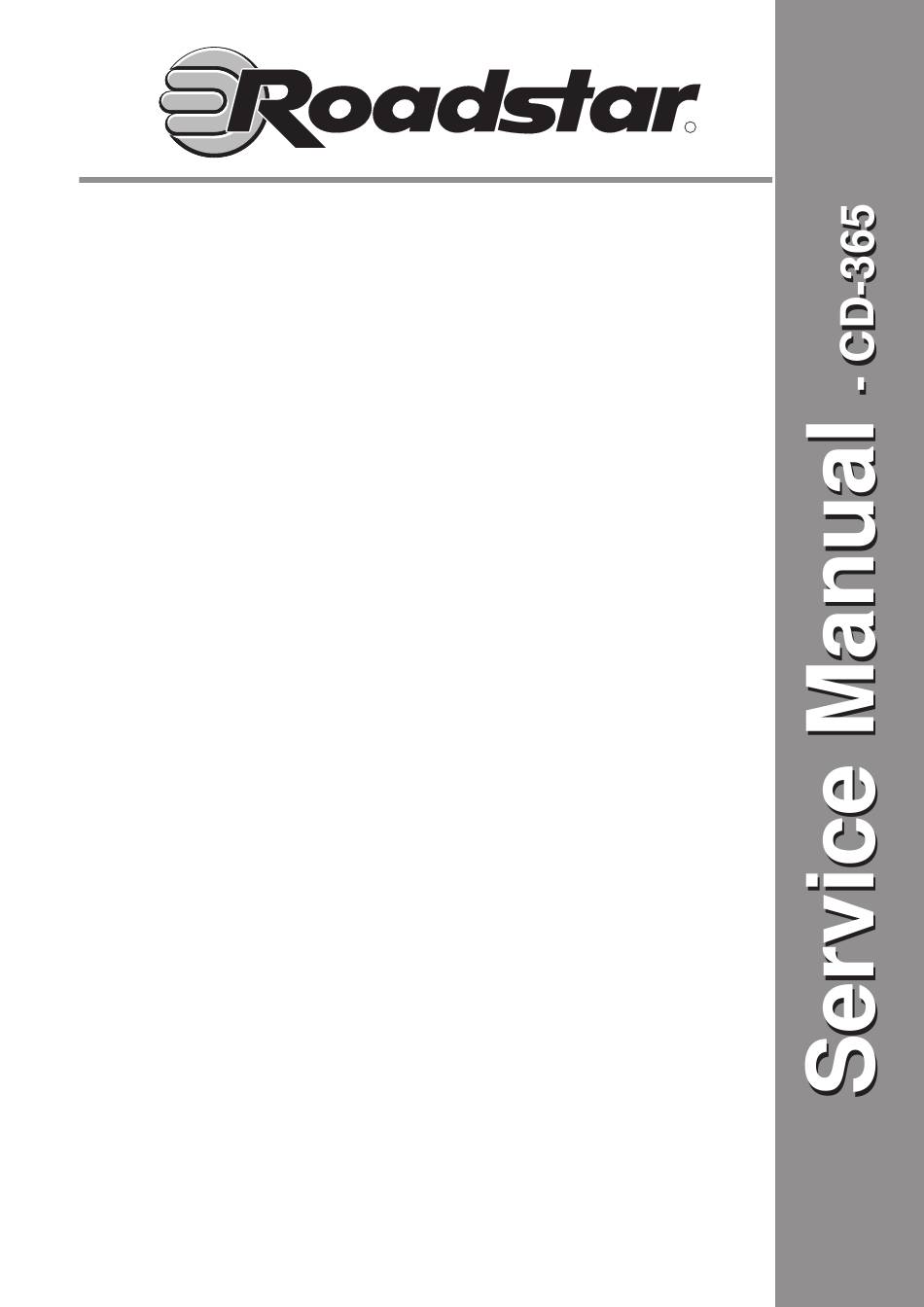

  • Page 1 CD-365...
  • Page 2 model band i_code qty i_descript location A-01 CDX82A-45W8 A-01 002-04453-F61 1,00 I.C. BH4453F "HEAD PHONE AMPIC301 CDX82A-45W8 A-01 002-0DRAM-040 1,00 I.C. Re-used (4Megx4 Dram) 4IC401 CDX82A-45W8 A-01 004-3-003 4,00 CHOCK COIL 3T 4/CE LCE3,4, CDX82A-45W8 A-01 004-3-003A 2,00 CHOCK COIL 3T 2-7 UH 3.5x1.32/CE LCE2,6 CDX82A-45W8 A-01 004-3-100...
  • Page 3 CDX82A-45W8 A-02 016-S1036-006 2,00 CHIP CAPACITOR 0.01UF 50V (0C103 CDX82A-45W8 A-02 016-S1047-004 32,00 CHIP CAPACITOR 0.1 UF 25V (0C105,107,110 CDX82A-45W8 A-02 016-S1057-003 4,00 CHIP CAPACITOR 1 UF 16V (060C4,124,326,6 CDX82A-45W8 A-02 016-S1505-006 3,00 CHIP CAPACITOR 15 PF 50V (06C131,132,150 CDX82A-45W8 A-02 016-S1515-006 2,00 CHIP CAPACITOR 150 PF 50V (0C122,123...

  • Page 4: Test Procedure

    TEST PROCEDURE Model:CD-365 RF SIGNAL TEST TEST POINT :RF-VC TEST DISC:TCD-784 (a) CONNECT OSCILLOSCOPE PROBE TO RF AND VC (b) PRESS PLAY KEY TO PLAY THE TEST DISC (c) THE RF SIGNAL WAVE WILL BE HOLDING AT 1.0Vp-p WITH AUTOMATICITY.
