Technical Specifications
20Hz - 85kHz (-3dB) EQ off
Frequency Response:
20Hz - 52kHz (-3dB) EQ on
Signal-to-noise-ratio:
> 90dBu
92mV eff für 0dBu Output
Input Sensitivity:
30mV eff für -10dBu Output
13,2Vpp 4,65V eff (+15,5dBu)
max. Input-Voltage:
+ 16,5dBu
Distortion-Level:
+/- 15dB
25 - 40 - 75 Hz
Bass
Mid1
+/- 12dB 300 - 450 - 750 Hz
Tonecontrol
+/- 12dB 0,85 - 1,2 - 1,7 kHz
Mid2
+/- 15dB
4
Treble
- 9,5dB - +18,5dB (28dB)
Variable Input Gain:
ca. 30/30 Ohm
min. Headphone-Impedance:
9-12V DC
Power Supply:
Current Draw:
ca. 16mA min. ca. 45mA max.
Dimensions ( D x W x H):
125 x 150 x 55mm
Weight:
ca. 650g
The indicated specifications apply for operation with 9V power supply
- 8 - 16 kHz
Sägemüllerstrasse 37 · D-38678 Clausthal-Zellerfeld
Telefon +49 (0) 53 23 - 81 74 7 · Fax +49 (0) 53 23 - 98 71 37
marleaux@marleaux-bass.com
w w w.marleaux-bass.com
T onwerk

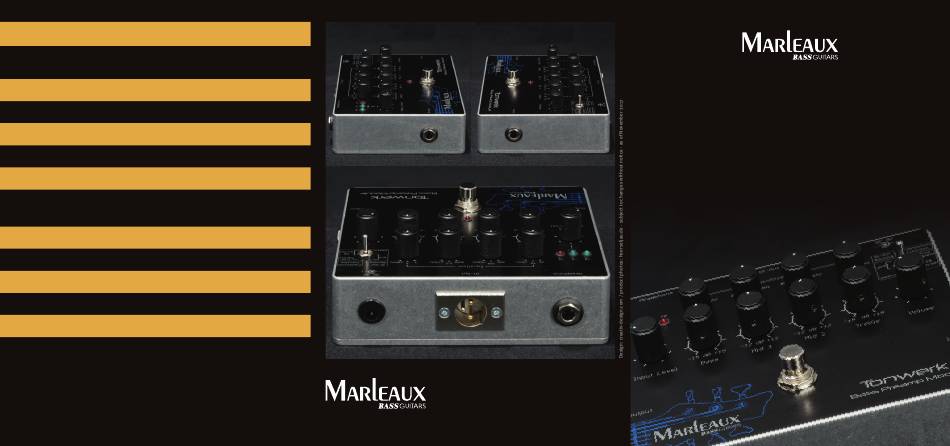

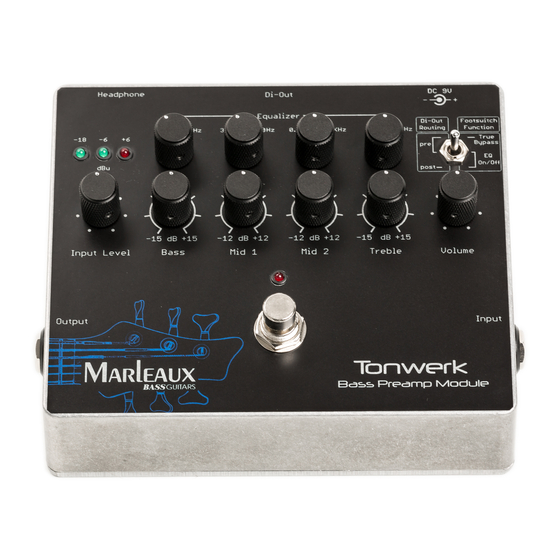

Bass Preamp Module
Quick Manual
Advertisement
Table of Contents
Summary of Contents for MARLEAUX Tonwerk
- Page 1 650g Sägemüllerstrasse 37 · D-38678 Clausthal-Zellerfeld Telefon +49 (0) 53 23 - 81 74 7 · Fax +49 (0) 53 23 - 98 71 37 marleaux@marleaux-bass.com The indicated specifications apply for operation with 9V power supply w w w.marleaux-bass.com...
- Page 2 Permanent illumination of the red LED indicator should be avoided. the Output. This setting allows a direct A/B comparison between buffered/EQ’d and bypassed sound, which is especially useful when the “Tonwerk” Preamp is connected to the input of an 4 - BAND EQ TONE-CONTROL amplifier.
