INSTALLATION, OPERATING, AND SAFETY INSTRUCTIONS
Thank you for selecting Fitpole Stage! You
now own a masterpiece of Finnish design,
manufacturing and marketing – one of the
best dancing poles available! We will
develop and refine Fitpole Stage based on
feedback and suggestions from the users. In
case you have suggestions on how to
improve Fitpole Stage, do not hesitate to
contact us. You will find our contact
information at the end of these instructions.
SAFETY is our priority! It is very
important that you read all the
instructions and tips before
installing or using the pole. Do
NOT install Fitpole Stage if you
are unsure of how it should be
installed or used. In this case,
contact the retailer. Keep these
instructions available during the
whole service life of the product.
25.2.2015
FITPOLE STAGE
1(9)
Advertisement
Summary of Contents for Ahlsport FITPOLE STAGE
- Page 1 1(9) INSTALLATION, OPERATING, AND SAFETY INSTRUCTIONS FITPOLE STAGE Thank you for selecting Fitpole Stage! You now own a masterpiece of Finnish design, manufacturing and marketing – one of the best dancing poles available! We will develop and refine Fitpole Stage based on feedback and suggestions from the users.
- Page 2 2(9) INTRODUCTION ................... 3 ............................... 3 ITPOLE TAGE ............................3 HYSICAL RESULTS SAFETY INSTRUCTIONS ................3 ................................3 OTES INSTALLATION INSTRUCTIONS ..............4 ..........................4 ONTENTS OF THE PACKAGE ..........................4 NSTALLATION LOCATION ..........................4 OW TO MOUNT ITPOLE ADDITIONAL INFORMATION ..............9 ..................
-
Page 3: Safety Instructions

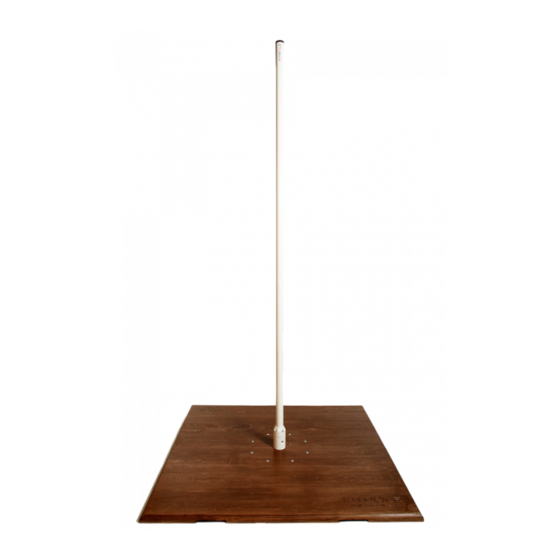

Introduction Fitpole Stage Fitpole Stage is a dancing pole stage consisting of two pieces. It stands alone and does not need to be secured to a ceiling. The pole itself consist of either one or two pieces. Pole height is 2800 or 2700 mm. The total Height of the stage is 2990mm and 2890mm Fitpole Stage is provided with a warranty of 1 year. -
Page 4: Installation Instructions
Fitpole Stage. If you do not accept the risk for accidents or damages, do not use Fitpole Stage. Keep the product in its original package unopened. - Page 5 5(9) Picture 1. Attaching the metallic plate to the wooden stage elements Screw the bolts (8 pcs) to their holes according to the picture (picture 2.). Tighten the bolts to appropriate tightness. Be careful not to damage the threads in the metallic plate. Picture 2.
- Page 6 6(9) Picture 3. Attaching the pole to the stage The pole and the metallic base plate both have alignment marks for aligning the bolt holes (picture 3). Make sure that the alignment holes indicated by the upper arrows (picture 3) are aligned properly.
- Page 7 7(9) Note! First, start all the bolts a few threads. Then screw the bolts to appropriate tightness. You can lock the spinning stage into static position by installing an extra bolt shown in the picture (picture 5). See also picture 3 (alignment holes). The bolt used for locking the stage is the same as the bolts used for attaching the wooden elements to the base plate.
- Page 8 8(9) The threads at the mid-section of the 2-pieced pole have been lubricated at the factory before packing. You can lubricate the threads regularly, e.g. every 5th time you mount the pole or at least every other month. Besides oil, you can lubricate the threads with for example petroleum jelly.
-
Page 9: Additional Information
Also, check all the screws and bolts regularly (at least every 6th month) and replace them if needed. All the fixings and fasteners in Fitpole Stage are wear and tear parts. Failure to check and maintain the product may lead to danger.
