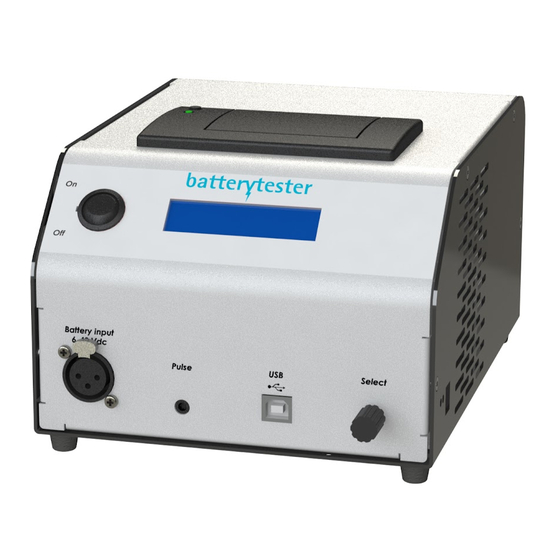

Batterytester AT00001 Quick Manual

This Quick Manual is a shortened explanation of how to test an e-bike battery with

Batterytester. For the first use we strongly advise to read the full instruction manual.

1) Take care that the battery is fully charged.

2) Connect the test cable to the

batterytester.

3) Connect the test cable to the battery.

4) Connect the USB cable to the Batterytester.

5) Start Batterytester Program on your PC / Laptop.

Select COM port (in this case 2 COM ports are in

use, no. 5 en 6).

6) Now connect the USB cable to your PC / Laptop.

Select the COM port to which Batterytester is

connected to your PC (in this case COM port 4).

www.batterytester.nl

QUICK MANUAL with PC

Version February 2018

Page 1/3

Table of Contents

Need help?

Do you have a question about the AT00001 and is the answer not in the manual?

Page 1 Version February 2018 This Quick Manual is a shortened explanation of how to test an e-bike battery with Batterytester. For the first use we strongly advise to read the full instruction manual. 1) Take care that the battery is fully charged.
Page 2 In this field you can fill out the data you want (e.g. customer data). 10) Klick ‘connect’. 11) Go to the Batterytester and press one time shortly the ‘Select’ button. 12) On both your PC / Laptop as in the display of Batterytester the measurement values are developing.
Page 3 Battery is broken, reduced capacity (bad cells because of which BMS turns off). 4. Check the capacity: Ah and Wh and compare these with the battery specifications. When the percentage is lower than 70%, the battery has been ‘economically’ depreciated. © Copyright Batterytester / 7-2-18 Page 3/3 www.batterytester.nl...
