Summary of Contents for molex Advanced Sensor

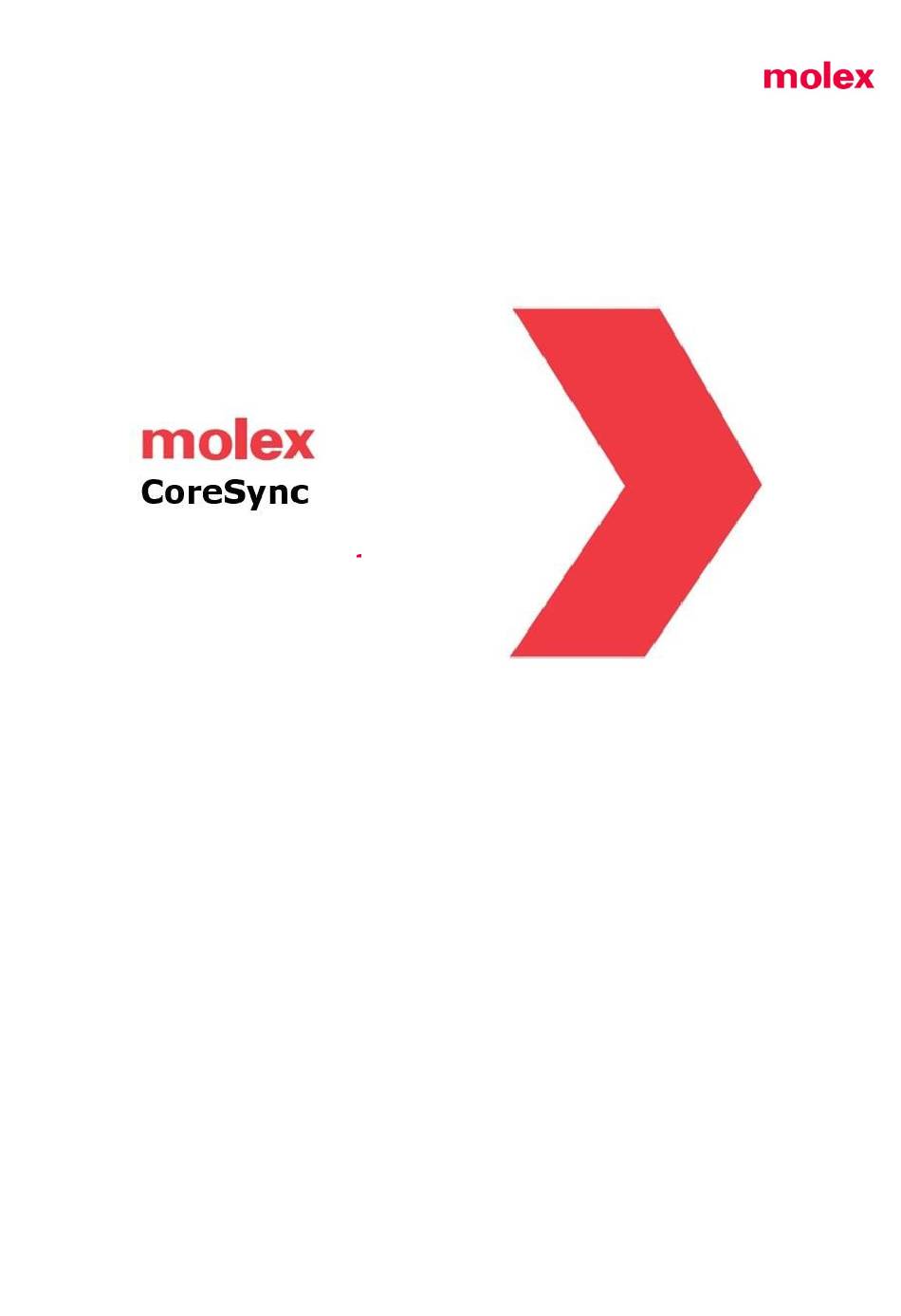

- Page 1 Molex – Advanced Sensor Mounting – Installation Guide ___________________________________________________________________________ CoreSync Advanced Sensor Installation Guide ___________________________________________________________________________ 8/20/2020_Rev: A...
-
Page 2: Table Of Contents
Molex – Advanced Sensor Mounting – Installation Guide ___________________________________________________________________________ Table of Contents Introduction ....................3 Safety Instructions ..................4 Procedure ....................5 Surface Mount ............................5 Bracket Mount ............................7 Gateway Connection ..........................7 ... -
Page 3: Introduction
___________________________________________________________________________ Introduction This applications notes will cover how to properly mount an Advanced Sensor onto a desired ceiling type. There are 3 different types of advanced sensors (Beacon, Lighting, and AQ), however all follow the same mounting procedure. The user has two options for mounting style: Panel Mount and Bracket Mount as seen below. -
Page 4: Safety Instructions
Molex – Advanced Sensor Mounting – Installation Guide ___________________________________________________________________________ Safety Instructions DEVICES MUST BE INSTALLED BY A QUALIFIED INSTALLER. (CHECK WITH LOCAL AND NATIONAL CODES FOR PROPER INSTALLATION). CAUTION - Observe precautions for handling electrostatic sensitive devices. WARRANTY – Voided if fixture has been modified from its original configuration or in the event of hot plug/hot swap. -
Page 5: Procedure
Molex – Advanced Sensor Mounting – Installation Guide ___________________________________________________________________________ Procedure Surface Mount 1. When using the surface mount option, connect the sensor to the mounting hardware before pushing to ceiling. 2. A 2” clearance hole must be drilled out of the desired ceiling. - Page 6 Molex – Advanced Sensor Mounting – Installation Guide ___________________________________________________________________________ 4. The surface mount bracket has been designed to be universal and fit into any type of ceiling material. Ceiling tiles are typically made with mineral wool, fiberglass, gypsum, perlite, clay, cellulose, or starch.
-
Page 7: Bracket Mount
Molex – Advanced Sensor Mounting – Installation Guide ___________________________________________________________________________ Bracket Mount 1. When using the bracket mount option, screw the bracket (screws and anchors) into the surface first before connecting the sensor to the mounting bracket. 2. If using the bracket mount version, two holes with a maximum diameter of 3/16” must be drilled out of desired surface. -
Page 8: Gateway Connection
Gateway Connection The other end of the wire harness goes into a Gateway, if it is a 5x2 connector (Molex part number 180887- 04XX or 180888-04XX). If it is a 2x2 connection (Molex part number 180777-04XX or 180778-04XX), then it can connect to a driver or another sensor’s “Output”. -
Page 9: Ordering Information
Molex – Advanced Sensor Mounting – Installation Guide ___________________________________________________________________________ Ordering Information Advance Sensor: 182089-x000 CoreSync Bus Harness: 180777-04xx CoreSync Gateway: 180777-04xx Revision History 8/20/2020 – Initial Release ___________________________________________________________________________ 8/20/2020_Rev: A...
