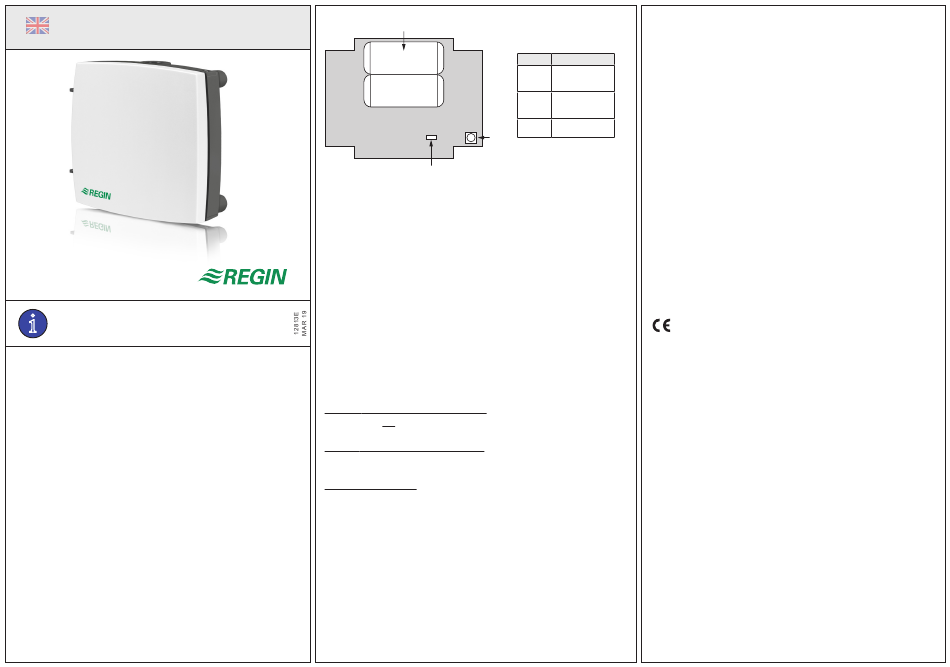

INSTRUCTION
EN
TG-R6W
i
Read this instruction before installation
of the product

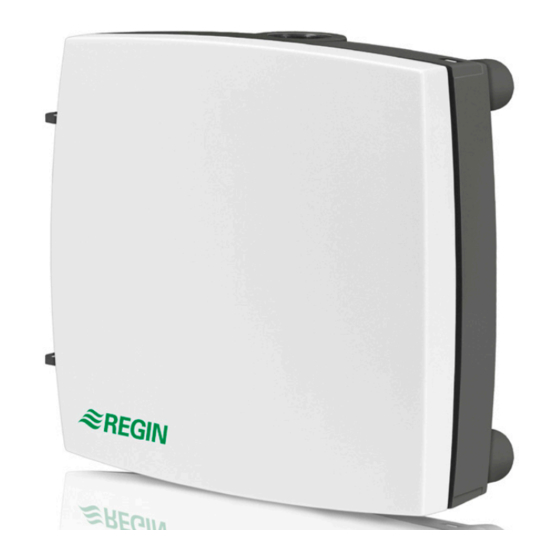

Wireless outdoor temperature sensor

TG-R6W is a wireless outdoor temperature sensor that monitors tem-
perature and sends a signal to a Regin Modbus receiver.

Commissioning

The sensor should be placed out of direct sunlight and in a place with
unobstructed air circulation.
The sensor must be paired with the receiver before it can be used.

Installation of batteries

1.
Open the cover by pressing the locking tabs carefully with a
screwdriver
2.
Insert two CR123 3V Lithium batteries
1
+
-
-
+
2
3

Pairing the sensor with the receiver

Look in the receiver instruction for information on how to
pair the sensor with the receiver.
Pairing/connection test
The connection to the receiver must be tested before mounting the
sensor.
1.
Place the receiver and the sensor at the desired locations.
2.
For RCW-M: Put the receiver into Programming mode
For RCW-M32: Push the Test button to activate the display .
3.
Perform a Walk test: Press the Test button on the sensor to see if the
location is within signal range of the receiver. The LED light will indi-
cate if the sensor is paired with the receiver or not. There will also be
a long beep from the receiver when the sensor is paired successfully.

LED light

3 flashes (When Test button is pressed):
The sensor is not paired with the receiver.
Flashing (When Test button is pressed):
The sensor is paired with the receiver.
Flash every 4 seconds:
Batteries needs to be replaced.

Mounting the sensor

1.
Use the screw holes in the casing to mount the sensor on the wall
2.
Snap on the cover
TG-R6W

Other functions

Temperature detection
Number
Description
The sensor monitors the temperature at a preset time interval (factory
1
Battery
setting is 2 minutes), and if the temperature has changed by more
compartments
than ± 1°C it will send a signal to the receiver. If the temperature is
stable, the sensor will transmit a signal every 95-115 minutes.
2
Connection/
Test button
Self test
3
LED light
The sensor will automatically send a supervisory signal to the receiver
at an interval of 95 to 115 minutes to test the signal.
The receiver will indicate "out of signal" if it has not received the
signal at a preset interval.

Technical data

Power supply
Battery lifetime
Frequency
Operating temperature
Operation humidity
Protection class
Dimensions (HxWxD)
This product carries the CE mark. For more information, see
www.regincontrols.com.

Product documentation

All documentation can be downloaded from www.regincontrols.com
Contact
AB Regin, Box 116, 428 22 Kållered, Sweden
Tel: +46 31 720 02 00, Fax: +46 31 720 02 50
www.regincontrols.com, info@regincontrols.com
CR123 3V Lithium x 2
6 years
868 MHz
-30...+50°C
Max. 85% RH (non-condensing)
IP54
85 x 90 x 35 mm
