Dynastream Innovations AMP 231 User Manual

Activity monitoring system
Hide thumbs

Advertisement

Quick Links

Download this manual
Copyright ©2006. Dynastream Innovations Inc.

Advertisement

loading
Need help?

Need help?

Do you have a question about the AMP 231 and is the answer not in the manual?

Questions and answers

Summary of Contents for Dynastream Innovations AMP 231

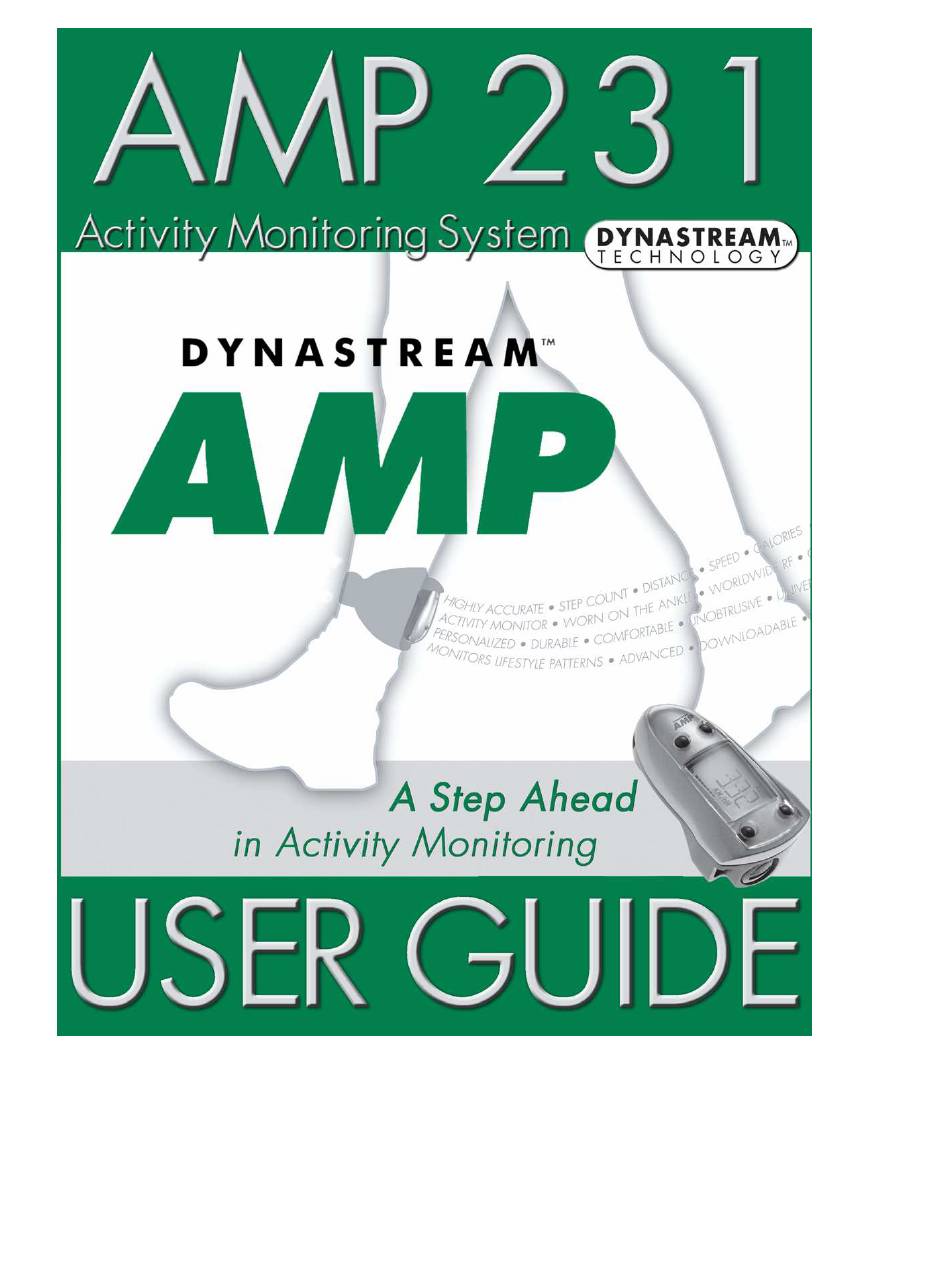

  • Page 1 Copyright ©2006. Dynastream Innovations Inc.
  • Page 2 *Available with AMP USB Stick and AMP Ware Components The AMP 231 Monitoring System offers valid, objective activity data in real time display and stores this data for further analysis. The system includes the monitoring pod, ankle sleeve, USB stick, AMP Ware application and documentation.
  • Page 3 Locomotion), number of steps taken, caloric expenditure, distance traveled, and locomotion speed. Use the DATA mode to manage the collected data. View activity measurements from previous days, upload data to your computer, or clear the collected data. Copyright ©2006. Dynastream Innovations Inc.

  • Page 4: Basic Navigation

    Use the OK button to choose a mode (SETUP, TRIAL, DATA) or a menu item (under each mode). The OK button is also used to accept and save a change. Changes are shown as flashing text. Press BACK to return to the previous menu level without saving changes. Menus Copyright ©2006. Dynastream Innovations Inc.
  • Page 5 Set the current date and time in 24-hour format. User Information Enter settings for the user, including the gender, weight, height, birthday, and name/ID (optional). Weight and height can be entered in either metric or imperial measure. Copyright ©2006. Dynastream Innovations Inc.
  • Page 6 Copyright ©2006. Dynastream Innovations Inc.
  • Page 7 If the Display setting is turned off, only the elapsed time (ELAP) and current time (CLOCK) screens are available. Copyright ©2006. Dynastream Innovations Inc.
  • Page 8 VIEW and press OK to return to viewing the current session data. Use the arrow buttons to navigate through the viewable data. Data Use the DATA mode to view, upload, and erase user data. Further analysis of data may be performed after downloading it to your computer. Copyright ©2006. Dynastream Innovations Inc.
  • Page 9 Data cannot be uploaded until the AMP USB Stick drivers and the AMP Ware application are installed and running properly. For further instructions, see Using AMP Ware, page xx. AMP Ankle Sleeve Copyright ©2006. Dynastream Innovations Inc.
  • Page 10 The firm fit is required to prevent the sleeve from sliding or side-to-side motion. Ankle sleeves are available in three sizes to fit children age 6 to adults. <<graphic – photo/illustration of 1] pod in sleeve and 2] sleeve on ankle >> Copyright ©2006. Dynastream Innovations Inc.
  • Page 11 The AMP USB Stick enables the AMP Activity Monitoring Pod to wirelessly upload data to your computer using the supplied AMP Ware application. Use the accompanying AMP 231 CD to install the AMP USB Stick drivers and the AMP Ware application.
  • Page 12 Gender Alphanumeric string Required data, obtained from Length = 1 pod, either “M” or “F”. Birthday Alphanumeric string Required data, obtained from Max length = 10 pod, format is day/month/year, no zero padding Etc. Copyright ©2006. Dynastream Innovations Inc.
  • Page 13 If I accidentally press a button during data collection, will it affect the data or stop the trial? No, button presses will navigate through menus/data; only STOP under the TRIAL menu will stop the trial. Can the pod be worn in the shower, in the rain, or in the bath? Copyright ©2006. Dynastream Innovations Inc.
  • Page 14 If you are working on an institutional computer you may not have the necessary permissions. In order to install the drivers you may need to contact the IT coordinator. AMP Ware Error Messages <<chart – message number/error/solution>> Copyright ©2006. Dynastream Innovations Inc.

  • Page 15: Troubleshooting

    Make sure that there are no other pods nearby in upload mode. Turn off other sources of RF such as cell phones or PDAs, and move the link away from the computer monitor. Try downloading again. Additional help can be found on-line at www.dynastream.com. Copyright ©2006. Dynastream Innovations Inc.

  • Page 16: Warranty

    - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Copyright ©2006. Dynastream Innovations Inc.
  • Page 17 - Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the product warranty and the user’s authority to operate this equipment under Part 15 regulations. Copyright ©2006. Dynastream Innovations Inc.
