pingbingding WA-8807 Quick Start Manual

Amplified digital outdoor hdtv antenna

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

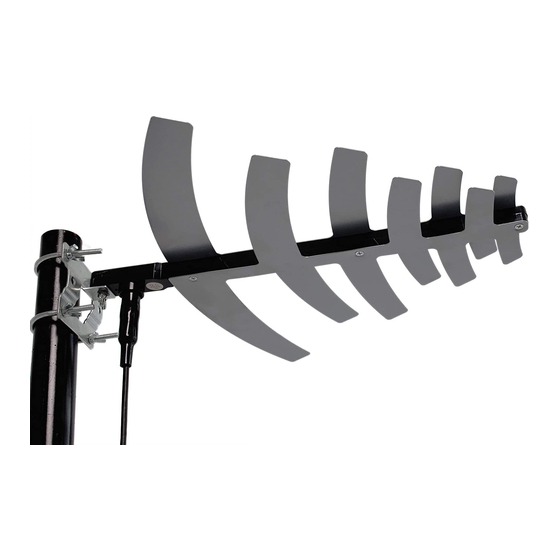

Amplified Digital Outdoor HDTV Antenna – 50 miles range

Model: WA-8807

HDTV

ATSC

Compatible

Thank you for your purchase and your support! Digital Television is an advanced

broadcasting technology that has transformed the television viewing experience.

DTV enables broadcasters to offer television with better picture and sound quality,

and multiple channels of programming. Since June 13, 2009, full-power television

stations nationwide have been required to broadcast exclusively in a digital format.

We invite you to visit our website at www.pingbingding.com for other high-quality

products.

Main Technical and Features:

*Extremely High Performance for UHF Band only，

*50 mile maximum range possible. Individual experiences may vary.

Receive range: UHF

Frequency: 470-860MHz

UHF gain: 28dB

Max output level: 95dBu

Impedance: 75Ω

www.pingbingding.com

Customer Service

E-mail: service@pingbingding.com

Table of Contents

Need help?

Do you have a question about the WA-8807 and is the answer not in the manual?

Questions and answers

Summary of Contents for pingbingding WA-8807

Page 1 Since June 13, 2009, full-power television stations nationwide have been required to broadcast exclusively in a digital format. We invite you to visit our website at www.pingbingding.com for other high-quality products. Main Technical and Features: *Extremely High Performance for UHF Band only，...
Page 2 Package Contents Specification Image NO . Name Main unit Hex cap screw Wing nut Fixing kit U bolt Wing nut Ring Drywall screw Wallplug Metallic screws Twisting metal Adaptor USB cable Detachable Amplifier with gain Control 75Ω signal cable Service card Instruction...
Page 3 Connectthe Antennato TV or Set‐ top Box A.Connect Antenna to TV with built-in digital tuner B. Connect Antenna to a digital set-top box. Mount the Antenna A,Mountthe antenna horizontal with twisting Metal ① Support rube diameter Φ30mm - Φ45 ② ③...
Page 4 B, Mount the antenna vertical without twisting Metal (turning 90°) C, Mount the antenna on the wall.
Page 5 Find a convenient outdoor location to mount your antenna, then scan for channels. Note: Before final mounting, first test your selected antenna location by scanning for channels. In some instances, you may decide to relocate the antenna for better reception. If you are about 25-35 miles away from the tower, we recommend to connect antenna without amplifier.
Page 6 FEATURES: - Boost the reception of your digital TV antenna signal. - Enhances the performance of passive antennas in remote areas where the signal isn't strong. - Preserves signal purity with Extremely Low Noise (ELN) circuitry. - Turn a TV with spotty reception into one with crisp and clear signal. TIPS: - Always try your antenna with and without the amplifier attached.
Page 7 Gain Control. Note: Coaxial Cable (25 or 50 Feet) with Coaxial Coupler are sold separately. www.pingbingding.com 2.Face the antenna towards the nearest broadcast tower. 3.If you find the channels are less than expected, Please refer to “How many channels can I receive?”...
Page 8 Troubleshooting Why can't I receive a signal? 1. Check to make sure you have correctly connected the antenna to your HDTV or third- party HD receiver. See “Connect the Antenna to TV or Set-top Box” in this manual. 2. Re-scan for channels. In the TV's setup menu, set the mode to 'Antenna' or 'Air'. Refer to the TV manual for detailed instructions.
