TCi KLR Installation Manual

Warnings and Cautions
Dangerous Voltage Warning: warns of
Warning
situations in which a high voltage can
cause physical injury and/or equipment
damage. The text next to this symbol
describes ways to avoid the danger.
General Warning: warns of situations
Warning
that can cause physical injury and/or
equipment damage by means other
!
than electrical. The text next to this
symbol describes ways to avoid the
danger.
General Safety Instructions
Warning
Be sure to read, understand, and
follow all safety instructions.
!
Warning
Only qualified electricians should
carry out all electrical installation and
!
maintenance work on reactors.
Warning
All wiring must be in accordance with
the National Electrical Code (NEC)
!
and/or any other codes that apply to
the installation site.
Warning
Disconnect all power before working
on the equipment. Do not attempt any
work on a powered reactor.
Warning
The reactor, VFD, motor, and other
connected equipment must be
properly grounded.
Warning The VFD terminals and connected
cables are at a dangerously high
voltage when power is applied to the
VFD, regardless of motor operation.
OUTPUT
Recommendations and Considerations

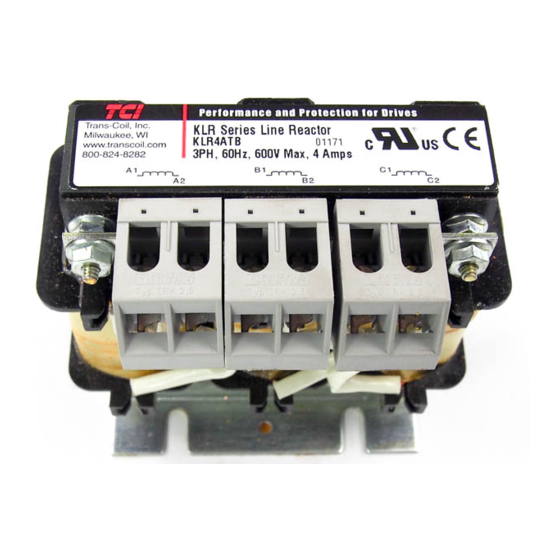

When installing the KLR/KDR Reactors on
the OUTPUT side of
Frequency Drive (VFD), please use the
following guidelines:
TCI recommends 1.5% impedance
reactors to be used on the output of the
VFD. In the case of the KDR line, use only
the KDR OUTPUT reactors.
Reactors should be mounted as
close to the output terminals of the VFD as
possible.
TCI suggests that the reactor be
used in applications where the motor lead
length is less than 100
applications with motor lead lengths greater
than 100 feet, TCI offers V1k / KLC Output
Filters and KMG MotorGuard
Performance Sinewave Filters.
Reactors are sized by the Full Load
Amps located on the motor nameplate.
Please contact TCI Technical Support or your
TCI distributor for application information
regarding the use of these reactors on the
load or output side of the VFD, or in
applications where inductors are used.
TCI, LLC
7878 N. 86th Street
Milwaukee, Wisconsin 53224
Ph: 800-TCI-8282
www.transcoil.com
the Variable
Performance and Protection for Drives
Reactor
feet. For
Installation
High
Milwaukee, Wisconsin 53224
Revision 3.2
Guide
TCI, LLC
7878 N. 86th Street
Ph: 800-TCI-8282
www.transcoil.com
Part # 24774 Jun. 5, 2009
