Meech Hyperion BarMaster 900 Operating Manual

Remote programmer
Hide thumbs Also See for Hyperion BarMaster 900:

Advertisement

Quick Links

Download this manual
2017
Operating Manual
900 Hyperion BarMaster

Advertisement

loading
Need help?

Need help?

Do you have a question about the Hyperion BarMaster 900 and is the answer not in the manual?

Questions and answers

Related Manuals for Meech Hyperion BarMaster 900

Summary of Contents for Meech Hyperion BarMaster 900

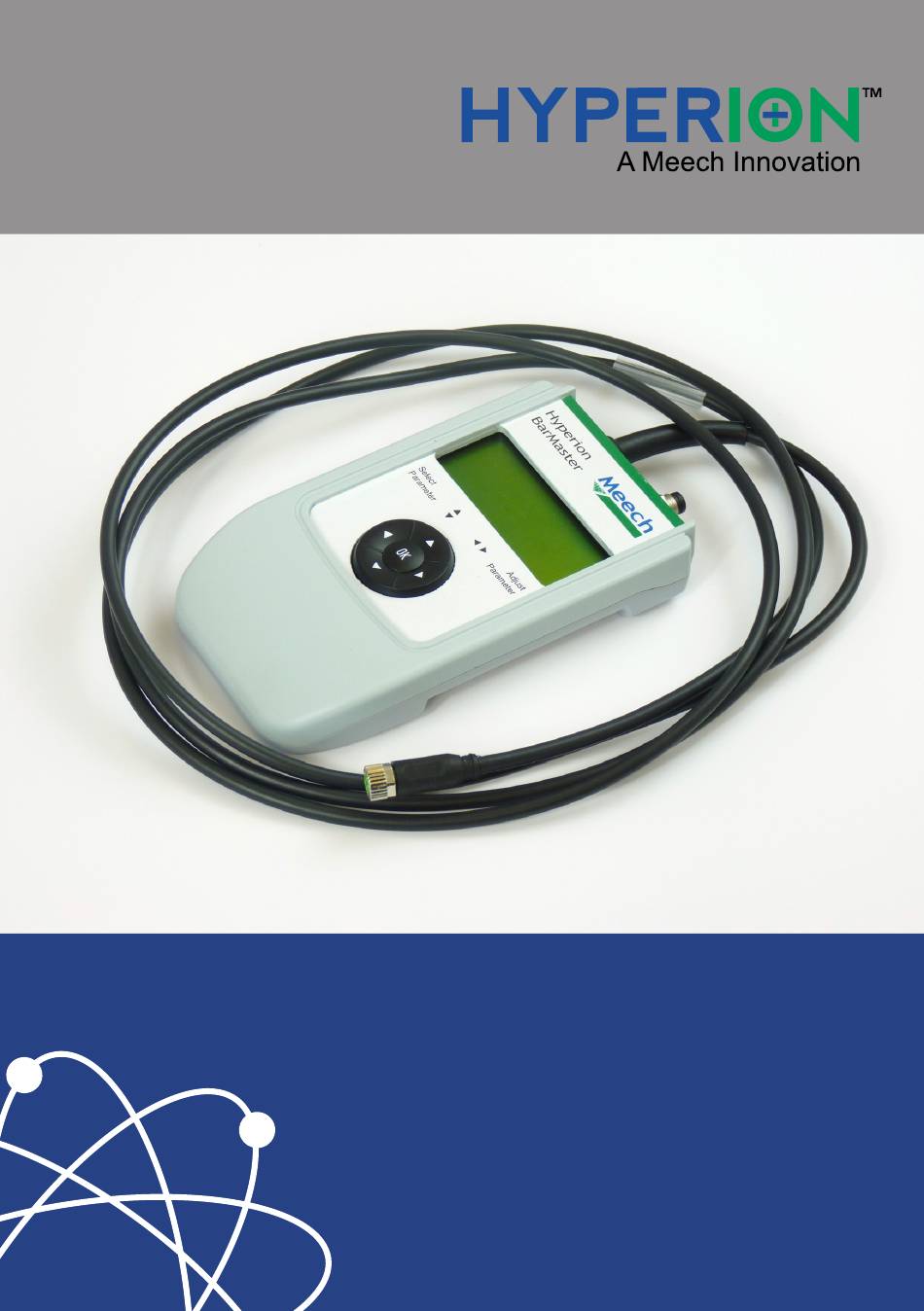

  • Page 1 2017 Operating Manual 900 Hyperion BarMaster...

  • Page 3: Table Of Contents

    Products shown in this document may be covered by one or more patents, patents applied for and/or registered designs and/or trade marks. For further information please refer to our Head Office or visit www.meech.com. © Meech Static Eliminators Ltd., 26.10..2017...

  • Page 5: Introduction

    Introduction The Meech BarMaster remote programmer allows you to unlock the full performance of the range Hyperion bars with Integrated Power Supplies (IPS). Whilst the default settings of Hyperion IPS bars are suitable for most applications, this unique device provides adjustment of the output balance and frequency and the clean-pin alert settings.

  • Page 6: Unpacking And Inspection

    Unpacking And Inspection Your Hyperion BarMaster was carefully packed at the factory in a container designed to protect it from accidental damage. Nevertheless, we recommend careful examination of the carton and contents for any damage. If damage is evident, do not destroy the carton or packing material and immediately notify the carrier of a possible damage claim.

  • Page 7: Connection

    Connection The BarMaster is connected in line with the ionising bar’s 24V power supply cable. The power cable is connected to the BarMaster and, in turn, its cable is connected to the bar. Warning: It is recommended to turn-off the 24V power supply to the bar and wait a few seconds before disconnecting the power cable from the bar.

  • Page 8: Controls

    Controls The flashing cursor can be moved to the parameter to be adjusted. To scroll through the menu use the up down function. „ To adjust Frequency, Balance, feedback, Alarm levels or to reset the ion reference „ current use left and right function Please note the OK button in the centre of the toggle is redundant and has no „...

  • Page 9: Adjustments

    Adjustments Frequency Your Hyperion bar is set to a default frequency that provides good performance across its operating range. Lower frequencies can assist long-range use. Higher frequencies give better results at short-range. Balance To get faster decay times, it is possible to adjust the output balance. Negative static charges will be neutralised faster if the bar is biased to a positive balance (>50 Pos).
  • Page 10 Reset Ion Ref. This function is used to set reference performance level when the bar is clean. It is set by Meech during initial calibration. It should be reset after making changes to either the balance or the frequency of the output.

  • Page 11: Repairs And Warranty

    Repairs And Warranty The Meech BarMaster is warranted by Meech Static Eliminators Ltd. to the original purchaser against defects in material and workmanship for two years after shipment. Should any malfunction occur, please return the bar directly to Meech Static Eliminators Ltd.
  • Page 12 Meech International (UK) Meech Static Eliminators USA Inc Meech Elektrostatik SA 2 Network Point 2915 Newpark Drive Kaiserbaracke 66 Range Road, Witney Norton, OH 44203 B-4780 St.Vith OX29 0YN, UK Belgium Tel: +44 (0)1993 706700 Tel: +1 330 564 2000 / 1 800 232 4210...
