Pre-charged pressure tanks
Table of Contents

Advertisement

Available languages

Available languages

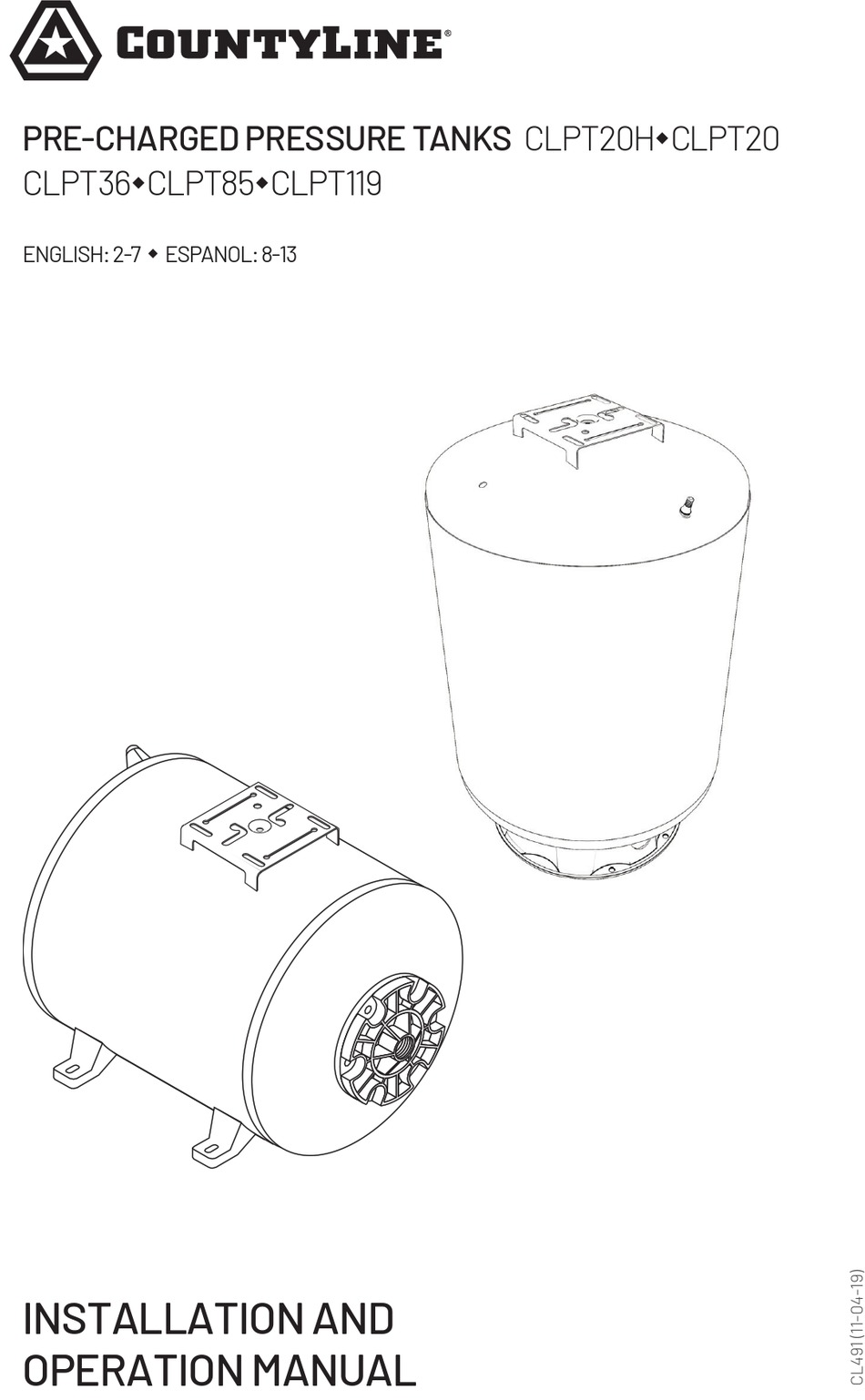

PRE-CHARGED PRESSURE TANKS CLPT20H
CLPT36
CLPT85
ENGLISH: 2-7
ESPANOL: 8-13
INSTALLATION AND
OPERATION MANUAL
CLPT119
CLPT20
2878 1013
