Summary of Contents for JTECH PREMISES PAGER SYSTEM SmartAlert 200 Series

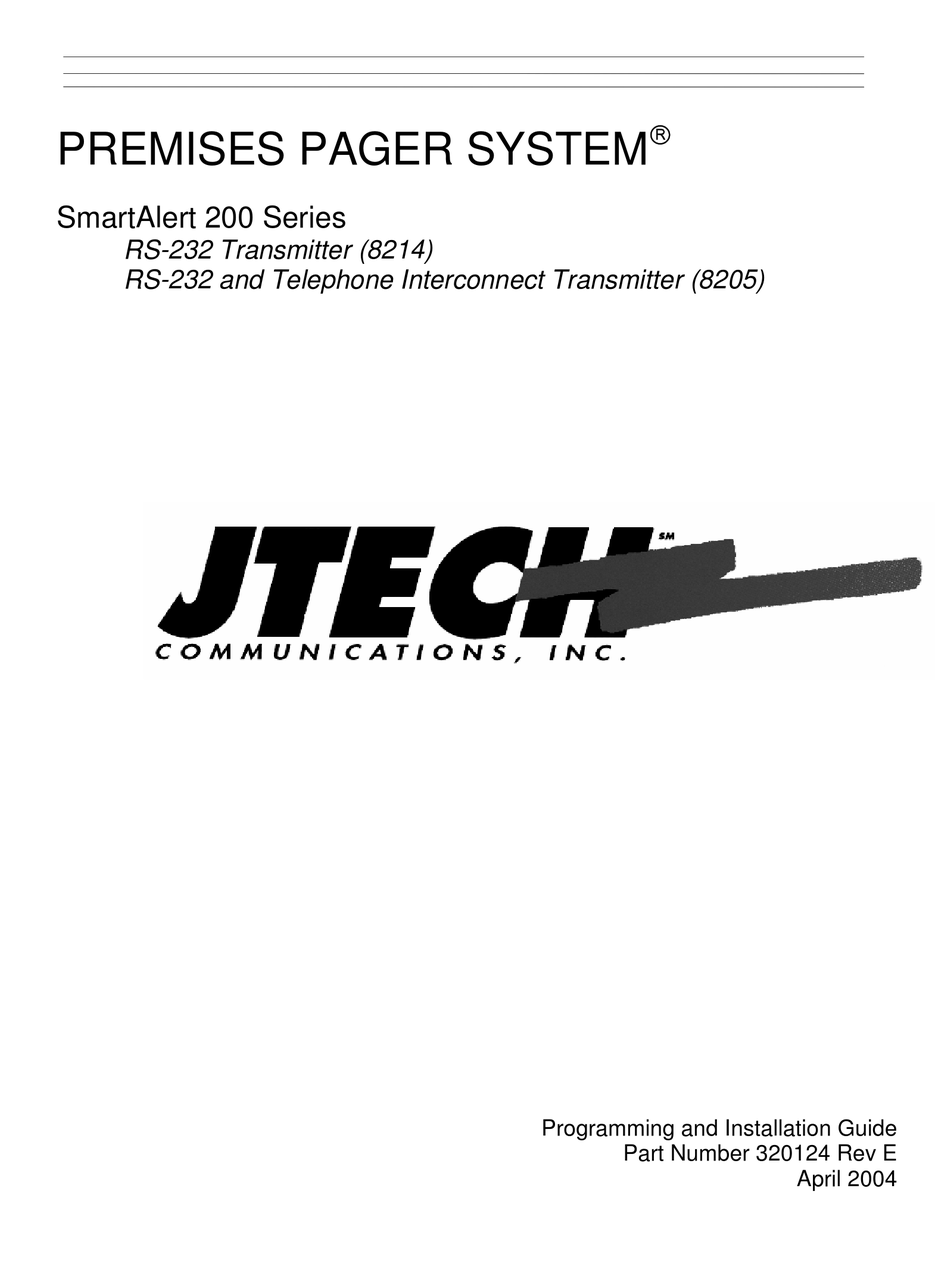

- Page 1 PREMISES PAGER SYSTEM SmartAlert 200 Series RS-232 Transmitter (8214) RS-232 and Telephone Interconnect Transmitter (8205) Programming and Installation Guide Part Number 320124 Rev E April 2004...
- Page 3 Thank you for choosing JTECH Communications Inc. as the provider for your on- premises paging requirements. We truly appreciate your confidence in our products. At JTECH there is no greater commitment than providing you with total customer satisfaction.
-
Page 5: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ......................ii SYSTEM OVERVIEW AND COMPONENTS.............. 1 PAGER TYPES ......................2 PROGRAMMING TERMINOLOGY FOR THE SMARTALERT RS232 ...... 3 RS232 I ..7 NTERFACE ARDWARE ANDSHAKING EQUEST LEAR ........................ 7 ..................... 8 ESSAGE ORMAT ................9 ETAILS OF THE ESSAGE ARTS... -
Page 7: System Overview And Components
• Warranty registration card Please inspect the system upon receipt. If the contents appear to be damaged contact the shipper to file a claim and notify JTECH Communications Customer Care department. If any components are missing, contact Customer Care. SmartAlert 8214/8205 Programming/Installation Guide... -
Page 8: Pager Types
UHF Desktop Transmitter product documentation (P/N 325005) for complete details on these JTECH paging products. JTECH pagers conform to a number of industry standards. Seven (7) variables are typical of most pagers. These variables are: 1. Language Recognized: POCSAG 2. -
Page 9: Programming Terminology For The Smartalert Rs232
Over the years a number radio frequency data patterns (Languages) have evolved to “speak” to pagers. POCSAG is the most widely used language today and a language that JTECH products support. POCSAG is simply an algorithm that is used to encode alphanumeric and numeric data for transmission via modulated radio waves. - Page 10 “downloaded” to the pager via special equipment available from most paging dealers. JTECH uses a specific descriptor in the paging format used to “Talk” to its transmitters to allow the user to select either a normal priority or high priority message.
- Page 11 0000016. Numeric Pager Numeric pagers sold by JTECH are capable of displaying 1 to 16-digits. A numeric pager will not display an alpha message. When this class of pager is targeted to receive a page it must receive a numeric only radio transmission. If a numeric only pager receives an alphanumeric transmission sent to its cap code it will attempt to decode the message and will then display ‘garbage’...
- Page 12 Programming your Application to Communicate with the SmartAlert RS232 In order to communicate with the SmartAlert via an RS-232 interface, an RS-232 baud rate, message protocol, and message format must be defined and adhered to by any software application wishing to successfully send pages. Physical Interfaces Data Connection Five lines are connected on the Female DB9 on the transmitter.
-
Page 13: Rs232 Interface Hardware Handshaking-Request To Send / Clear To Send
Communication Protocol The SmartAlert Transmitter requires, in addition to the correct physical interconnection, that the proper RS232 protocol be followed. That protocol is: • 1200 baud • 8 data bits • No parity • 1 stop bit In addition, the proper message format must be followed. The message format descriptions follow. -
Page 14: Message Format
Message Format The recommended format is the 7-digit extended format. The 7-digit extended format consists of six parts: 1. Preamble 2. Function Bit (not used in the 3-digit message format) 3. Cap Code 4. Separator 5. Pager Message 6. Terminator A code sample is shown below. -
Page 15: Details Of The Message Parts
‘cap code’ number provided by 8 prior to transmission to the pager. For example, the JTECH pager may have two labels. One will be the ‘pager ID’ number the other will be the cap code number. The pager ID number will be the cap code divided by 8. - Page 16 4. Separator A separator is used to separate the Cap Code from the actual message to be displayed. The separator in the 7-digit extended format provides three additional pieces of information to the SmartAlert transmitter. That information is what type of pager that is to be spoken to (alpha or numeric only), what baud rate is to be used (512, 1200, or 2400), and inverted or non-inverted data.
-
Page 17: Hardware Installation
Hardware Installation The SmartAlert Transmitter is wired directly to a communications port on your host device. This may be a Personal Computer or other electronic device and to any analog phone jack on your telephone system. The first consideration in installation is regarding the placement of the SmartAlert Transmitter. -
Page 18: Operation
Follow the directions below for the SmartAlert 1. Attach the antenna to the BNC antenna port marked A1. 2. Attach the male end of DB-9 straight through cable to the female DB-9 connector located on the front of the SmartAlert transmitter. The PC requires only a straight through DB-9 male to DB-9 Female cable. -
Page 19: Troubleshooting
Group Paging Using the Telephone Interconnect Group paging works with numeric pagers only. 1. Pick up the receiver, listen for the dial tone and dial any of the system extensions that have been assigned to the Paging System. You will hear a single beep indicating the system is ready for you to enter the group number. -
Page 20: Service
If you need service, dial toll-free 800.321.6221 or 561.997.0772 and select option 6 for JTECH Customer Care. If your problem cannot be solved over the phone by one of our service technicians, we will issue you a return materials authorization (RMA) number for you to send the product in for service. -
Page 21: Appendix A - Telephone Interconnect Specifications
Appendix A - Telephone Interconnect Specifications Telephone Interfacing Phone Line Interface – The SmartAlert transmitter with telephone will accept input from end-to-end (line level) telephone circuits. Selector or trunk level input is not possible. The phones and phone system must be capable of DTMF and provide a Bell standard ringing voltage. -
Page 22: Appendix B - Detailed Technical Specifications
• The telephone system then detects current flowing from its source of battery, through the SmartAlert transmitter with telephone's loop closure, and back to the telephone system. The current flow energizes relays in the telephone system, which connect bi-directional audio lines through Tip and Ring to the SmartAlert transmitter with telephone. -
Page 23: General Terms And Conditions
2. Payment Terms. Normal payment terms are C.O.D. unless otherwise set forth in this proposal. Any outstanding balances not paid by the date on which they are due to JTECH Communications Inc. Inc. shall be subject to interest of 1... - Page 24 JTECH, Buyer shall be liable immediately thereupon, to pay to JTECH the full contract price for all goods completed by JTECH pursuant to the Agreement and for all work in process at the time of termination.
- Page 25 JTECH reserves the right of declining to make any shipment called for by the contract between seller and buyer whenever, for any reason, there is doubt in JTECH's sole judgment, as to buyer's willingness or ability to pay for the goods ordered on Buyer's solvency and JTECH shall not, in such event, be liable for breach or nonperformance of this Agreement in whole or in part.
- Page 26 JTECH Communications Inc. 6413 Congress Ave., Suite 150 Boca Raton, Florida 33487 USA Toll Free: (800) 321-6221 Telephone: (561) 997-0772 Fax: (561) 997-0773 www.jtech.com Part Number: 320124 Rev E Got Questions? Need Help? Call JTECH Customer Care at 800-321-6221, Option 6.
