Summary of Contents for Stanley Healthcare Hugs CGS-HGS-1000-U
- Page 1 Hugs® Wi-Fi Tag Charger User GUide...
-
Page 2: Warnings
• Train staff to operate the Hugs® Wi-Fi Tag Charger correctly. refer to the individual product manuals/instructions provided with system components as a basis for training, or contact sTANLeY Healthcare at 800-380-8883 to arrange for training provided by sTANLeY or its Partner on a fee basis. -
Page 3: Table Of Contents
Table of Contents Warnings Cautions Introduction Overview intended Use documentation About the Tag Charger General description dimensions and Weight Operating and display Modes for Leds Installing the Charger Wall Mounted desk Mounted Setting Up the Charger Using the Charger inserting the Tag into the Charger removing the Tag from the Charger Charging Information Battery Life and Charging Time... - Page 4 Charging status Battery status Battery status Alerts in the Census List Maintenance Operational Checks Cleaning instructions Supplies and Accessories Model Numbers Compliance and Safety Limited Warranty and Disclaimer Hugs® Wi-Fi Tag Charger User Guide...
-
Page 5: Introduction

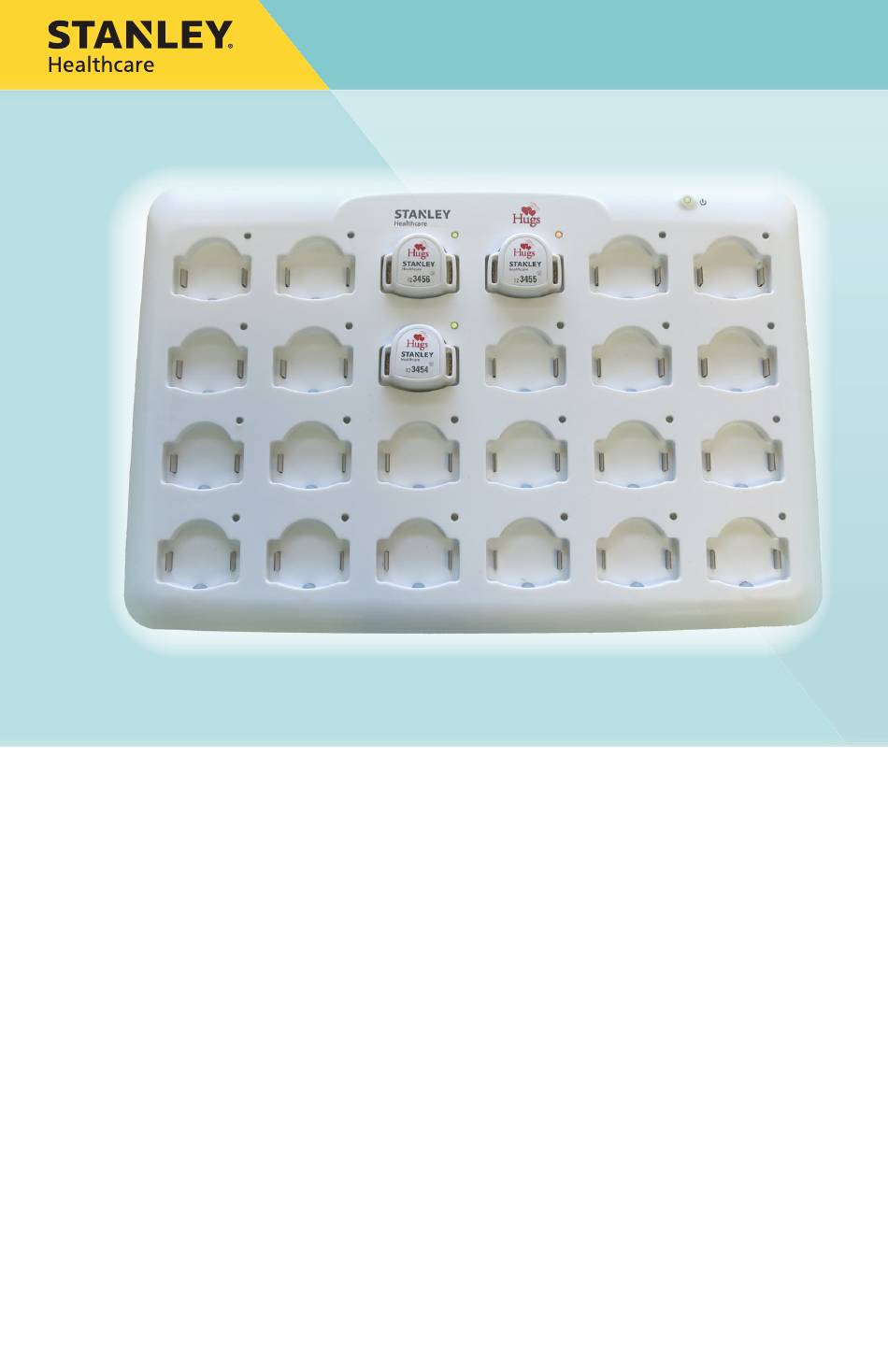

introduction Introduction Overview The Hugs Wi-Fi Tag Charger can charge up to 24 tags simultaneously. Leds display the charging status for each Hugs Tag, as well as indicating tag and charger slot problems. The Hugs Tag is reset when placed in the charger, but the history remains in the system. -
Page 6: About The Tag Charger
About the Tag Charger About the Tag Charger General Description This section describes the parts and Leds on the Charger. ON/OFF SWITCH CHARGER STATUS HUGS TAG SLOT CHARGING CHARGING CONTACTS POWER SOCKET Dimensions and Weight • size (Height x Width x Length): 32 x 300 x 210 mm (1.26 x 11.81 x 8.27 in.) •... - Page 7 About the Tag Charger ON/OFF Switch After the Charger is plugged in, press the ON/OFF switch to the ON position. Charger Status The Charger status Led is located at the top-right on the front of the Charger. When the Charger is plugged in and turned on, the Charger status Led turns AMBer.
- Page 8 About the Tag Charger each Hugs Tag slot in the Charger has its own charging Led (24 Leds in total). There are three (3) available colors for the Leds: GreeN, YeLLOW and red. For more information about the Led color indications, see “Operating and display Modes for Leds”...
-
Page 9: Operating And Display Modes For Leds
About the Tag Charger Operating and Display Modes for LEDs The following table describes the indications for the Charging Leds. each Hug Tag slot has its own Charging Led. Color Description GREEN Battery is fully charged. YELLOW Charging in progress. RED FLASHING Issue with the Hugs Tag. -
Page 10: Installing The Charger
installing the Charger Installing the Charger The following items are included with the Hugs Tag Charger: • Two (2) #6 Philips head screws • Two (2) plastic wall anchors • Mounting plate Wall Mounted establish a location on the wall for the Hugs Tag Charger. draw two (2) holes on the wall, at a level distance 262 mm apart, from center to center. -
Page 11: Setting Up The Charger
setting Up the Charger Setting Up the Charger Plug the supplied power cable into the power socket located on the side of the Charger. Plug the other end into the wall external outlet. Press the ON/OFF switch to the ON position. The Charger status Led turns OrANGe indicating that the Charger is now ready for use. -
Page 12: Using The Charger
Using the Charger Using the Charger Inserting the Tag into the Charger ensure the Hugs Tag is clean to prevent contamination to the Charger. The tag must also be completely dry before placing in the Charger. Aim the bottom of the Hugs Tag towards the small bump located in the inferior portion of the tag slot in the Charger. - Page 13 Using the Charger Push down firmly to insert the tag into the slot. The Charging Led turns OrANGe, indicating that the Hugs Tag is now charging. Hugs® Wi-Fi Tag Charger User Guide...
-
Page 14: Removing The Tag From The Charger
Using the Charger Removing the Tag from the Charger Push the tag towards the small bump. Lift the tag out of the slot. Hugs® Wi-Fi Tag Charger User Guide... -
Page 15: Charging Information
Charging information Charging Information The battery charging process does not harm the Hugs Tag or its operational characteristics. Battery Life and Charging Time • Battery Life - Once charged, the Hugs Tag will typically last 14 days under normal use. it is, however, recommended to place the Hugs Tag in the Charger between uses (ensure the tag is cleaned first!). -
Page 16: Tag Battery Status In The Mobileview Software
Tag Battery status in the MobileView software Tag Battery Status in the MobileView Software Row Color in the Census List To help you remember what each row color means in the Census List, click the Color Legend icon in the upper-right corner on the Hugs homepage: The Low Battery (brown) appears only when a Low Battery alarm has been declared. -
Page 17: Charging Status
Tag Battery status in the MobileView software Charging Status The charging status of the Hugs Tag can be verified under Hugs Tags on the Hugs homepage. • Available: The tag is not reporting low battery, not assigned and is not in the charger. -
Page 18: Battery Status Alerts In The Census List
Tag Battery status in the MobileView software Click the details link to obtain more information about the Hugs Tag. select the Tags tab to view the battery status for the specific Hugs Tag: Battery Status Alerts in the Census List The Battery Level event (configurable) alerts the user that a battery is getting low (below a certain amount). -
Page 19: Maintenance
Maintenance Maintenance Operational Checks it is recommended to verify all Leds are working by placing a Hugs Tag in each of the slots, at least once a week. if, at any time, an Led fails to light up (even when you switch the Charger Off then On again), contact support at 1-800-380-8883. -
Page 20: Supplies And Accessories
supplies and Accessories Supplies and Accessories The Hugs Tag Charger is shipped with the following components: • 110/220V AC (autoselect) • external power supply: should support 12VdC @ 3A • Power cable (3 meters*) replaceable and country-specific for the following areas: ... -
Page 21: Compliance And Safety
Compliance and Safety • UL 60950 • eN 60950 - directive – rTTe (1999/5/eC) • LVd (2006/95/eC) • UL sTd 294 • ieC/eN 60601-1-3 • isO 14971 • rOHs (directive 2011-65-eU/eC) Federal Communication Commission (FCC) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. -
Page 22: Limited Warranty And Disclaimer
Customer and continuing for a period of one (1) year thereafter (the “Warranty Period”), the hardware components of sTANLeY Healthcare Hugs® on Wi-Fi Products (the “Hardware”) will be free from defects in material and workmanship under normal use subject to the terms hereof. - Page 23 The warranty set forth above shall not be enlarged and no obligation or liability shall arise out of sTANLeY’s rendering of technical advice, facilities or service in connection with Customer’s purchase of the sTANLeY Healthcare Hugs® on Wi-Fi Products. Except for the foregoing warranties, which shall be the exclusive...
- Page 24 Healthcare is proud to be part of stanley Black & decker, inc. For more information, visit www.stanleyhealthcare.com. STANLEY Healthcare Phone: +1-888-622-6992 130 Turner Street, Waltham, MA 02453 Email: stanleyhealthcare@sbdinc.com © 2014 STANLEY Healthcare. All rights reserved. Doc Part # 0980-041-000 Rev B. 07/2014.
