Summary of Contents for GIGAMEDIA GGM IPAP1120

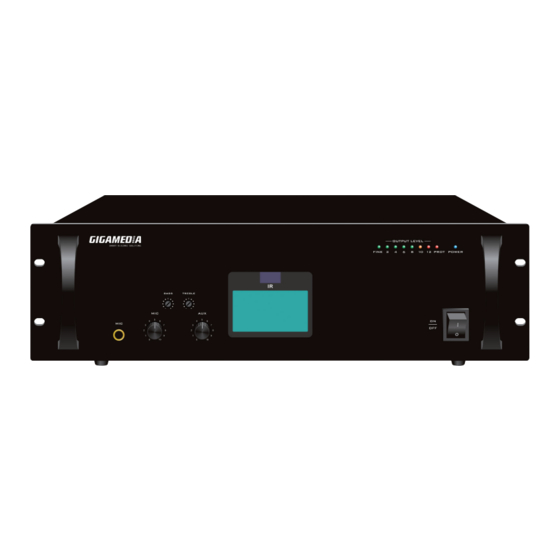

- Page 1 PUBLIC ADDRESS GGM IPAP1120 USER GGM IPAP1240 GGM IPAP1350 MANUAL GGM IPAP1500 Please follow the instructions in this manual to obtain the optimum results from this unit. We also recommend that you keep this manual handy for future reference. ...
-
Page 2: Table Of Contents
This product bears the CE mark which certifies its conformity with the directives LVD 2014/35/EU ; EMC 2014/30/EU and RoHS 2011/65/EU. Compliance has been assessed in accordance with applicable standards in effect. GIGAMEDIA User manual (GGM IPAPxxx) www.gigamedia.net... -
Page 3: Safety Precautions
Doing so may result in the unit falling down, materials in the ventilation slots of the unit’s cover, causing personal injury and/or property damage. as this may result in fire or electric shock. GIGAMEDIA User manual (GGM IPAPxxx) www.gigamedia.net... - Page 4 Doing otherwise may cause a fire or electric shock. An all-pole mains switch with a contact separation of at least 3 mm in each pole shall be incorporated in the electrical installation of the building. GIGAMEDIA User manual (GGM IPAPxxx) www.gigamedia.net...
-
Page 5: Application
13. Support DHCP, compatible routers, switches, bridges gateways, modem, internet, 2G, 3G, 4G, mul- ticast, unicast and other arbitrary network structure. 14. Digital products, easy expansion, no geographical restriction, no additional management equip- ment, without cables construction, easy installation. GIGAMEDIA User manual (GGM IPAPxxx) www.gigamedia.net... -
Page 6: Nomenclature And Functions
11. TREBLE adjust the response of treble. Increase treble output by knob clockwise rotation and decrease it by knob anticlockwise rotation. 12. BASS adjust the response of bass. Increase bass output by knob clockwise rotation and decrease it by knob anticlockwise rotation. GIGAMEDIA User manual (GGM IPAPxxx) www.gigamedia.net... -
Page 7: Rear Panel
06. Aux audio source input. 07. EMC input port. 08. Line output port. 09. RJ45 network interface, connecting with the internet of PC host/ Ethernet/switch. 10. Cooling fan. GIGAMEDIA User manual (GGM IPAPxxx) www.gigamedia.net... -
Page 8: Operation
“Write” to apply the configuration and check with the button “Ping” to see if it is reachable (Figure 4). When all your equipments are configured, you can close the software “iptool”. FIGURE 3 FIGURE 4 GIGAMEDIA User manual (GGM IPAPxxx) www.gigamedia.net... -
Page 9: Wiring Diagram
6. SYSTEM WIRING DIAGRAM GIGAMEDIA User manual (GGM IPAPxxx) www.gigamedia.net... - Page 10 GIGAMEDIA User manual (GGM IPAPxxx) www.gigamedia.net...
-
Page 11: Specifications
AC ~ 230 V / 50 Hz Size 484 x 303 x 88 mm 484 x 359 x 132 mm 484 x 359 x 132 mm 484 x 359 x 132 mm Net weight 9.7 kg 13.7 kg 15.5 kg 18 kg GIGAMEDIA User manual (GGM IPAPxxx) www.gigamedia.net...
