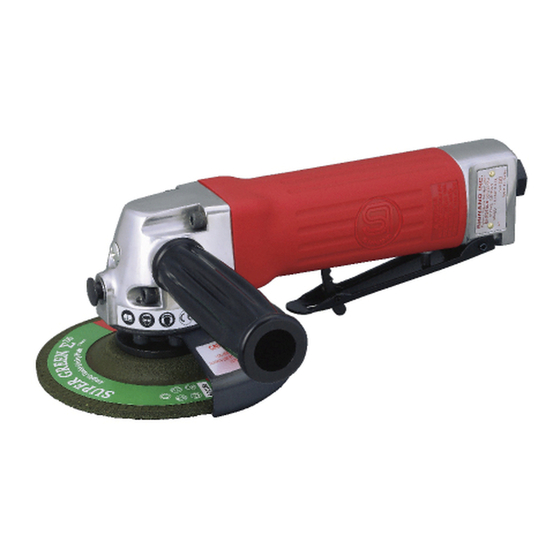

Shinano SI-2515LA Instruction Manual

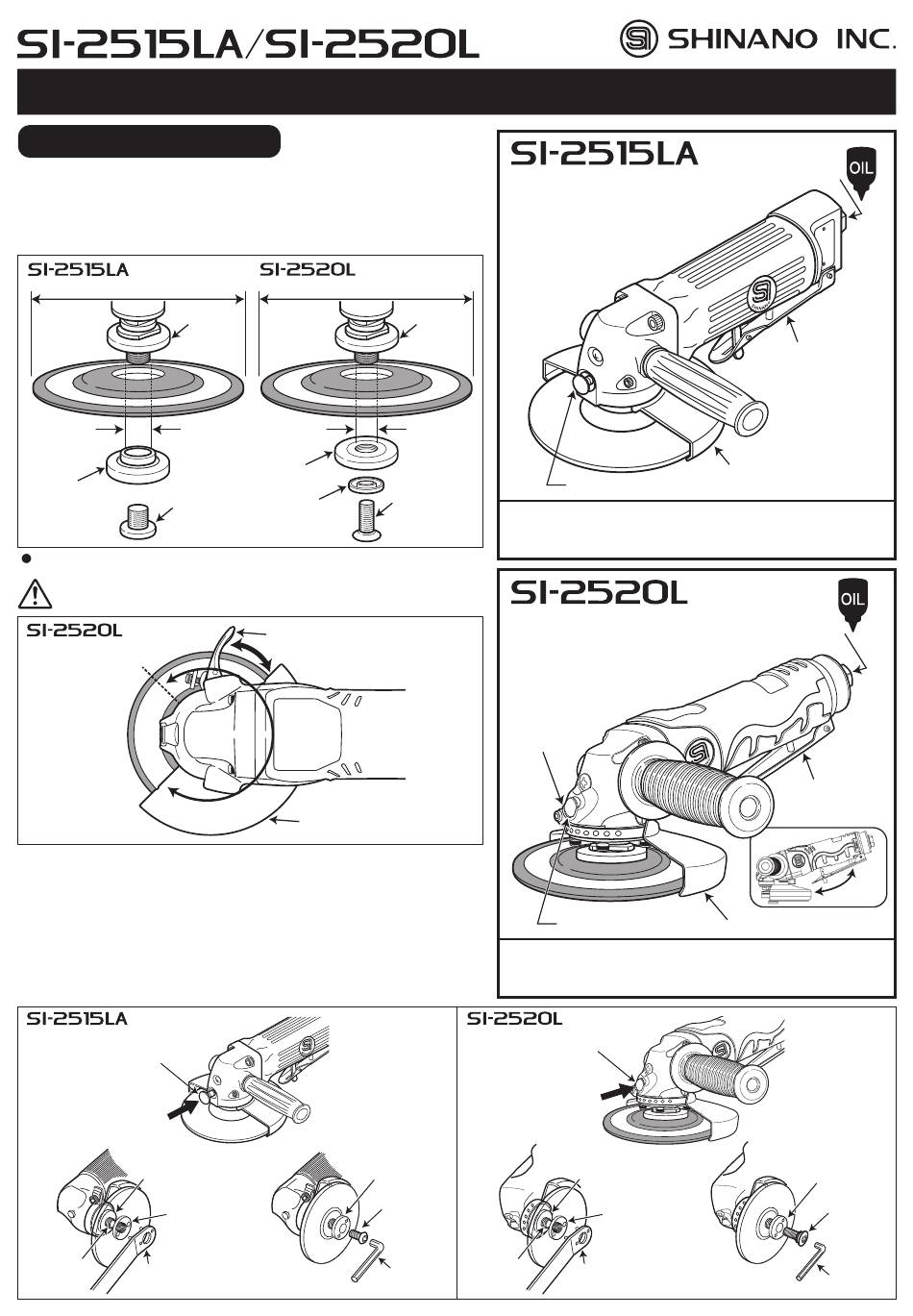

INSTRUCTION MANUAL FOR 5 " DISC GRINDERS

Operation Procedures

1.Connect the coupler to the air inlet ❶ on the rear side of tool.
2.Make sure the disc cover ❷ is firmly mounted in place. Make
sure the diameters of the grinding stone and the hole are suit
each tool.
Grinding stone dia.
Disc receiver
Hole size
Disc nut
Cap screw
Adjustable disc cover can be moved with turning to right/left.
Before use, make sure the adjustable disc cover is firmly
locked to the tool in position.
3.Pour approx. 0.5cc (2 to 3 drops) of the oil through the coupler.
Connect it to the air hose, and run for 3 to 5 seconds to
circulate the oil.
4.When the grinding stone is installed, press the spindle lock
button ❸ at the angle head, and the spindle will stop. Turn it
counterclockwise with the pin spanner, and firmly tighten the
spindle.
Spindle lock button
Push
①
Disc receiver
Disc nut
Spindle
Pin spanner
②
Grinding stone dia.
Disc receiver
Hole size
Disc nut
Washer
Cap screw
Lock lever
270°
Ajustable disc cover
Disc nut
Cap screw
Hex. wrench
③
Max. rpm:12,000rpm
Grinding stone size :
125φmm x hole 22φmm
❸Spindle lock button
Accessories : 5" Disc (1), Pin spanner (1),
Hex. wrench (1),
Safety instructions (1)
Max. rpm:12,000rpm
Grinding stone size :
125φmm x hole 22φmm
Lock lever
❸Spindle lock button
Accessories : 5" Disc (1), Pin spanner (1),
Hex. wrench (1),
Safety instructions (1)
Spindle lock button
Push
①
Disc receiver
Disc nut
Spindle
Pin spanner
②
❶Air inlet
❹Safety lever
❷Disc cover
❶Air inlet
❹Safety lever
105°
❷Disc cover
Disc nut
Cap screw
③
Hex. wrench
