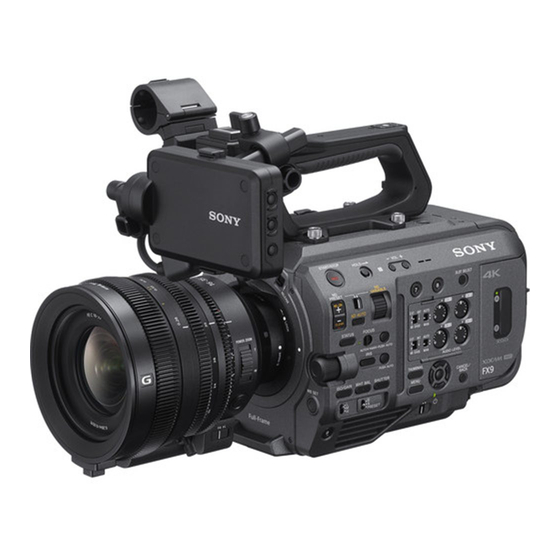

Page 1 SOLID-STATE MEMORY CAMCORDER PXW-FX9V PXW-FX9VK PXW-FX9T PXW-FX9TK 利用条件:　 ① 本情報はソニー製品の販売、設置、設定、使用の目的でのみご利用ください。かかる目的以外での利用を禁止します。 ② 著作者の事前の書面による許可なく、本情報の全部または一部の複写、複製、転載、改変、翻訳、送信等を禁止します。情報改訂: 本情報は、当社の裁量により、予告なく変更されることがあります。ご使用される場合、本情報が最新の情報であることを確認のうえ、ご使用ください。 Conditions of Use: (1) Please use this information only for the purpose of sales, installation, configuration, and use of Sony products. Using this information for any purpose other than the purpose described foregoing is forbidden.
Page 2 警告このマニュアルは，サービス専用です。お客様が，このマニュアルに記載された設置や保守，点検，修理などを行うと感電や火災，人身事故につながることがあります。危険をさけるため，サービストレーニングを受けた技術者のみご使用ください。 WARNING This manual is intended for qualified service personnel only. To reduce the risk of electric shock, fire or injury, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so. Refer all servicing to qualified service personnel.
Page 3 注意 FÖRSIKTIGHET! 指定以外の電池に交換すると，破裂する危険があり Fara för explosion vid felaktigt placerat batteri. ます。 Byt endast mot samma eller likvärdig typ av batteri, 必ず指定の電池に交換してください。 enligt tillverkarens rekommendationer. 使用済みの電池は，国または地域の法令に従って När du kasserar batteriet ska du följa rådande lagar 処理してください。 för regionen eller landet. CAUTION PAS PÅ...
Page 4: Table Of Contents
Table of Contents Section 1 Service Overview.................................. 5 1-1. Product Comparison Table ................................5 1-2. Location of Boards ..................................6 1-3. Circuit Description ..................................8 1-3-1. BI-371 Board ..................................8 1-3-2. DPR-394 Board ..................................8 1-3-3. DIF-278 Board ..................................8 1-3-4.
Page 5 1-3-38. UC-2 Board ..................................12 1-3-39. FP-310 Board ..................................12 1-3-40. FP-311 Board ..................................12 1-3-41. FP-312 Board ..................................12 1-3-42. GP-1019 Board .................................. 12 1-3-43. WF-12 Board ..................................12 1-4. Connectors and Cables ................................13 1-5. Connector Input/Output Signals..............................13 1-5-1.
Page 6 2-4-2. SS-108 Board ..................................51 2-4-3. TG-290 Board, SEC-59 Board ............................. 53 2-4-4. VSW-82 Board ..................................54 2-4-5. KSW-72 Board ..................................56 2-5. Terminal Assembly ..................................59 2-6. Front Assembly ................................... 61 2-7. DPR-394 Board ..................................63 2-8. DC Fan ......................................66 2-9.
Page 7 DD Board, RE Board ..................................99 Outside Panel ....................................100 Inside Panel-1 ....................................102 Inside Panel-2 ....................................103 Inside Panel-3 ....................................104 Inside Panel-4 ....................................105 Front ......................................106 Media Assembly ................................... 107 Rear ......................................108 Handle-1 ....................................... 109 Handle-2 ....................................... 110 Handle-3 .......................................
Page 8: Section 1 Service Overview
Section 1 Service Overview 1-1. Product Comparison Table Model PXW-FX9V PXW-FX9VK PXW-FX9T PXW-FX9TK Destination UC, J, CN1, CEE UC, CEE COLOR system NTSC/PAL (Selectable) NTSC/PAL (Selectable) — — Internal recording media — — LENS SELP28135G SELP28135G — — Projector ✓...
Page 9: Location Of Boards
1-2. Location of Boards SW-1757 SS-108 SD-74 EC-94 KSW-72 HP-181 FU-84 PM-28 VSW-82 TG-290 SEC-59 GCN-20 DIF-278 DC-185 IF-1377 DD-55 SD-127 RE-349 VIF-78 TC-118 JK-108 VIO-38 DPR-394 CT-289 AXM-62 ASW-69 WF-12...
Page 10 GP-1019 HN-449 HC-54 PD-129 PSW-110 PR-340 UC-2 UIF-16...
Page 11: Circuit Description
1-3. Circuit Description 1-3-1. BI-371 Board The BI-371 board contains a full-frame CMOS image sensor. Power is supplied to this board from the DPR-394 board through the connector. The CMOS image sensor converts an optical signal to an electrical signal, and its internal A/D converter converts the electrical signal to a digital signal.
Page 12: Board
1-3-7. SD-74 Board The SD-74 board contains an SD/MS slot (CN001), an LED (D001) for displaying SD/MS ACCESS, a transistor (Q001), and an ATTENTION switch (S001). 1-3-8. EC-94 Board The EC-94 board contains XQD card slots (SLOT A: CN902, SLOT B：CN903), XQD power control devices (IC900, IC901, IC902, IC903, IC904, Q908, Q909, Q910, and Q911), and XQD ACCESS display devices (D901, D902, D903, D911, D912, D913, D924, D925, D926, D934, D935, D936, Q900, Q901, Q902, and Q907).
Page 13: Board
1-3-16. AXM-62 Board The AXM-62 board contains an XLR connector and an external input ADC. External audio input signals connected to the XLR connector are input to the ADC and are converted to digital data. The converted digital data is input to IC0700 on the DIF-278 board. 1-3-17.
Page 14: Board
1-3-25. HC-54 Board The HC-54 board in the handle is a connector board for relay between the unit and the handle. This board relays switch signals of the handle, GPS receiver, and power and communication lines of the MI SHOE. 1-3-26.
Page 15: Board
1-3-35. PSW-110 Board The PSW-110 board contains ZEBRA, PEAKING, and ASSIGN10 buttons. 1-3-36. PR-340 Board The PR-340 board contains a MIRROR switch (3-position slide switch) to switch ROTATE, B/T, and OFF of the viewfinder. 1-3-37. UIF-16 Board The UIF-16 board is a grip board to control the grip using IC2002. When this board is connected to the camera body, the LED (D2002) lights green.
Page 16: Connectors And Cables
1-4. Connectors and Cables When connecting cables to connectors during installation or service, use connectors and cables that meet the specifications of this unit. 1-5. Connector Input/Output Signals...
Page 17: Input Signals
1-5-1. Input Signals DC IN DC jack EXT DC - External View - AUDIO INPUT 1/2 XLR 3-pin, Female - External View - (0 dBu = 0.775 V rms) Signal Specifications — XLR HOT LINE: +4 dBu/0 dBu/-3 dBu (/EBUL)/10 k ohms MIC: -80 dBu to -30 dBu/3 k ohms XLR COLD LINE: +4 dBu/0 dBu/-3 dBu(/EBUL)/10 k ohms...
Page 18: Input/Output Signals
USB/MULTI Multi/micro USB -External View- Signal Specifications ＋5V power (input) USB_VBUS USB D- IN/OUT USB Data- signal USB D+ IN/OUT USB Data+ signal USB_ID OTG identification signal (not used) — D_3.3V XRESET_REQ Camera power On/Off control (for debugging) UART_TX IN/OUT UART TX for multi-connector UART_RX IN/OUT...
Page 19 HDMI OUT Type A - External View - Signal Specifications TMDS DATA2+ TMDS data 2 (+) output — TMDS DATA2 SHIELD GND for TMDS data 2 TMDS DATA2- TMDS data 2 (-) output TMDS DATA1+ TMDS data 1 (+) output —...
Page 20 11. Viewfinder connector -External View- Note The viewfinder connection cable supplied with the unit is not connected in a 1-1 or 1-N manner. Signal Specifications — — — GND(VF_DET2) Cable connection detection signal 2 (GND) CAP_TP_INT Touch panel interrupt signal +5V power LVDS DATA 2+ LVDS data 2 (+) output...
Page 21 Signal Specifications I2C_SCK Clock signal from VINE to EEPROM CS signal from VINE to LCD XRST Reset signal from VINE to LCD VF_DET Cable connection detection signal 1 BL_CONT Backlight PWM signal 12. Handle connector -External View- Signal Specifications D_1.8V_R1 +1.8V Power D_7.0V_DD +7V Power...
Page 22 Signal Specifications GPS_UART_RTS GPS Unit serial COM data GPS_UART_TXD GPS Unit serial COM data SHOE_UART_TXD GPS Unit serial COM data — — Reserved SHOE_DIG_AU_DT CH-1/2 Digital Audio Data AU_FS Fs Audio clock — AU_256FS 256Fs Audio clock — SHOE_ID2 MI Shoe ID #2 13.
Page 23 Signal Specifications HIF_AD5 IN/OUT MONI_3_TX0_N HIF_AD4 IN/OUT MONI_3_TX0_P HIF_AD3 IN/OUT — HIF_AD2 IN/OUT MONI_3_TX1_N HIF_AD1 IN/OUT MONI_3_TX1_P HIF_AD0 IN/OUT — INT2 — — INT1 — — — — ETHER_MDI0_P IN/OUT — — ETHER_MDI0_N IN/OUT — — — — — — —...
Page 24 Signal Specifications — SYS_RST DTAP_ON — — H_UR_OCP REF_HD — REF_24 H_UR_LVP — — BOB_SAG_DET REF_148Mz_P — REF_148Mz_N — — — — HD_SYNC0 — — — — — HD_SYNC1 — — — — — — — — — — USB_CN2_VBUS_EN USB_CN1_VBUS_EN —...
Page 25 Signal Specifications — RESERVE_1 — USB1_PM IN/OUT — — USB1_DP IN/OUT — — REC_TALLY — REC_TRIGER — — ADAPTOR_ID[3] — — ADAPTOR_ID[2] — ADAPTOR_ID[1] ADAPTOR_ID[0] — BOB_3.3V_DET BATT_ID LRCK BATT_SCL IN/OUT — BATT_SDA IN/OUT ADC_RST_X POWER_ON POWER_GOOD — BODY_DETECT ADAPTOR_DET1_X BOB_BATT_IN 11V to 17V BOB_BATT_IN...
Page 26: Functions Of Onboard Led Indicators
1-6. Functions of Onboard LED Indicators 1-6-1. DIF-278 Board D0700 D0851 D1000 DIF-278 Board/Side A Ref No. Name Color Description Normal State (Power On) D0700 ARIF For checking IC0700 operation D0851 Done Yellow green Indicates completion of IC0700 configuration. D1000 Yellow green Indicates IC1000 operating state.
Page 27: Board
1-6-3. UIF-16 Board UIF-16 Board/Side A Ref No. Name Color Description Normal State (Power On) D2001 JKZ9 Orange For checking IC2002 (CPLD) operation Blinks This LED blinks when IC2002 operates normally. D2002 Done Yellow green Indicates completion of IC2002 (CPLD) configuration. After configuration is completed, this LED lights when the grip is connected to the camera body.
Page 28: Notes On Replacing Parts And Printed Wiring Board
1-7. Notes on Replacing Parts and Printed Wiring Board 1-7-1. Power Supply during Repairs AC power adaptor Use the AC power adaptor when repairing the unit. 1-7-2. Precaution on Replacing the DPR-394 Board Adjustment values of the camera are written to the DPR-394 board in this unit. For this reason, when the OHB block or the DPR-394 board is replaced, activate the Adjust Manual from the Adjust Station.
Page 29: Notes For Replacing The Lcd Display Device
Method of the ID writing: • When ID is readable When the unit before repair can be turned on and ID adjustment values can be read using the Adjust Manual, perform the following work. Work: 1. Execute [Read and Save] of “RESTORE DATA” in the DATA tab. 2.
Page 30: Tools And Fixtures
1-8. Tools and Fixtures Part No. Name Usage/Note J-6323-420-A Torque screwdriver bit Tightening screws, for M2 machine screw, for M2.6 machine screw J-6325-110-A Torque screwdriver bit (M1.4) Tightening screws, for precision M1.4, for precision M1.7 J-6325-380-A Torque screwdriver bit (M2) Tightening screws, for precision M2, for precision M2.6 J-6325-400-A Torque screwdriver (3kg)
Page 31: Flexible Flat Cable, Flexible Board And Fine-Wire Coaxial Cable
1-11. Flexible Flat Cable, Flexible Board and Fine-Wire Coaxial Cable 1-11-1. Disconnecting/Connecting Flexible Flat Cable and Flexible Board Note • Be very careful not to fold flexible flat cables and flexible board. Life of flexible flat cable will be significantly shortened if them are folded and flexible board.
Page 32: Disconnecting/Connecting Fine-Wire Coaxial Cable
1-11-2. Disconnecting/Connecting Fine-Wire Coaxial Cable Note • Be very careful when handling the fine-wire coaxial cable so that fine wires are not disconnected. • When disconnecting the fine-wire coaxial cable, be sure to hold the connector. Do not attempt to pull the cable. •...
Page 33 Type B Disconnecting Hold both sides of the fine-wire coaxial cable connector, and pull the connector straight to disconnect it. Both sides of connector Hold the connector to disconnect. Correct Fine-wire coaxial cable Do not attempt to disconnect by Wrong pulling the cable.
Page 34 Type C Disconnecting Use a tool with a hook as shown above. Hook the tool's hook to the connector of the fine-wire coaxial cable. Lift the tool straight in the arrow direction with the hook hooked to disconnect the connector of the fine-wire coaxial cable. Connector Hook the tool's hook to the connector of Tool...
Page 35 Type D Disconnecting Raise the pull-bar in the direction of arrow A to unlock it. Hold both sides of the fine-wire coaxial cable connector, and pull the connector straight to disconnect it. Pull-bar Correct Hold the connector to disconnect. Fine-wire coaxial cable Connector Wrong...
Page 36: Connecting/Disconnecting Coaxial Cable
1-11-3. Connecting/Disconnecting Coaxial Cable Type A Disconnecting Correct Hold the plug to remove. Wrong Do not attempt to remove by pulling the cable. Hold the plug of coaxial cable. Pull out the coaxial cable in the direction arrow. Note Be sure to hold the plug when disconnecting the coaxial cable. Do not pull the cable. Connecting Hold the plug to connect Connecting connector...
Page 37: Section 2 Replacement Of Parts
Section 2 Replacement of Parts 2-1. Basic Knowledge 2-1-1. Tightening Torque When tightening screws used in this unit, be sure to use a torque driver and tighten screws to the specified tightening torque. If the specified tightening torque is described in the text in this section, tighten screws to the specified tightening torque in the text. Tightening torque M1.4: 0.08 ±0.02 N·m...
Page 38: Bottom Harness Guard
2-2. Bottom Harness Guard Procedure Remove the four precision screws, and then remove the front cover. Front cover Precision screws (P2 x 4) Remove the two precision screws, and then remove the BOB lid assembly in the direction of the arrow. Precision screws (P2 x 4) BOB lid assembly...
Page 39 Remove the six screws (B3 x 8) and the three precision screws (P2 x 4), and then remove the top cabinet assembly. Screws Precision screws (B3 x 8) (P2 x 4) Top cabinet assembly Screws (B3 x 8) Arrangement of harness Groove Harness Precision...
Page 40 Loosen the three captive hexagon socket bolts (M3 x 8), and then remove the shoulder pad assembly. Remove the eight hexagon socket bolts (M2.6 x 6), and then remove the tripod base. Captive hexagon Shoulder pad assembly socket bolts (M3 x 8) Hexagon socket bolts (M2.6 x 6) Tripod base...
Page 41 Remove the five precision screws, and then remove the bottom plate assembly. Precision screws (P2 x 4) Precision screws (P2 x 4) Holes Bottom plate assembly Bosses Release the two fine-wire coaxial cables from the four hooks of the bottom harness guard. 10.
Page 42 11. Remove the hook and the boss from the two holes. 12. Release the fine-wire coaxial cables from the notch (A) of the bottom harness guard, and then remove the bottom harness guard. Notch Notch (A) Bottom harness guard Hole Boss Hook Boss...
Page 43: Outside Panel Assembly
2-3. Outside Panel Assembly Preparation Remove the bottom harness guard. (Refer to “2-2. Bottom Harness Guard”.) Procedure Remove the four hexagon socket bolts, and then remove the rosette ring (956). Applying position of Loctite More than three threads Loctite 243 Holes Bosses Hexagon socket bolts...
Page 44 Open the outside panel assembly. Disconnect the flexible board from the connector (CN9101) on the DPR-394 board, and then remove the outside panel assembly. Outside panel assembly CN9101 DPR-394 board Flexible board Arrangement of cables Fine-wire coaxial cable Harness Hook Hooks Outside panel assembly Fine-wire coaxial cable...
Page 45: Board
2-3-1. ASW-69 Board Preparation Remove the bottom harness guard. (Refer to “2-2. Bottom Harness Guard”.) Remove the outside panel assembly. (Refer to “2-3. Outside Panel Assembly”.) Procedure Disconnect the flexible flat cable from the connector (CN1002) on the ASW-69 board. Remove the two precision screws, and then remove the ASW-69 board.
Page 46: Board
2-3-2. AXM-62 Board Preparation Remove the bottom harness guard. (Refer to “2-2. Bottom Harness Guard”.) Remove the outside panel assembly. (Refer to “2-3. Outside Panel Assembly”.) Procedure Disconnect the fine-wire coaxial cable from the connector (CN201) on the VIO-38 board. Release the fine-wire coaxial cable from the four hooks of the XLR cabinet.
Page 47 Release the fine-wire coaxial cable from the four hooks. Disconnect the fine-wire coaxial cable from the connector (CN2005) on the AXM-62 board. XLR cabinet Tape Hooks CN2005 AXM-62 board Fine-wire coaxial cable Note • At the time of the installation, align the tape of the fine-wire coaxial cable with the position shown in the figure. •...
Page 48: Board
2-3-3. VIO-38 Board Preparation Remove the bottom harness guard. (Refer to “2-2. Bottom Harness Guard”.) Remove the outside panel assembly. (Refer to “2-3. Outside Panel Assembly”.) Remove the XLR assembly. (Refer to “2-3-2. AXM-62 Board”.) Procedure Disconnect the flexible flat cable from the connector (CN202) on the VIO-38 board. Remove the precision screw, and then remove the VIO-38 board.
Page 49: Board
2-3-4. JK-108 Board Preparation Remove the bottom harness guard. (Refer to “2-2. Bottom Harness Guard”.) Remove the outside panel assembly. (Refer to “2-3. Outside Panel Assembly”.) Remove the XLR assembly. (Refer to “2-3-2. AXM-62 Board”.) Procedure Disconnect the flexible flat cable from the connector (CN202) on the VIO-38 board. Remove the two precision screws, and then release the two holes of the JK-108 board from the two bosses.
Page 50: Board
2-3-5. VIF-78 Board Preparation Remove the bottom harness guard. (Refer to “2-2. Bottom Harness Guard”.) Remove the outside panel assembly. (Refer to “2-3. Outside Panel Assembly”.) Remove the XLR assembly. (Refer to “2-3-2. AXM-62 Board”.) Remove the JK-108 board. (Refer to “2-3-4. JK-108 Board”.) Procedure Remove the two precision screws, and then remove the VF connector plate.
Page 51: Inside Panel Assembly
2-4. Inside Panel Assembly Preparation Remove the bottom harness guard. (Refer to “2-2. Bottom Harness Guard”.) Remove the outside panel assembly. (Refer to “2-3. Outside Panel Assembly”.) Procedure Disconnect the fine-wire coaxial cable from the connector (CN9401) on the DPR-394 board. DPR-394 board Fine-wire coaxial cable CN9401...
Page 52 Remove the shoulder screw (M2 x 3.5), and then remove the HP lid. Open the media cover assembly, and then remove the five precision screws (P2 x 4). Remove the four hooks and the boss, and then remove the inside panel assembly. Remove in the following sequence: two hooks (a), boss, two hooks (b).
Page 53: Lithium Battery
2-4-1. Lithium Battery Preparation Remove the bottom harness guard. (Refer to “2-2. Bottom Harness Guard”.) Remove the outside panel assembly. (Refer to “2-3. Outside Panel Assembly”.) Remove the inside panel assembly. (Refer to “2-4. Inside Panel Assembly”.) Procedure Remove the lithium battery with a non-conductive stick. Lithium battery Hooks KSW-72 board...
Page 54: Board
2-4-2. SS-108 Board Preparation Remove the bottom harness guard. (Refer to “2-2. Bottom Harness Guard”.) Remove the outside panel assembly. (Refer to “2-3. Outside Panel Assembly”.) Remove the inside panel assembly. (Refer to “2-4. Inside Panel Assembly”.) Procedure Remove the three screws, and then remove the inside top plate. Hole Inside top plate Boss...
Page 55 Disconnect the harness from the connector (CN660) on the SS-108 board. Disconnect the flexible flat cable from the connector (CN704) on the SS-108 board. Remove the three screws, and then remove the REC plate and the SS-108 board. Disconnect the harness from the connector (CN703) on the SS-108 board. PTP2 x 5 Harness Arrangement of harness...
Page 56: Board, Sec-59 Board
2-4-3. TG-290 Board, SEC-59 Board Preparation Remove the bottom harness guard. (Refer to “2-2. Bottom Harness Guard”.) Remove the outside panel assembly. (Refer to “2-3. Outside Panel Assembly”.) Remove the inside panel assembly. (Refer to “2-4. Inside Panel Assembly”.) Remove the SS-108 board. (Refer to “2-4-2. SS-108 Board”.) Procedure Disconnect the flexible flat cable from the connector (CN004) on the VSW-82 board.
Page 57: Board
2-4-4. VSW-82 Board Preparation Remove the bottom harness guard. (Refer to “2-2. Bottom Harness Guard”.) Remove the outside panel assembly. (Refer to “2-3. Outside Panel Assembly”.) Remove the inside panel assembly. (Refer to “2-4. Inside Panel Assembly”.) Remove the SS-108 board. (Refer to “2-4-2. SS-108 Board”.) Remove the TG, SEC board assembly.
Page 58 Remove the VSW-82 board. Disconnect the flexible flat cable from the connector (CN001) on the VSW-82 board. Switches Flexible flat cable CN001 VSW-82 board Levers Note At the time of the installation, align the switches with the levers. Install the removed parts by reversing the steps of removal.
Page 59: Board
2-4-5. KSW-72 Board Preparation Remove the bottom harness guard. (Refer to “2-2. Bottom Harness Guard”.) Remove the outside panel assembly. (Refer to “2-3. Outside Panel Assembly”.) Remove the inside panel assembly. (Refer to “2-4. Inside Panel Assembly”.) Remove the lithium battery. (Refer to “2-4-1. Lithium Battery”.) Remove the SS-108 board.
Page 60 Disconnect the harness from the connector (CN8401) on the KSW-72 board. Release the harness and the flexible flat cable from the two hooks. Disconnect the four flexible flat cables from the connectors (CN8005, CN8007, CN8008, CN8402) on the KSW-72 board. Disconnect the flexible boards from the two connectors (CN8101, CN8103) on the KSW-72 board.
Page 61 10. Remove the eight screws, and then remove the inside rear plate. 11. Remove the KSW insulation sheet and the KSW-72 board. 12. Disconnect the fine-wire coaxial cable from the connector (CN8003) on the KSW-72 board. PTP2 x 5 Inside rear plate KSW insulation sheet Switches KSW-72 board...
Page 62: Terminal Assembly
2-5. Terminal Assembly Preparation Remove the bottom harness guard. (Refer to “2-2. Bottom Harness Guard”.) Remove the outside panel assembly. (Refer to “2-3. Outside Panel Assembly”.) Procedure Remove the two precision screws, and then remove the SDI harness shield. Disconnect the fine-wire coaxial cable from the connector (CN6001) on the SDI-127 board. Disconnect the fine-wire coaxial cable from the connector (CN5001) on the TC-118 board.
Page 63 Open the HDMI lid, and then remove the two precision screws (P1.7 x 5). Remove the two precision screws (P2 x 4), and then remove the terminal assembly in the direction of the arrow. Terminal assembly Precision screws (P2 x 4) Precision screws (P1.7 x 5) HDMI lid...
Page 64: Front Assembly
2-6. Front Assembly Preparation Remove the bottom harness guard. (Refer to “2-2. Bottom Harness Guard”.) Remove the outside panel assembly. (Refer to “2-3. Outside Panel Assembly”.) Remove the inside panel assembly. (Refer to “2-4. Inside Panel Assembly”.) Remove the terminal assembly. (Refer to “2-5. Terminal Assembly”.) Procedure Disconnect the coaxial cable from the connector (J7381) on the CT-289 board.
Page 65 Disconnect the fine-wire coaxial cables from the two connectors (CN201, CN202) on the DPR-394 board. Disconnect the flexible boards from the two connectors (CN101, CN9202) on the DPR-394 board. Disconnect the flexible flat cable from the connector (CN5402) on the LED-549 board. Remove the four screws, and then remove the front assembly.
Page 66: Board
2-7. DPR-394 Board Preparation Remove the bottom harness guard. (Refer to “2-2. Bottom Harness Guard”.) Remove the outside panel assembly. (Refer to “2-3. Outside Panel Assembly”.) Remove the inside panel assembly. (Refer to “2-4. Inside Panel Assembly”.) Remove the terminal assembly. (Refer to “2-5. Terminal Assembly”.) Remove the front assembly.
Page 67 Remove the six precision screws, and then remove the DPR shield plate assembly. Remove the two precision screws, and then remove the HDMI plate. DPR shield plate assembly Precision screws (P2 x 4) Precision screws (P2 x 4) HDMI plate Disconnect the fine-wire coaxial cables from the two connectors (CN7401, CN9002) on the DPR-394 board.
Page 68 Remove the three radiation sheets E11 T1 (25 x 25) and the two VC radiation sheets (M (913)). Radiation sheets E11 T1 (25 x 25) VC radiation sheets (M (913)) DPR-394 board Install the removed parts by reversing the steps of removal.
Page 69: Dc Fan
2-8. DC Fan Preparation Remove the bottom harness guard. (Refer to “2-2. Bottom Harness Guard”.) Remove the outside panel assembly. (Refer to “2-3. Outside Panel Assembly”.) Remove the inside panel assembly. (Refer to “2-4. Inside Panel Assembly”.) Procedure Disconnect the battery harness from the connector (CN1001) on the DD-55 board. Disconnect the fan harness from the connector (CN4001) on the RE-349 board.
Page 70 Remove the DC fan. DC fan Label Harness Remove the fan cushion from the DC fan. Label DC fan Harness Start position DC fan Fan cushion Fan cushion Note At the time of the installation, attach the fan cushion from the start position as shown in the figure. Install the removed parts by reversing the steps of removal.
Page 71: Media Assembly
2-9. Media Assembly Preparation Remove the bottom harness guard. (Refer to “2-2. Bottom Harness Guard”.) Remove the outside panel assembly. (Refer to “2-3. Outside Panel Assembly”.) Remove the inside panel assembly. (Refer to “2-4. Inside Panel Assembly”.) Remove the DC fan. (Refer to “2-8. DC Fan”.) Procedure Disconnect the fine-wire coaxial cable from the connector (CN7401) on the DPR-394 board.
Page 72: Board
2-9-1. SD-74 Board Preparation Remove the bottom harness guard. (Refer to “2-2. Bottom Harness Guard”.) Remove the inside panel assembly. (Refer to “2-4. Inside Panel Assembly”.) Remove the DC fan. (Refer to “2-8. DC Fan”.) Remove the media assembly. (Refer to “2-9. Media Assembly”.) Procedure Release the two fine-wire coaxial cables from the six hooks and the notch of the media cable clamper.
Page 73 Open the SD-74 board assembly. Disconnect the fine-wire coaxial cable from the hole of the media cable clamper. Hole Media cable clamper SD-74 board assembly Hole Fine-wire coaxial cable Bosses SD-74 board Hole Disconnect the fine-wire coaxial cable from the connector (CN002) on the SD-74 board. Remove the two precision screws, and then remove the SD-74 board.
Page 74: Board
2-9-2. EC-94 Board Preparation Remove the bottom harness guard. (Refer to “2-2. Bottom Harness Guard”.) Remove the inside panel assembly. (Refer to “2-4. Inside Panel Assembly”.) Remove the DC fan. (Refer to “2-8. DC Fan”.) Remove the media assembly. (Refer to “2-9. Media Assembly”.) Remove the SD-74 board assembly.
Page 75 Disconnect the fine-wire coaxial cable from the connector (CN901) on the EC-94 board. Remove the two gasket P (389) and the two media graphite cushions. EC-94 board CN901 Fine-wire coaxial cable Gasket P (389) Gasket P (389) Media graphite cushions Install the removed parts by reversing the steps of removal.
Page 76: Rear Assembly
2-10. Rear Assembly Preparation Remove the bottom harness guard. (Refer to “2-2. Bottom Harness Guard”.) Remove the outside panel assembly. (Refer to “2-3. Outside Panel Assembly”.) Remove the inside panel assembly. (Refer to “2-4. Inside Panel Assembly”.) Remove the terminal assembly. (Refer to “2-5. Terminal Assembly”.) Remove the front assembly.
Page 77 Disconnect the flexible flat cable from the connector (CN4201) on the LE-428 board. Disconnect the harness from the connector (CN101) on the DC-185 board. Remove the five precision screws, and then remove the rear assembly. Flexible flat cable Harness CN4201 LE-428 board Precision screws (P2 x 4)
Page 78: If-1377 Board, Dif-278 Board
2-11. IF-1377 Board, DIF-278 Board Preparation Remove the bottom harness guard. (Refer to “2-2. Bottom Harness Guard”.) Remove the outside panel assembly. (Refer to “2-3. Outside Panel Assembly”.) Remove the inside panel assembly. (Refer to “2-4. Inside Panel Assembly”.) Remove the terminal assembly. (Refer to “2-5. Terminal Assembly”.) Remove the front assembly.
Page 79 Remove the two precision screws, and then remove the power cover. Disconnect the harness from the connector (CN0155) on the DIF-278 board. Disconnect the flexible board from the connector (CN0150) on the DIF-278 board. Precision screws (P2 x 4) Power cover Harness CN0155 CN0150...
Page 80 10. Disconnect the flexible flat cable from the connector (CN0158) on the DIF-278 board. 11. Disconnect the fine-wire coaxial cable from the connector (CN0102) on the DIF-278 board. 12. Remove the DIF shield case. Note Be careful not to damage the board. 13.
Page 81: Board
2-12. DD-55 Board Preparation Remove the bottom harness guard. (Refer to “2-2. Bottom Harness Guard”.) Remove the outside panel assembly. (Refer to “2-3. Outside Panel Assembly”.) Remove the inside panel assembly. (Refer to “2-4. Inside Panel Assembly”.) Remove the terminal assembly. (Refer to “2-5. Terminal Assembly”.) Remove the front assembly.
Page 82: Board
2-13. RE-349 Board Preparation Remove the bottom harness guard. (Refer to “2-2. Bottom Harness Guard”.) Remove the outside panel assembly. (Refer to “2-3. Outside Panel Assembly”.) Remove the inside panel assembly. (Refer to “2-4. Inside Panel Assembly”.) Remove the terminal assembly. (Refer to “2-5. Terminal Assembly”.) Remove the front assembly.
Page 83: Handle
2-14. Handle 2-14-1. Handle Upper Cabinet Assembly Procedure Remove the seven precision screws, and then lift the handle upper cabinet assembly. Disconnect the flexible boards from the two connectors (CN3101, CN3002) on the HN-449 board. Precision screws (P2 x 4) Precision screws (P2 x 4) Handle upper cabinet assembly...
Page 84: Gp-1019 Board, Hn-449 Board
2-14-2. GP-1019 Board, HN-449 Board Preparation Remove the handle upper cabinet assembly. (Refer to “2-14-1. Handle Upper Cabinet Assembly”.) Procedure Disconnect the flexible board from the connector on the GP-1019 board. Remove the precision screw, and then remove the GP-1019 board. Precision screw (P2 x 4) GP-1019 board...
Page 85 Disconnect the flexible board from the two connectors (CN3001, CN3003) on the HN-449 board. Remove the four precision screws, and then remove the HN-449 board. Precision screws (P2 x 4) HN-449 board Flexible board CN3003 CN3001 Install the removed parts by reversing the steps of removal.
Page 86: Board
2-14-3. HC-54 Board Preparation Remove the handle upper cabinet assembly. (Refer to “2-14-1. Handle Upper Cabinet Assembly”.) Procedure Remove the screw (PTP2 x 5) and the two precision screws (P2 x 4), and then remove the handle bottom cover. Remove the HC-54 board from the handle bottom cover. Disconnect the flexible board from the connector (CN2402) on the HC-54 board.
Page 87: Vf Assembly
2-15. VF Assembly 2-15-1. PD-129 Board Procedure Detach the four panel blind sheets. Remove the six precision screws, and then remove the P cabinet. Panel blind sheets P cabinet Precision screws (P2 x 4) Precision screws (P2 x 4) Remove the four screws, and the remove the panel frame assembly. PTP2 x 5 Panel frame assembly...
Page 88 Disconnect the flexible flat cable from the connector (CN2003) on the PD-129 board. Disconnect the harness from the connector (CN2004) on the PD-129 board. Disconnect the flexible board from the two connectors (CN2002, CN2005) on the PD-129 board. Disconnect the connection cable from the connector (CN2001) on the PD-129 board, and then release it from the groove of the P bezel.
Page 89: Panel Module
2-15-2. Panel Module Preparation Remove the PD-129 board. (Refer to “2-15-1. PD-129 Board”.) Procedure Remove the two screws, and then remove the PR-340 board assembly and the panel mirror lever. PTP2 x 5 Panel mirror lever PR-340 board assembly Hole Remove the LCD retainer assembly.
Page 90 Remove the LCD spacer. Remove the panel module. LCD spacer Panel module Install the removed parts by reversing the steps of removal.
Page 91: Section 3 Error Code
Section 3 Error Code If a problem occurs during operation of the unit, an error code will appear in the view finder display. Check the details of the error code and respond accordingly. 3-1. Error Code List Error Description Check and Action code Check: ND unit, IC6501 (CR-53 board), IC2001 (DPR-394 board), and the peripheral E12-001...
Page 92 Error Description Check and Action code Temperature sensor alarm in the Check: IC0603 (HIF-80 board) in the XDCA-FX9, and the peripheral devices. E91-36C XDCA-FX9 Repair or replace: HIF-80 board. Communication error from IC2001 Check: IC2001, IC3501 (DPR-394 board), and the peripheral devices. E91-350 (DPR-394 board) to IC3501 (DPR-394 Repair or replace: DPR-394 board.
Page 93 Error Description Check and Action code Check: IC2001 (DPR-394 board), IC2001 (HIF-80 board) in the XDCA-FX9, and the E95-316 CRC error peripheral devices. Repair or replace: HIF-80 board, DPR-394 board. Communication error from IC0700 Check: IC0700, IC1000 (DIF-278 board), and the peripheral devices. E95-318 (DIF-278 board) to IC1000 (DIF-278 Repair or replace: DIF-278 board.
Page 94: Section 4 Service Menu
Section 4 Service Menu 4-1. Overview The unit is provided with the Service menu that is useful for maintenance and adjustment. The menu content is displayed on the viewfinder. The Service menu consists of the following menus. Menu Item Description Auto Black Balance Auto black balance adjustment Auto/manual RPN registration, deletion, and automatic detection...
Page 95: Description Of Service Menu
4-4. Description of SERVICE Menu 4-4-1. Auto Black Balance Menu The Auto Black Balance menu allows to adjust black balance automatically. 4-4-2. RPN Menu The RPN menu enables various operations such as automatic registration (APR) or manual registration, deletion and automatic detection of the RPN compensation point.
Page 96: Section 5 Spare Parts
Section 5 Spare Parts 5-1. Note on Repair Parts 1. 安全重要部品 1. Safety Related Components Warning ! 警告 ! 印のついた部品は安全性を維持するために重 Components marked ! are critical to safe operation. 要な部品です。したがって，交換する時は必ず Therefore, specified parts should be used in the case 指定の部品を使ってください。 of replacement. 2.
Page 97: Exploded Views
5-2. Exploded Views Overall-1 B3 x 8 B3 x 8 Part No. SP Description A-5012-247-A s BOB LID ASSY X-2188-877-5 s COLD SHOE KIT 2-630-005-31 s SCREW(M2),NEW TRUSTER,P2 3-069-286-04 s SHOE, ACCESSORY 3-288-615-03 s SPRING, SHOE 4-269-040-01 s HOOK, MEGEYAR 4-438-734-12 s SHOE CAP (875) 4-562-604-11 s BOLT(1/4-20 UNC),HOLE HEXAGON 4-579-745-01 s CLAMP (964), CABLE...
Page 98: Overall-2
Overall-2 HEXAGON SOCKET BOLT 2.6 x 6 W2.6 W2.6 W2.6 HEXAGON SOCKET HEXAGON SOCKET BOLT 3 x 8 BOLT 2.6 x 6 Part No. SP Description A-5012-205-A s ASSY, SHOULDER PAD X-5000-836-1 s ASSY, BOTTOM PLATE 2-630-005-31 s SCREW(M2),NEW TRUSTER,P2 4-587-420-01 s LID, BM 4-684-602-01 s RING (956), ROSSETTE 5-008-498-01 s PLATE, ROSETTE RING...
Page 99: Terminal Assembly
Terminal Assembly BTP2.6 x 10 Part No. SP Description A-5002-378-A s CT-289 MOUNT A-5002-379-A s WF-12 MOUNT A-5002-382-A s TC-118 MOUNT A-5002-383-A s SDI-127 MOUNT 1-002-299-11 s HARNESS(SDI-DPR-20P) 1-002-296-11 s HARNESS(TC-DPR-30P) 1-002-362-11 s CABLE, FLEXIBLE FLAT (24 CORE) 1-846-474-21 s CABLE, COAXIAL (85MM) 2-630-005-31 s SCREW(M2),NEW TRUSTER,P2 2-635-562-41 s SCREW(M1.7) 3-080-204-21 s SCREW, TAPPING, P2...
Page 100: Dc Fan
DC Fan Part No. SP Description 1-002-413-11 s DC FAN (SUPERFLO) 50 SQ X 15 2-630-005-31 s SCREW(M2),NEW TRUSTER,P2 3-965-077-11 s SCREW, SPECIAL (M2) 4-559-446-02 s SCREW, +P2.6X5 NEW TRUSTER 5-008-646-01 s HOLDER, FAN 5-008-741-01 s LID, HP 5-008-777-01 s CUSHION, FAN 5-008-778-01 s CUSHION, INTAKE DUCT...
Page 101: Dpr Board
DPR Board To VIO-38 board Part No. SP Description A-5002-391-A s LED-549 MOUNT A-5012-090-A s DPR-394 COMPL X-5000-834-1 s ASSY, HEATSINK DPR X-5000-835-1 s ASSY, HEATSINK FRONT 1-002-295-11 s HARNESS(DIF-DPR-40P 1-002-407-11 s PWB, FP-316 FLEXIBLE 2-630-005-31 s SCREW(M2),NEW TRUSTER,P2 4-544-482-01 s SHEET (M (913)), VC RADIATION 5-008-504-01 s PLATE, HDMI 5-008-772-01 s CUSHON, CENTER DUCT 5-008-774-01 s CUSHION, HEATSINK FRONT...
Page 102: Dd Board, Re Board
DD Board, RE Board Part No. SP Description A-2228-388-A s MOUNT, RE-349 A-5002-387-A s IF-1377 MOUNT A-5012-091-A s DIF-278 COMPL A-5012-092-A s DD-55 COMPL 1-002-305-11 s SUB HARNESS(RE-DIF) 1-002-306-11 s SUB HARNESS(RE-DC) 1-002-365-11 s CABLE, FLEXIBLE FLAT (6 CORE) 1-002-408-11 s PWB, FP-317 FLEXIBLE 1-002-409-11 s PWB, FP-318 FLEXIBLE 2-630-005-31 s SCREW(M2),NEW TRUSTER,P2 5-008-500-01 s SHIELD CASE DIF...
Page 103: Outside Panel
Outside Panel W2.6 BTP2.6 x10 BTP2.6 x10 BTP2.6 x10 W2.6...
Page 104 Part No. SP Description A-5002-380-A s AXM-62 MOUNT A-5002-381-A s ASW-69 MOUNT A-5002-384-A s JK-108 MOUNT A-5002-385-A s VIF-78 MOUNT A-5012-093-A s VIO-38 COMPL 1-002-302-11 s HARNESS(VIF-VIO-40P) 1-002-303-11 s HARNESS(AXM-DIF-30P) 1-002-363-11 s CABLE, FLEXIBLE FLAT (18 CORE) 1-002-364-11 s CABLE, FLEXIBLE FLAT (12 CORE) 1-542-979-11 s MICROPHONE, ELECTRET CAP 2-630-005-31 s SCREW(M2),NEW TRUSTER,P2 4-535-706-11 s ESD GASKET...
Page 105: Inside Panel-1
Inside Panel-1 Part No. SP Description A-5002-397-A s SEC-59 MOUNT A-5002-400-A s TG-290 MOUNT A-5002-403-A s SS-108 MOUNT 1-002-307-11 s SUB HARNESS(LED-SS) 1-002-365-11 s CABLE, FLEXIBLE FLAT (6 CORE) 1-002-414-11 s SWITCH BLOCK,CONTROL (ID95700) 1-849-295-11 s CABLE, FLEXIBLE FLAT 20P 1-858-706-23 s LOUDSPEAKER (1.8CM) 2-178-550-01 s HOLDER, SPEAKER 2-630-005-31 s SCREW(M2),NEW TRUSTER,P2...
Page 106: Inside Panel-2
Inside Panel-2 Part No. SP Description A-5002-395-A s GCN-20 MOUNT A-5002-398-A s FU-84 MOUNT A-5002-399-A s VSW-82 MOUNT A-5002-402-A s SW-1757 MOUNT 1-002-365-11 s CABLE, FLEXIBLE FLAT (6 CORE) 1-002-368-11 s CABLE, FLEXIBLE FLAT (30 CORE) 1-002-369-11 s CABLE, FLEXIBLE FLAT (10 CORE) 3-080-206-21 s SCREW, TAPPING, P2 5-008-519-01 s PLATE, MULTI DIAL 5-008-520-01 s PLATE, INSIDE FRONT...
Page 107: Inside Panel-3
Inside Panel-3 To DIF-278 board To DPR-394 board Part No. SP Description A-5002-404-A s KSW-72 MOUNT A-5002-406-A s HP-181 MOUNT A-5002-408-A s PM-28 MOUNT 1-002-301-11 s HARNESS(KSW-DPR-48P) 1-002-365-11 s CABLE, FLEXIBLE FLAT (6 CORE) 1-002-367-11 s CABLE, FLEXIBLE FLAT (16 CORE) 1-002-371-11 s CABLE, FLEXIBLE FLAT (8 CORE) 1-002-415-11 s SWITCH BLOCK CONTROL(AU95700) 1-471-573-21 s MAGNET...
Page 108: Inside Panel-4
Inside Panel-4 1002 1028 1007 1009 1012 1001 1022 1017 1019 1025 1008 1023 1010 1003 1004 1006 1026 1014 1024 1016 1015 1029 1021 1020 1026 1027 1011 1018 1005 1013 Part No. SP Description 1001 X-5000-840-1 s ASSY, MEDIA COVER 1002 X-5000-841-1 s ASSY, AUDIO LID 1003...
Page 109: Front
Front 1115 To LED-549 board 1103 1113 1109 1108 1107 1112 To DPR-394 board 1106 1110 1104 1111 1105 1114 1102 1101 Part No. SP Description 1101 A-5012-161-A s F BLOCK ASSY 1102 A-5015-926-A s SERVICE, MOUNT_EX_RING ASSY 1103 1-002-373-11 s CABLE, FLEXIBLE FLAT (6 CORE) 1104 1-002-406-11 s PWB, FP-315 FLEXIBLE 1105...
Page 110: Media Assembly
Media Assembly 1209 1202 1205 1215 1214 1204 1213 1210 1207 1210 1203 1208 To DIF-278 board To DPR-394 board 1216 To DIF-278 board 1218 1206 1201 1210 1212 1211 1210 1211 1217 Part No. SP Description 1201 A-2228-390-A s MOUNT, EC-94 1202 A-5002-394-A s SD-74 MOUNT 1203...
Page 111: Rear
Rear 1318 1317 1318 1304 1308 1315 1304 1313 1301 1309 1302 1304 1311 1320 1306 1306 1304 1319 1314 1310 1304 1316 1312 1303 To RE-349 board 1307 1305 1304 Part No. SP Description 1301 A-2228-389-A s MOUNT, DC-185 1302 A-5002-392-A s LE-428 MOUNT 1303...
Page 112: Handle-1
Handle-1 1401 1420 1423 1402 1410 1414 P2.6 x 8 1420 1403 1413 1409 1405 1423 1416 1411 1422 1412 1418 1415 1421 1419 1422 1409 1417 1404 1414 1410 1407 1408 1409 1406 1414 HEXAGON SOCKET 1410 BOLT 3 x 8 Part No.
Page 113: Handle-2
Handle-2 1507 1509 1517 1510 1504 1508 1501 1515 1504 1511 1505 1504 1506 1514 1503 1502 1512 1516 1506 1513 1505 Part No. SP Description 1501 A-5002-389-A s FP-310 MOUNT 1502 X-5000-842-1 s ASSY, HANDLE UPPER CAB 1503 1-002-416-11 s SWITCH BLOCK, CONTROL(GZ95700) 1504 2-630-005-31 s SCREW(M2),NEW TRUSTER,P2 1505...
Page 114: Handle-3
Handle-3 1606 1601 1606 1610 1608 1605 1604 1606 1607 1607 1603 1611 1612 1602 1609 1612 1614 1613 1606 Part No. SP Description 1601 A-2059-048-A s GP-1019COMPLE(SN11) 1602 A-5002-388-A s HC-54 MOUNT 1603 A-5002-390-A s HN-449 MOUNT 1604 1-002-411-11 s PWB, FP-320 FLEXIBLE 1605 1-893-019-11 s FP-2231 FLEXIBLE PWB 1606...
Page 115: Vf Hood
VF Hood 1703 1701 1704 1705 1706 1705 1708 1709 1707 1705 1702 Part No. SP Description 1701 A-5012-168-A s EYEPIECE ASSY 1702 X-2595-492-1 s LOUPE ASSY, VF 1703 X-5000-846-2 s ASSY, VF FRONT 1704 X-5000-847-2 s ASSY, VF REAR 1705 3-080-206-21 s SCREW, TAPPING, P2 1706...
Page 116: Vf Block
VF Block 1827 1815 1814 1817 1813 1834 1819 1829 1805 1816 P2.6 x 4.0 1832 1822 1810 1811 1830 1811 1808 1824 1831 1820 1801 1811 1828 1825 1807 1802 1818 1812 1810 1823 1810 1821 1811 1806 1803 1810 1810 1804...
Page 117 Part No. SP Description 1801 A-5002-407-A s PD-129 MOUNT 1802 A-5002-409-A s PSW-110 MOUNT 1803 A-5002-410-A s PR-340 MOUNT 1804 A-5012-166-A s VF BLOCK ASSY 1805 X-2318-442-2 s HINGE ASSY 1806 1-002-308-11 s SUB HARNESS(PD-PR) 1807 1-002-365-11 s CABLE, FLEXIBLE FLAT (6 CORE) 1808 1-002-437-11 s PANEL MODULE(ED035IC-05A) 1809...
Page 118: Grip-1
Grip-1 1903 1911 1914 1902 1906 P2.6 x 5 1910 1909 1907 1910 1913 1901 1911 1908 1905 1912 1905 HEXAGON SOCKET BOLT 2.6 x 6 1904 Part No. SP Description 1901 A-2182-624-C s SERVICE, ARM NUT 1902 A-2182-628-B s SERVICE, ARM KNOB SHAFT (S) 1903 A-2182-629-B s SERVICE, ARM KNOB SHAFT (L) 1904...
Page 119: Grip-2
Grip-2 2005 2023 2005 2024 2001 2021 2012 2016 2008 2015 2005 2005 2019 2017 2007 2005 2022 2024 2005 2003 2014 2020 2005 2002 2018 2005 2005 2011 2025 2004 2013 2009 P2.6 x 5 2006 2010 2005 Part No. SP Description 2001 A-5015-921-A s GRIP ASSY...
Page 120: Grip-3
Grip-3 2109 2123 2126 2106 2102 2121 2113 2112 2104 2122 2111 2105 2110 2116 2110 2110 2115 2110 2101 2111 2110 2119 2110 2120 2103 2107 2108 2114 2110 2124 2117 2110 2125 2125 2118 2110 2111...
Page 121 Part No. SP Description 2101 A-5002-412-A s UC-2 MOUNT 2102 A-5002-413-A s FP-311 MOUNT 2103 A-5012-094-A s UIF-16 COMPL 2104 A-5015-923-A s SERVICE, PIN, ROTATION LOCK 2105 5-008-727-01 s CASE, LOCK PIN 2106 X-2590-703-4 s DIAL ASSY (786), CONT 2107 1-002-365-11 s CABLE, FLEXIBLE FLAT (6 CORE) 2108 1-005-081-11 s CURL CABLE (MULTI)
Page 122: Supplied Accessories
5-3. Supplied Accessories Q'ty Part No. SP Description 1-493-482-31 s AC ADAPTOR (60W) 1-849-254-31 s CORD SET, POWER-SUPPLY [For J] 1-846-089-31 s CORD SET, POWER-SUPPLY [For J] 1-836-110-11 s CORD SET, POWER-SUPPLY [For J] 1-846-090-52 s CORD SET, POWER-SUPPLY [For UC] 1-846-425-33 s CORD SET, POWER-SUPPLY [For UC] 1-846-428-34 s CORD SET, POWER-SUPPLY [For CEE] 1-837-426-55 s CORD SET, POWER-SUPPLY [For CEE]...
Page 123: Section 6 Diagrams
Section 6 Diagrams Overall Overall (1/3) B I-37 1 D P R -394 (1/3) IC 6300 IC 501,IC 701 IC 1001 IC 1201-IC 1204 LE O _M IP ID P H Y _0_T X C KP /T X C K N LE O _M IP ID P H Y _0_T X D P 0-3 IC 6011 D D R 4...
Page 124 Overall (2/3) W F -12 C T -28 9 D IF -278 (2/3) LE -42 8 A U 95700 CH 1 D P R -394 (2/3) C P 7330 IC 6000(2/3) (KY )2(AS T )_A U V R _ (AS T _R O SE )_ D 4201 D 4202 C H 1/C H 2...
Page 125 Overall (3/3) D P R -394 (3/3) V IO -38 V IF -78 P D -12 9 IC 2205 + 5.0V _P M B L_H /L (V IN E )2(LC D )_P W M R E G (R O SE )2(LC D )_R 2-R 9 (R O SE )2(LC D )_G 2-G 9 IC 2251 C LK _PA N E L+ /-,...
Page 126: Frame Wiring
Frame Wiring MULTI GRIP INTERFACE SHOE JK-108 UIF-16 FP-311 FP-310 GZ95700 GP-1019 ASW-69 AXM-62 LE-428 PSW-110 PR-340 CN001 ASSIGN DIAL S001 CN2001 D4201 D4202 S001 S002 S003 S001 S9001 FLEXIBLE FLAT AUDIO INPUT1 J9001 CN9002 CN2001 CN2004 UM CABLE CONTROL SWITCH ANTENNA PH001 PH002...
Page 127: Revision History
Revision History Date History Contents ― 2019. 12 1st Edition 9-932-720-01...
Page 128 商標についてこのマニュアルに記載されている商標および登録商標は下記のとおりです。 HDMI，HDMI High-Definition Multimedia Interface および HDMI ロゴは，HDMI Licensing LLC の商標もしくは米国およびそ • の他の国における登録商標です。その他，記載されているシステム名，商品名は，一般にそれぞれの開発メーカーの登録商標あるいは商標です。 Trademarks Trademarks and registered trademarks described in this manual are as follows. • The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
Page 129 PXW-FX9V (UC) PXW-FX9V (J) PXW-FX9V (CN1) PXW-FX9V (CEE) PXW-FX9VK (UC) PXW-FX9VK (J) PXW-FX9VK (CN1) PXW-FX9VK (CEE) PXW-FX9T (UC) PXW-FX9T (CEE) Printed in Japan PXW-FX9TK (CEE) J,E 2019. 12 08 Sony Corporation 9-932-720-01 © 2019...
