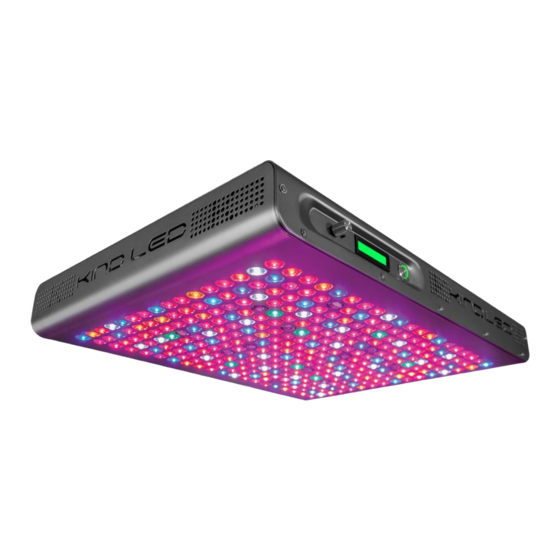

Kind LED Grow Lights K5 Series Instructions Manual

Instructions for the K5 Series LED Light
Thank you for purchasing the best, most complete spectrum grow light the industry has ever seen. The K5
series LED grow lights are comprised of a high powered yet efficient mix of 3 and 5 Watt Light Emitting Diodes
featuring a proprietary intensified spectrum designed for flowering large yields.
This revolutionary series of LED grow lights will produce the biggest and best yields, while consuming
approximately half the electricity of its HID counterpart and producing virtually no heat. Your Kind LED Grow
Light will cultivate record breaking yields, both in quantity and quality, while running quieter, cooler, and more
efficiently than any other grow light. Guaranteed.
Specifications
Housing Size
Diode Count
Actual Power Draw
LED Type
Operating Frequency
Current Input
Life Span
Setting up your KIND LED fixture-
1. The included hanging hardware is easy to install and will require no tools to do so. Simply attach the
clips on the ends of the wire hangers to each of the four gold hanging anchors on top of the light.
2. IMPORTANT: Insert the power cord into the top of your KIND light first and then into a properly
grounded power receptacle. Please make sure that all power requirements are considered if running
multiple lights on one circuit.
3. Your light is now ready to be turned on via the green switch on the side of the light.
4. Certain diodes on your light emit Infrared light that is not visible to the human eye. These diodes
appear to be off. Do not be alarmed as these diodes are in fact on and doing their job.
5. Certain diodes on your light emit UV light that appears dim to the human eye. They emit a dull blue
light and are also working just fine.
6. Your light should be positioned above the plant canopy at a distance that creates your ideal coverage
area. The further away from the canopy the light is positioned, the bigger the coverage area but also
lesser the lights intensity. The closer to the canopy the light is positioned, the smaller the coverage
area but greater the lights intensity will be. It is recommended that you always stay at least 12" above
the canopy.
7. Please refer to the 'K5 Functions and Remote Control' guide for details on the digital functions of your
light and remote control.
SOME WORDS OF CAUTION: Your KIND LED grow light is not waterproof. Please make sure you avoid
splashing any water on your light. When on, please do not hit or bump your LED light as this can cause
damage. Avoid staring directly at the LED diodes when the light is on. Please only use components from the
original manufacturer.
XL750
23"x 17.3"x 3"
208pcs
430 watts
Single 3w and 5w Chips
50/60 Hz
640ma
50,000 Hours
XL1000
26.3"x 19.5"x 3"
320pcs
650 watts
Single 3w and 5w Chips
50/60 Hz
640ma
50,000 Hours
