OSF TOUCH 310.000.0700 Installation And Operation Manual

External smart touch control panel (flush-mounted)

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Installation and Operation Manual

External smart touch control panel (flush-mounted)

The flush-mounted

-controls

Filter-, backwash control EUROMATIK.net, PC-40.net, PC-45 exclusiv.

Dosing control WATERFRIEND MRD-1, MRD-2 or MRD-3.

RGB Lighting controller Color-Control.NET with 3 Attractions

Attraction control for 6 attractions and «Attraktion-control.plus».

Pool-cover controller Cover-control.plus

Steamgenerator Silver-Steam, as of 2015

Art. No. 310.000.0700

-control panel enables the remote control of important functions of the following

Technical data

Dimensions:

Operating voltage:

max. cable length:

Protection class:

Function

195mm x 175mm x 30mm

12V Safety extra-low voltage

50m

IP 65

Table of Contents

Need help?

Do you have a question about the TOUCH 310.000.0700 and is the answer not in the manual?

Questions and answers

Summary of Contents for OSF TOUCH 310.000.0700

Page 1: Function

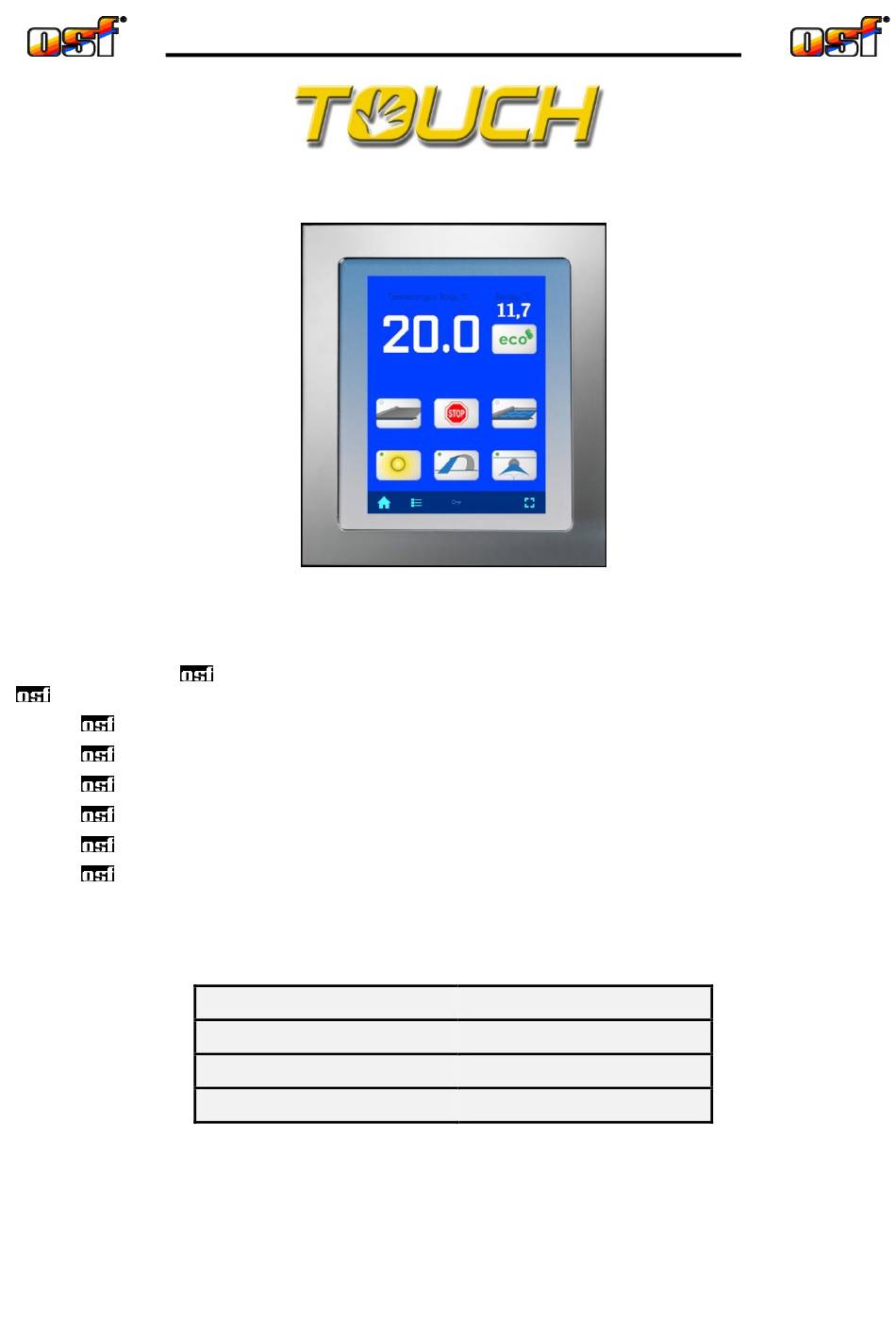

Installation and Operation Manual External smart touch control panel (flush-mounted) Art. No. 310.000.0700 Function The flush-mounted -control panel enables the remote control of important functions of the following -controls Filter-, backwash control EUROMATIK.net, PC-40.net, PC-45 exclusiv. Dosing control WATERFRIEND MRD-1, MRD-2 or MRD-3. RGB Lighting controller Color-Control.NET with 3 Attractions Attraction control for 6 attractions and «Attraktion-control.plus».
Page 2: Table Of Contents
Installation of the control panel in the tile frame ....................3 Electrical Connection ............................4 Low-voltage cables ............................4 Wiring diagrams ..............................4 Connection of devices via the digital data bus „osf bus“ ................4 Connection with EUROMATIK.net ........................4 Connection without EUROMATIK.net ......................5 LAN ...................................6 Connecting devices via LAN .........................6...
Page 3: Installation Site
Operating manual external touch control panel (Smart) Page: 3 of 14 Installation site The external control panel includes, among other things, buttons for operating the swimming pool cover. For this reason, the external control panel may only be installed in a location that allows an unrestricted view of the entire swimming pool.
Page 4: Electrical Connection
Connection of devices via the digital data bus „osf bus“ Devices connected via the osf bus communicate automatically with the control panel. Below is a list of the devices that are connected via the osf bus data bus: Euromatik.net, PC-40.net, Attraction-Control.net, Color- Control.net, all Waterfriend MRD dosing stations and the Silver- Steam.net steam generator.
Page 5: Connection Without Euromatik.net
If no EUROMATIK.net is available, the power supply for the touch control panel can be provided via an additional external power supply unit (Art. No. 330.001.2000). Waterfriend MRD Color-Control.net external touch external power supply Attraction-Control.net operating panel Silver-Steam.net 12V GND D+ Data+ Data- D+ D- D+ D- D+ D- mains twisted pair osf-Bus 230V 50Hz 12V. supply...
Page 6: Lan
Operating manual external touch control panel (Smart) Page: 6 of 14 The external smart touch control panel has a LAN connection (Ethernet, RJ45). Communication with OSF devices such as PC-45 exclusive, Cover-Control-Plus and Attraction-Control-Plus takes place exclusively via the LAN network. To communicate with these devices, all controllers must be connected to the same local network.
Page 7: Overview
All connected devices are displayed on this screen. (See the picture on the previous page). The button on this page searches for and queries all connected devices via the osf bus. The survey is carried out automatically every few minutes.
Page 8: Screen Lock Settings
Add OSF device (LAN connection) In this menu, the selected device can be connected to the control panel via LAN. To connect two devices, make sure that both devices are online.
Page 9: Service Functions
The factory LAN settings of the smart touch device enable plug-and-play remote control. If necessary, you can set the IP address manually and prevent the device from communicating with the OSF communication server. (For details, see "Internet Connection" section.) Access to change settings via LAN is restricted by a PIN code, which can be viewed and changed here.
Page 10: Manual Operation
Operating manual external touch control panel (Smart) Page: 10 of 14 there is no person in the swimming pool and that moving the swimming pool cover does not result in a dangerous situation. Manual operation In this menu it is possible to switch on the filter pump manually outside of the filter cycles and to start the backwashing manually.
Page 11: Dosing Station Waterfriend
Operating manual external touch control panel (Smart) Page: 11 of 14 Dosing station WATERFRIEND As an example, the screen of the MRD-3 dosing system is shown below. The screens for the dosing systems MRD-1 and MRD-2 look similar with the display of the corresponding parameters. The control parameters of the dosing station are protected against inadvertent adjustment.
Page 12: Configuration Of Attractions
Operating manual external touch control panel (Smart) Page: 12 of 14 Configuration of attractions Here you can determine the presence of the attraction. Attractions that are de- selected here will not be displayed on the control and settings screens. Assign a name to the attraction by selecting an image for it.
Page 13: Attraction Controller Attraktion-Control.plus
Operating manual external touch control panel (Smart) Page: 13 of 14 Via the display size menu, you can select the appearance of the PC-45 exclusively on the main screen of the control panel. Attraction controller Attraktion-control.plus The version number and the IP address of the connected device are displayed in the top line of the screen. The minus button removes a device from the list of available devices.
Page 14 Operating manual external touch control panel (Smart) Page: 14 of 14 Further information can be found on the Internet at the following address: https://osf.de/download/documents/documents.php?device=smart-Touch We wish you much joy and relaxation in your swimming pool. Subject to changes! Januar 21...
