Summary of Contents for EbV heatcon! EM 101

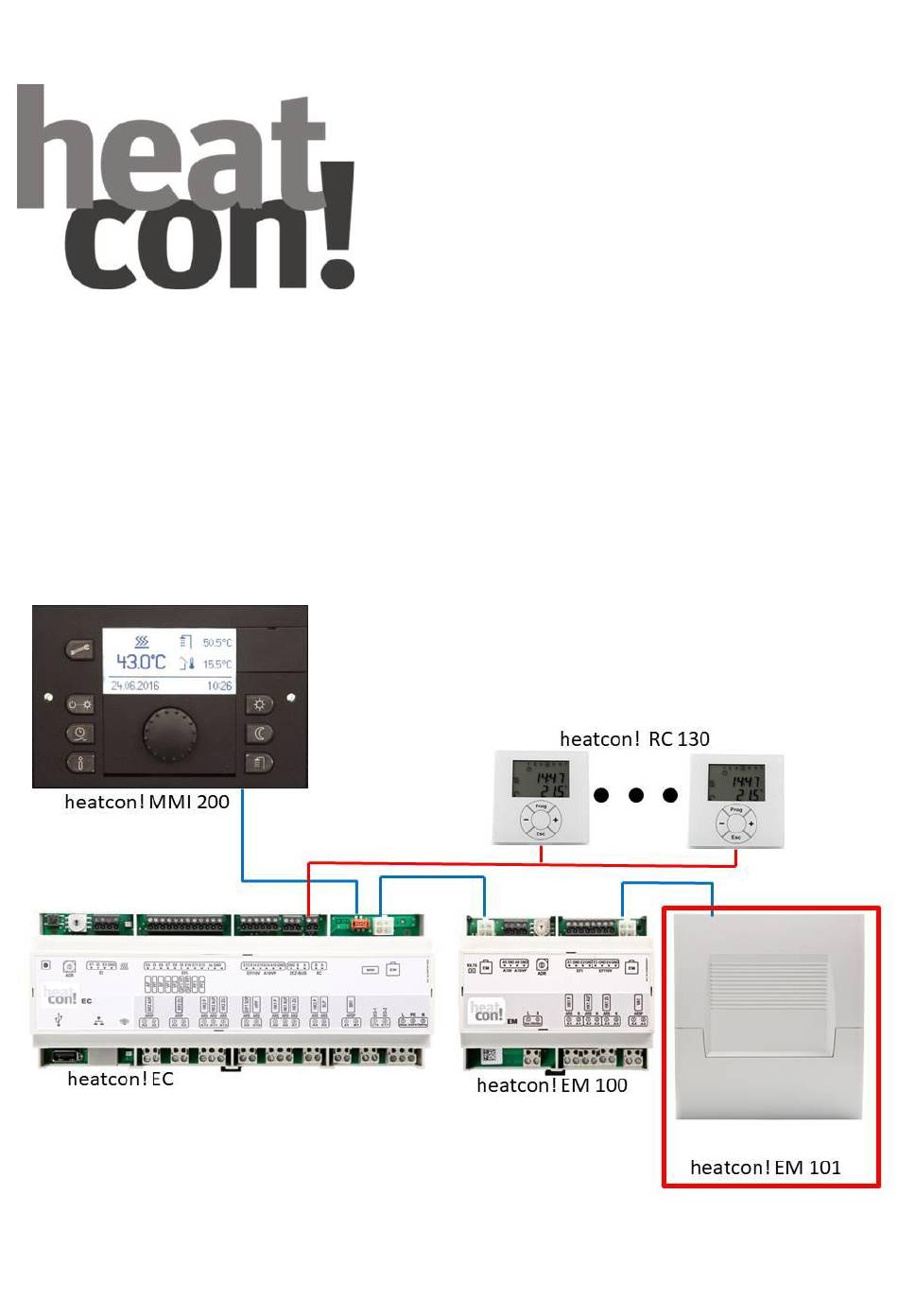

- Page 1 Short instruction Extension module heatcon! EM 101 0450000605-1915 Short instruction Extension module heatcon! EM 101...
- Page 2 EN Syfety instructions WARNING Danger due to live parts. Some components are electrically live. Contact with live parts can result in an electric shock, burns or even death. Before working on the electrical system, observe the following points: Switch the system to a zero volts state. ...
- Page 3 2 x sensor pulse input EFI • 2 x sensor pulse 0…10V input EFI 10V • 2 x output 0..10V-PWM A10VP • 2 x EbV – device bus Standards DIN EN 60730 Dimensions 145,5 x161 x 48 mm (Länge x Breite x Tiefe) Weight...
- Page 4 If unauthorised parts are used correct functioning is not assured. Use spare parts authorised by customer service. EN– Declaration of Conformity EbV Elektronikbau- und Vertriebs-GmbH assures that the product is produced according to valid EU regulations. A complete version of the Declaration of Conformity can be found in the installation manual at https://ebv-gmbh.eu/downloads/ Copyright ...
